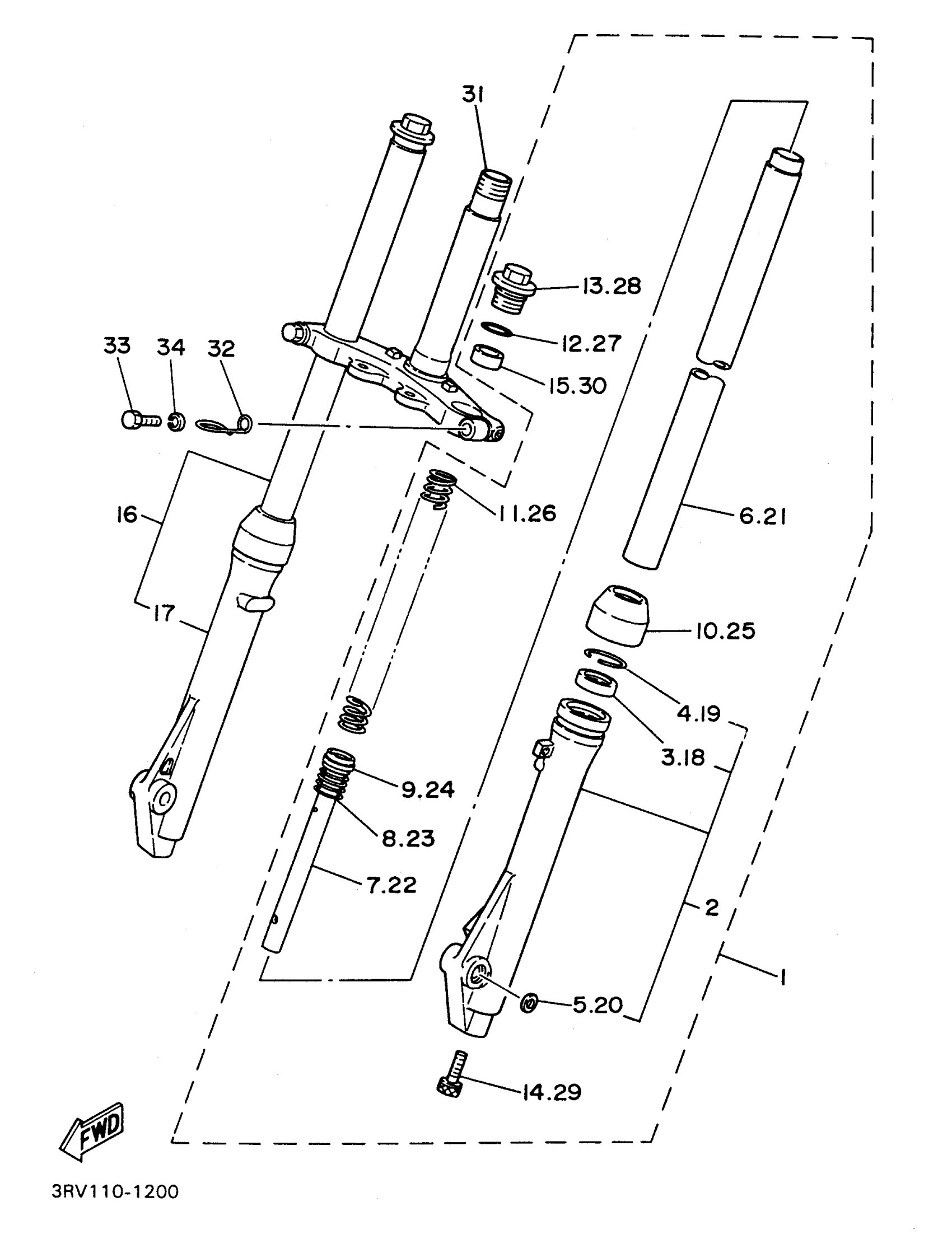

Yamaha PW80J (Y-ZINGER) 3RVA 1997 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASY L

99999-03235-00

Unavailable

2

. TUBE, OUTER (LEFT)

3R0-23126-00-35

Unavailable

3

OIL SEAL

1RY-23145-00-00

$32.99

4

CLIP, OIL SEAL

3M7-23156-00-00

$7.99

5

.. WASHER, SPECIAL

3R0-23392-00-00

Unavailable

6

INNER TUBE COMP. 1

21W-23110-00-00

Unavailable

7

CYLINDER COMP., FRONT FORK

3R0-23170-00-00

Unavailable

8

SPRING, REBOUND

2J5-23151-00-00

$7.99

9

RING, PISTON

2J5-23157-00-00

$7.99

10

SEAL, DUST

3M7-23144-00-00

$19.99

11

SPRING, FRONT FORK

21W-23141-00-00

$29.99

12

O-RING(36Y)

93210-17570-00

$7.49

13

BOLT, CAP

3M7-23111-01-00

Unavailable

14

BOLT

3M7-23181-00-00

$8.99

15

BOLT, INNER TUBE

3M7-23142-00-00

$15.49

16

FRONT FORK ASY R

99999-03236-00

Unavailable

17

. TUBE, OUTER (RIGHT)

3R0-23136-00-35

Unavailable

18

OIL SEAL

1RY-23145-00-00

$32.99

19

CLIP, OIL SEAL

3M7-23156-00-00

$7.99

20

.. WASHER, SPECIAL

3R0-23392-00-00

Unavailable

21

INNER TUBE COMP. 1

21W-23110-00-00

Unavailable

22

CYLINDER COMP., FRONT FORK

3R0-23170-00-00

Unavailable

23

SPRING, REBOUND

2J5-23151-00-00

$7.99

24

RING, PISTON

2J5-23157-00-00

$7.99

25

SEAL, DUST

3M7-23144-00-00

$19.99

26

SPRING, FRONT FORK

21W-23141-00-00

$29.99

27

O-RING(36Y)

93210-17570-00

$7.49

28

BOLT, CAP

3M7-23111-01-00

Unavailable

29

BOLT

3M7-23181-00-00

$8.99

30

BOLT, INNER TUBE

3M7-23142-00-00

$15.49

31

UNDER BRACKET COMP.

5HN-23340-00-00

Unavailable

32

HOLDER, CABLE 1

3R0-23318-00-00

Unavailable

33

BOLT

451-23346-01-00

Unavailable

34

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable
