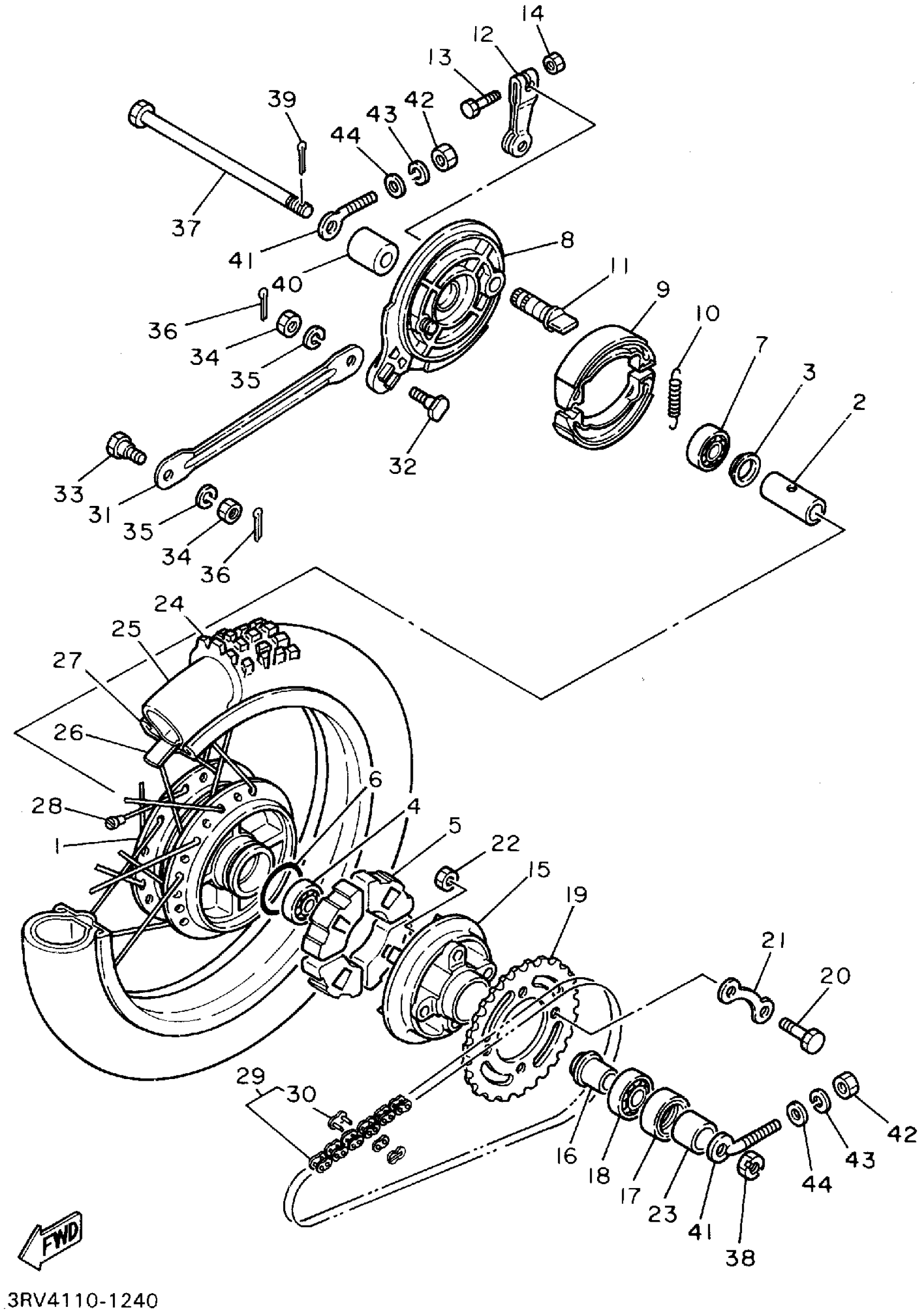

Yamaha PW80G (Y-ZINGER) 1995 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

21W-25311-00-98

Unavailable

2

SPACER

90560-12145-00

$20.99

3

FLANGE, SPACER

109-25315-00-00

$7.99

4

BEARING

93306-30102-00

$39.99

5

DAMPER, CLUTCH

304-25364-01-00

$27.99

6

O-RING (102)

93210-41041-00

$7.49

7

BEARING

93306-30102-00

$39.99

8

PLATE, BRAKE SHOE

1M3-25321-02-98

Unavailable

9

BRAKE SHOE KIT

4BE-W253E-00-00

$21.99

10

SPRING, TENSION

90506-15260-00

$8.49

11

CAMSHAFT

4GL-25351-00-00

$68.99

12

LEVER, CAM SHAFT

538-25355-00-00

$38.99

13

BOLT, HEXAGON (538)

90101-06278-00

$2.17

14

NUT(6TA)

95317-06600-00

$3.55

15

CLUTCH, HUB

296-25366-01-33

$68.99

16

AXLE, SPROCKET

21W-25387-00-00

Unavailable

17

OIL SEAL (30X42X8-102)

93106-30004-00

Unavailable

18

BEARING(3BN)

93306-00438-00

Unavailable

19

SPROCKET, DRIVEN (32T)

4BC-25432-50-00

Unavailable

20

BOLT(1AJ)

90101-08672-00

Unavailable

21

WASHER

4AW-25412-00-00

Unavailable

22

NUT(3KX)

90179-08639-00

Unavailable

23

COLLAR (21W)

90387-207G3-00

Unavailable

24

TIRE

94130-121A7-00

Unavailable

25

TUBE (17J)

94230-12208-00

Unavailable

26

BAND, RIM (3R0)

94330-12100-00

Unavailable

27

RIM (1.60-12)

94416-12002-00

Unavailable

28

SPOKE SET, REAR

21W-25304-00-00

Unavailable

29

CHAIN, DRIVE

9Y580-52083-00

Unavailable

30

JOINT, CHAIN (29A)

94680-52001-00

Unavailable

31

BAR, TENSION

21W-25371-00-00

Unavailable

32

BOLT 1022537300

90109-08183-00

Unavailable

33

BOLT (183-25378-00)

90109-08368-00

Unavailable

34

NUT, HEXAGON SMALL

95317-08700-00

Unavailable

35

WASHER(JN5)

92907-08100-00

Unavailable

36

PIN, COTTER

91490-20025-00

Unavailable

37

AXLE, WHEEL

367-25381-01-00

Unavailable

38

NUT CASTLE(481)

90171-12005-00

Unavailable

39

PIN, COTTER

91490-30030-00

Unavailable

40

COLLAR 102253830000

90387-12412-00

Unavailable

41

PULLER, CHAIN

3AC-2538G-10-00

Unavailable

42

NUT(6TA)

95317-06600-00

$3.55

43

WASHER, SPRING

92907-06100-00

Unavailable

44

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable
