1995 Yamaha Y-Zinger (PW80G) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1995 Yamaha Y-Zinger (PW80G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

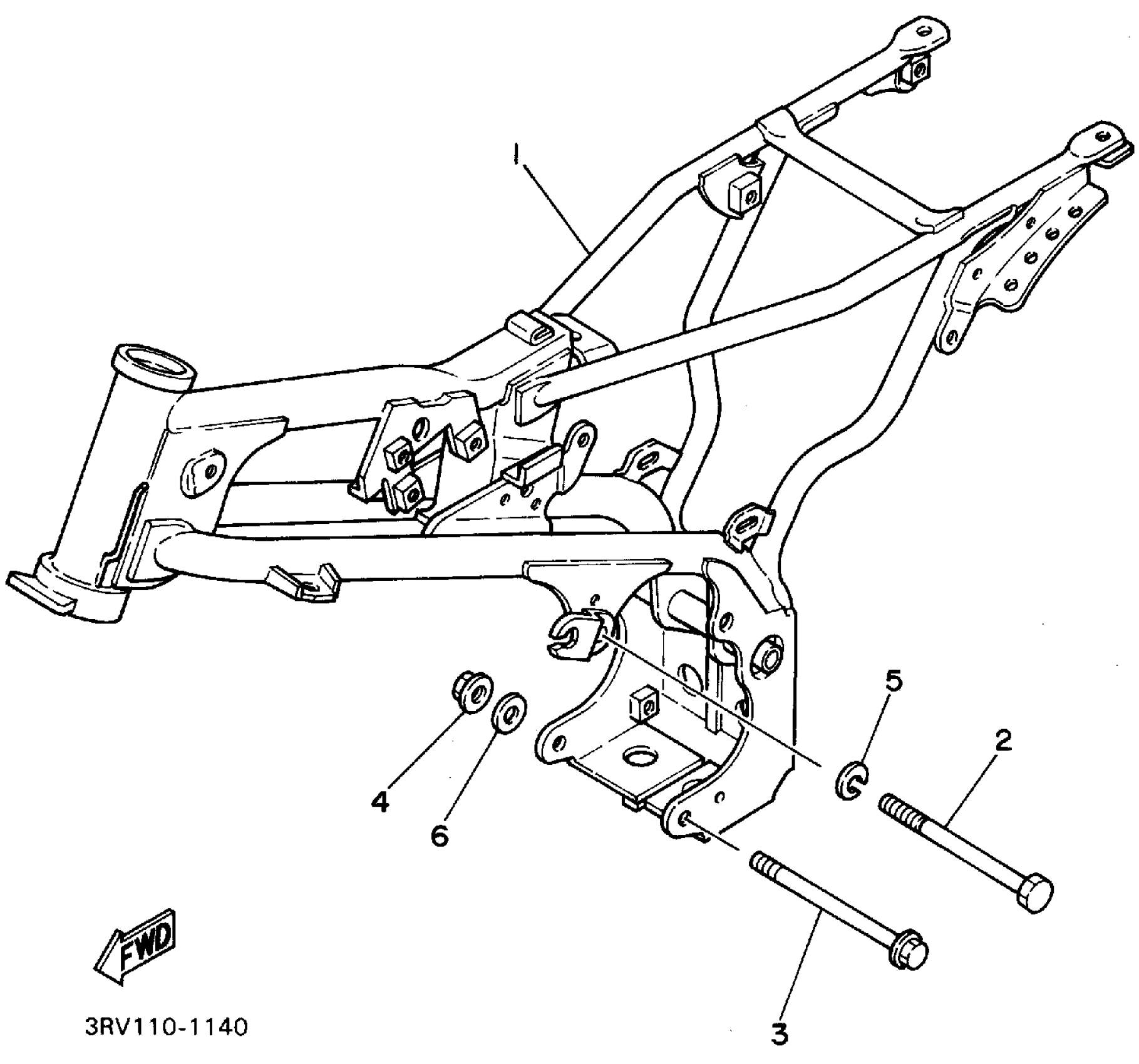

1995 Yamaha Y-Zinger (PW80G) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME COMP.

21W-21110-10-33

1
Out of stock

2

BOLT, HEXAGON (582)

90101-08286-00

1
Out of stock

3

BOLT, FLANGE(4EM)

95817-08120-00

1

$3.83

In stock

4

NUT, FLANGE(JN5)

95707-08500-00

1

$1.49

In stock

5

WASHER(JN5)

92907-08100-00

1

$5.98

In stock

6

WASHER, PLATE(3XP)

90201-086P8-00

1

$4.35

In stock
