Description

Price

1

MAIN AXLE COMP.

4BC-17410-00-00

Unavailable

2

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

3

BRG,CYL-CAL ROLLER 10G NT

93320-41202-00

$26.99

4

PLATE, BEARING COVER

296-17471-00-00

$6.99

5

SCREW, PAN

98517-06012-00

$3.78

6

AXLE, DRIVE

(1W7-17421-10-00)

Unavailable

7

GEAR, 1ST WHEEL

1W7-17211-12-00

Unavailable

8

WASHER (1M9)

90209-15178-00

Unavailable

8

WASHER (1M9)

90209-15179-00

$3.35

8

WASHER (1M9)

90209-15180-00

Unavailable

9

GEAR, 2ND WHEEL (29T)

1W7-17221-20-00

$102.99

10

GEAR, 3RD WHEEL (22T)

21W-17231-00-00

Unavailable

11

BALL

93509-32012-00

Unavailable

12

CIRCLIP (1W7)

93450-28049-00

$1.11

13

CIRCLIP

93440-15012-00

$8.49

14

BEARING(1YW)

93306-20461-00

Unavailable

15

OIL SEAL (20X38X5-517)

93102-20143-00

Unavailable

16

SPROCKET,DRIVE 15T(5171746152)

93812-15063-00

Unavailable

17

CIRCLIP (525)

93410-20038-00

Unavailable

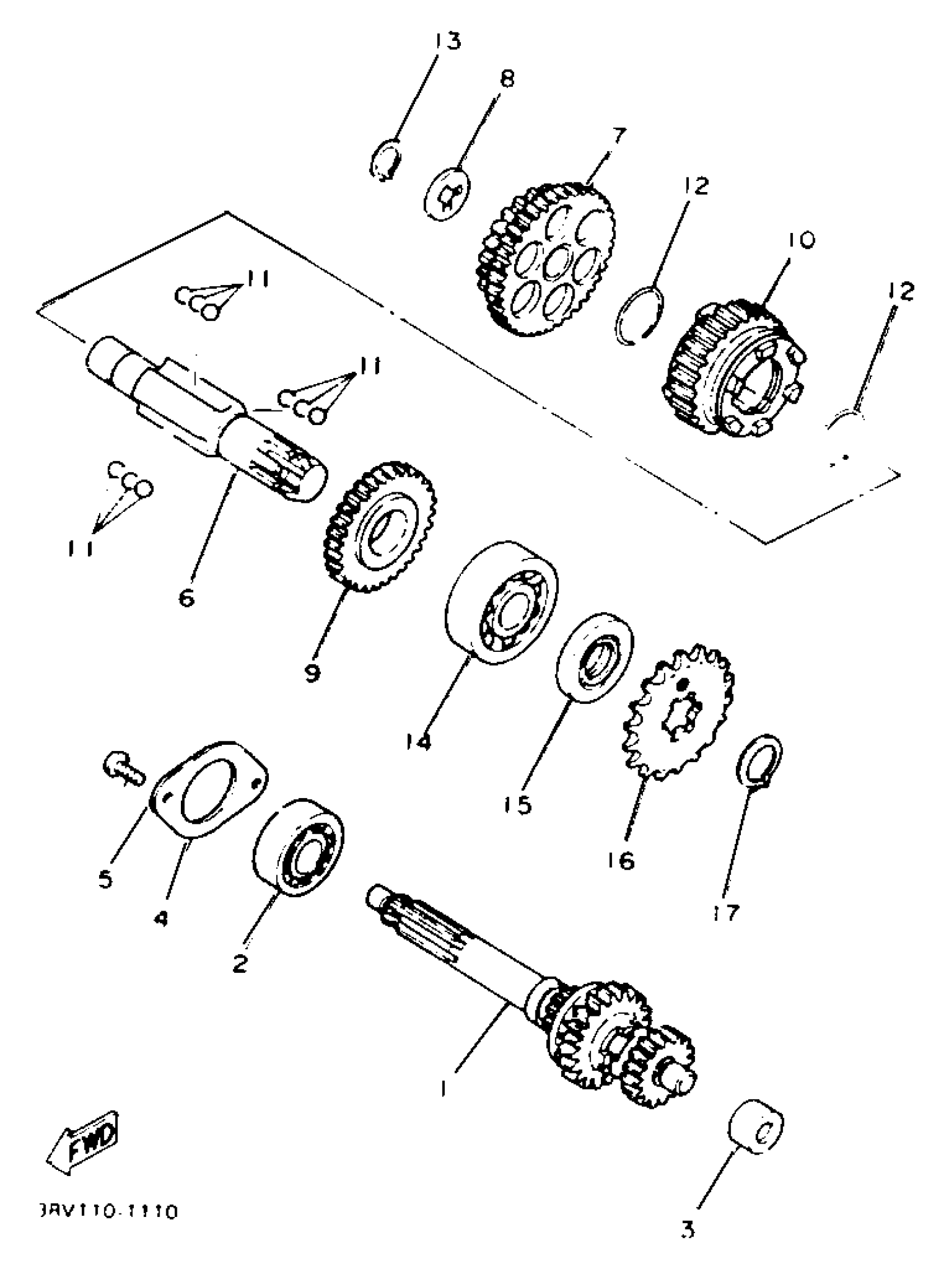

Yamaha PW80F (Y-ZINGER) 1994 TRANSMISSION Diagram

MAIN AXLE COMP.

BRG,R-B 6203RS 40MM 63.3G KY

BRG,CYL-CAL ROLLER 10G NT

PLATE, BEARING COVER

SCREW, PAN

AXLE, DRIVE

GEAR, 1ST WHEEL

WASHER (1M9)

WASHER (1M9)

WASHER (1M9)

GEAR, 2ND WHEEL (29T)

GEAR, 3RD WHEEL (22T)

BALL

CIRCLIP (1W7)

CIRCLIP

BEARING(1YW)

OIL SEAL (20X38X5-517)

SPROCKET,DRIVE 15T(5171746152)

CIRCLIP (525)
