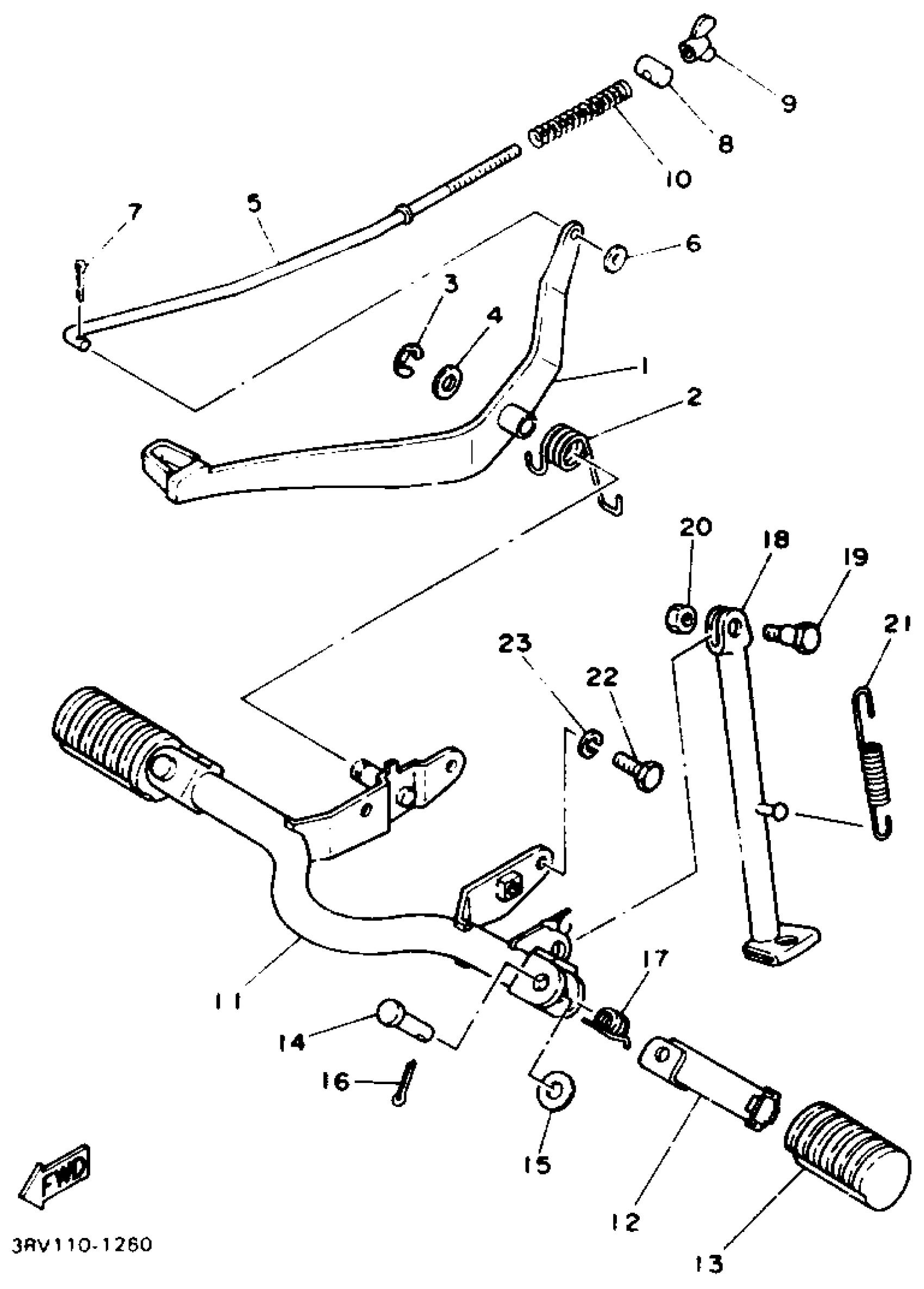

Yamaha PW80F (Y-ZINGER) 1994 STAND FOOTREST Diagram

#

Description
Price

1

PEDAL, BRAKE

21W-27211-00-00

$40.99

2

SPRING, TORSION (21W)

90508-29578-00

$9.49

3

CIRCLIP(J51)

99080-09600-00

$2.55

4

WASHER, PLATE(663)

92990-12600-00

$8.49

5

ROD, BRAKE

21W-27231-00-00

$23.99

6

WASHER, PLAIN (646)

92990-06600-00

$2.80

7

PIN, COTTER

91490-20025-00

$1.99

8

PIN 1562723700

90249-12008-00

$8.49

9

NUT (25K)

90179-06411-00

$8.49

10

SPRING, (180-27236-00)

90501-10245-00

$8.49

11

FOOTREST 1

21W-27411-01-33

Unavailable

12

FOOT REST

214-27421-00-00

$37.99

13

COVER, FOOT REST

214-27413-00-00

$23.99

14

PIN, CLEVIS (2A6)

91701-08038-00

$4.14

15

.. WASHER, PLATE

92990-08600-00

Unavailable

16

PIN, COTTER

91490-25020-00

Unavailable

17

SPRING, TORSION (214-27426-00)

90508-20023-00

Unavailable

18

STAND, SIDE

21W-27311-01-00

Unavailable

19

BOLT 1092537300

90109-08063-00

Unavailable

20

. NUT

95380-08700-00

Unavailable

21

SPRING, TENSION (1L9)

90506-26270-00

Unavailable

22

BOLT, HEXAGON

97017-08020-00

Unavailable

23

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable
