Description

Price

1

EXHAUST PIPE ASSY 1

21W-14610-02-00

Unavailable

2

GASKET, EXHAUST PIPE

3RV-14623-00-00

$22.99

3

BOLT, HEXAGON

97017-08020-00

$9.49

4

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

5

PROTECTOR ASSY

21W-14708-00-00

$129.99

6

SCREW,PANHEAD (EG9)

98580-05006-00

Unavailable

7

WASHER, PLATE(4DN)

90202-04214-00

$8.49

8

WASHER, PROTECTOR

3RV-14766-00-00

$6.99

9

GASKET, MUFFLER

4X4-14714-00-00

$5.49

10

CLIP (4X4)

90467-22048-00

$8.49

11

BOLT, HEXAGON

97013-08016-00

$1.01

12

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

13

.. WASHER, PLATE

92990-08600-00

Unavailable

14

SILENCER, EXHAUST

21W-14753-02-00

$214.99

15

BOLT, HEXAGON

97013-08016-00

$1.01

16

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

17

.. WASHER, PLATE

92990-08600-00

Unavailable

18

PROTECTOR, SILENCER

21W-14758-00-00

Unavailable

19

SCREW,PANHEAD (EG9)

98580-05006-00

Unavailable

20

WASHER, PLATE(4DN)

90202-04214-00

$8.49

21

WASHER, PROTECTOR

3RV-14766-00-00

$6.99

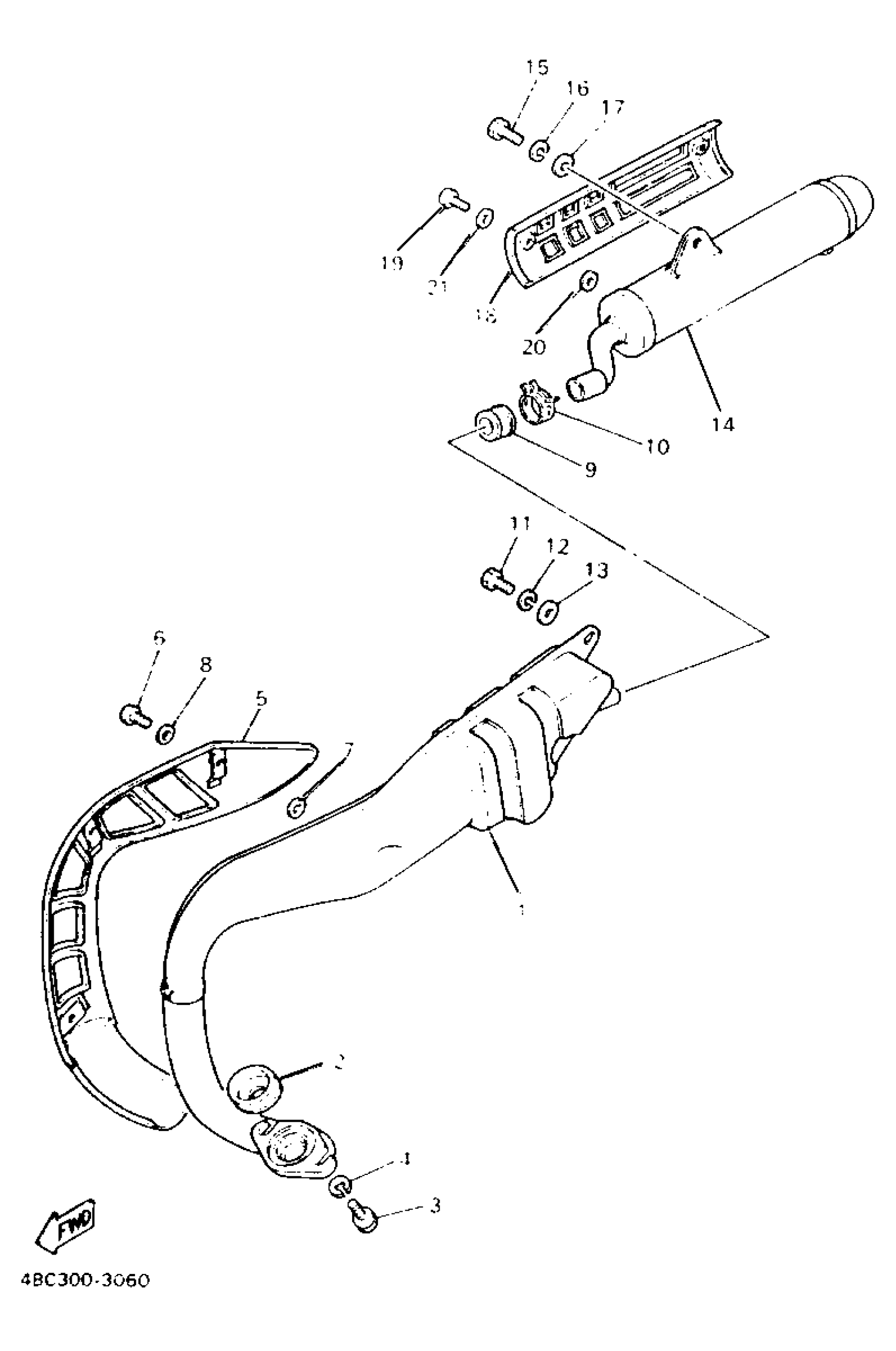

Yamaha PW80F (Y-ZINGER) 1994 EXHAUST Diagram

EXHAUST PIPE ASSY 1

GASKET, EXHAUST PIPE

BOLT, HEXAGON

YBS67-8 WASHER, SPRING

PROTECTOR ASSY

SCREW,PANHEAD (EG9)

WASHER, PLATE(4DN)

WASHER, PROTECTOR

GASKET, MUFFLER

CLIP (4X4)

BOLT, HEXAGON

YBS67-8 WASHER, SPRING

.. WASHER, PLATE

SILENCER, EXHAUST

BOLT, HEXAGON

YBS67-8 WASHER, SPRING

.. WASHER, PLATE

PROTECTOR, SILENCER

SCREW,PANHEAD (EG9)

WASHER, PLATE(4DN)

WASHER, PROTECTOR
