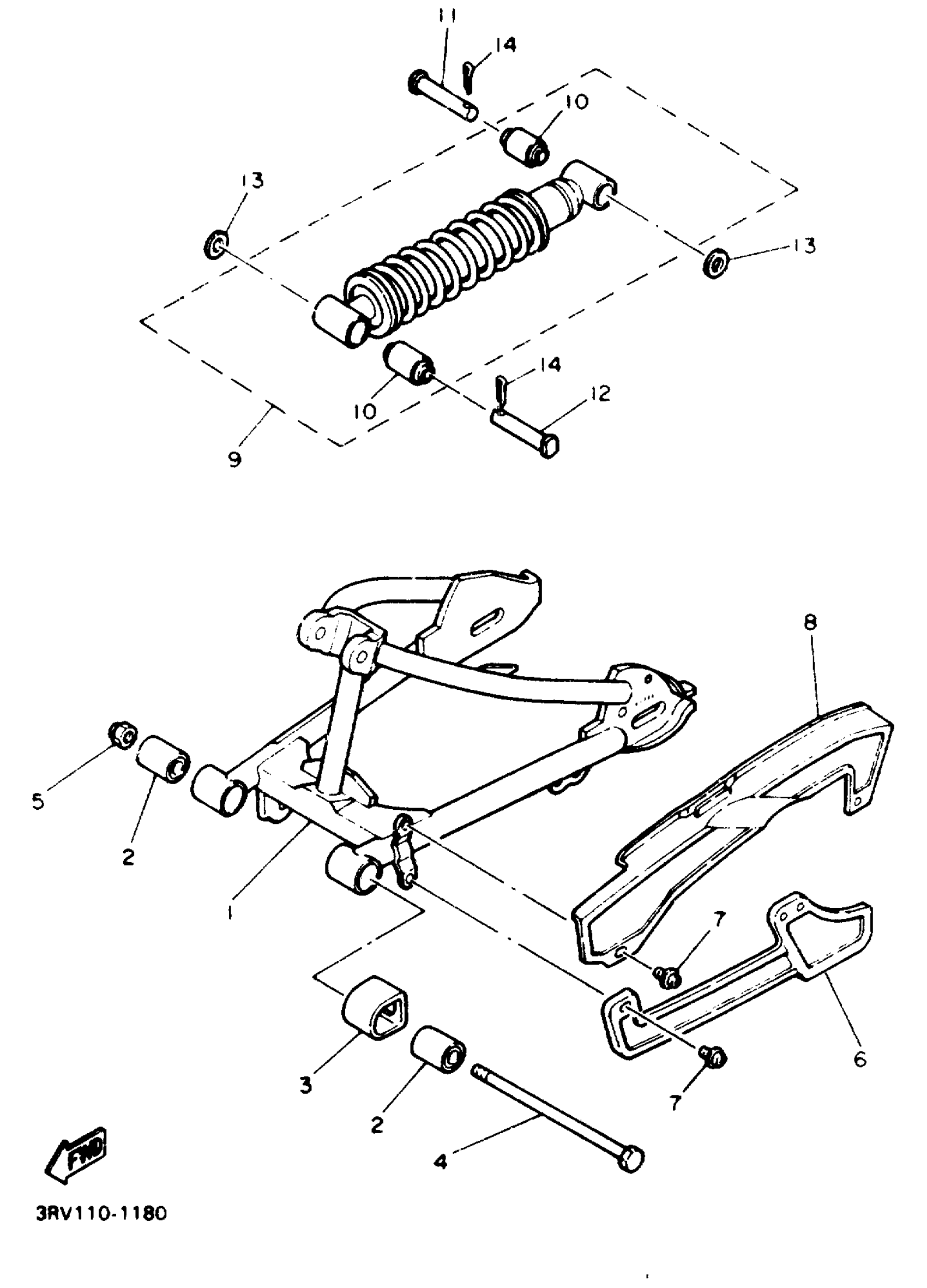

Yamaha PW80E (Y-ZINGER) 1993 SWING ARM REAR SHOCKS Diagram

#

Description
Price

1

REAR ARM COMP.

21W-22110-00-35

Unavailable

2

BUSH 1

102-22123-00-00

Unavailable

3

SEAL, GUARD

3R0-22151-00-00

$25.99

4

SHAFT, PIVOT

288-22141-00-00

$45.99

5

NUT, U

90185-10037-00

$9.49

6

SUPPORT, CHAIN

21W-22199-00-00

$32.99

7

SCREW, WITH WASHER(52W)

90159-05121-00

$4.15

8

CASE, CHAIN

21W-22311-00-00

$24.99

9

SHOCK ABSORBER ASSY, REAR

4BC-22210-02-00

Unavailable

10

BUSHING

3M7-22216-00-00

$23.99

11

PIN, CLEVIS (3R0)

90240-10072-00

$11.49

12

PIN, CLEVIS (3R0)

90240-10069-00

$11.49

13

WASHER, PLATE(56J)

90201-106H5-00

$10.49

14

PIN, COTTER

91490-25020-00

$3.19
