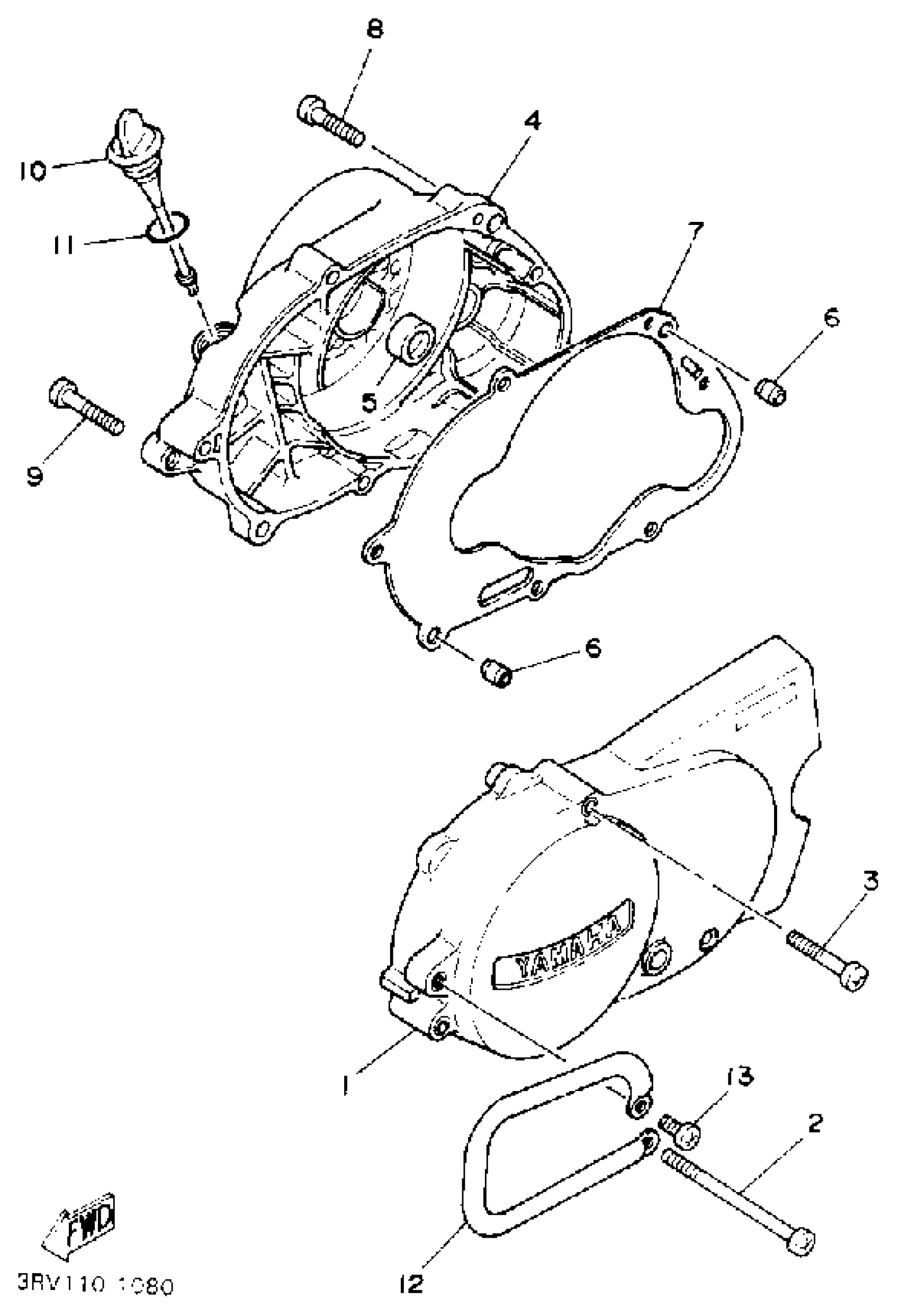

Yamaha PW80D (Y-ZINGER) 1992 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

21W-15411-00-00

$102.89

2

SCREW, PAN

98507-06100-00

$6.47

3

SCREW, PAN

98507-06045-00

$2.51

4

COVER, CRANKCASE 2

5R7-15421-00-00

Unavailable

5

OIL SEAL (10.8X20X9-517)

93104-11053-00

$6.06

6

PIN, DOWEL(3VD)

99530-10114-00

$2.03

7

GASKET, CRANKCASE COVER 1

4AW-15451-00-00

$16.69

8

SCREW, PAN

98507-06035-00

$5.88

9

SCREW, PAN

98507-06040-00

$2.12

10

UNAVAILABLE IN PRICE BOOK

517-15362-20-00

Unavailable

11

O-RING

93210-21190-00

$5.48

12

PROTECTOR

4BC-15491-00-00

Unavailable

13

SCREW, PAN

98517-06012-00

$2.99
