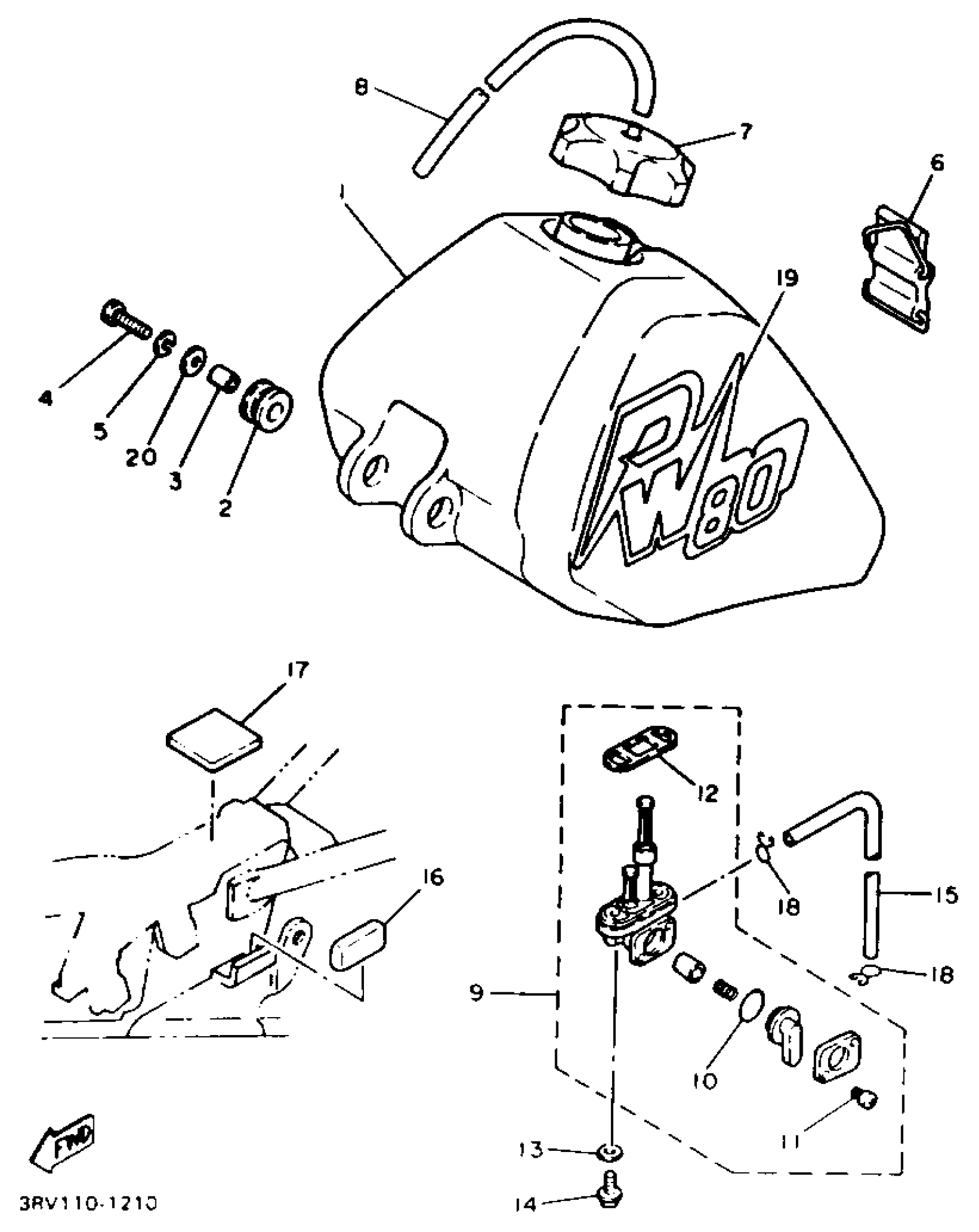

Yamaha PW80B (Y-ZINGER) 1991 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

3RV-24110-00-00

Unavailable

2

GROMMET (4V1)

90480-18290-00

$6.54

3

COLLAR (1T2)

90387-07598-00

$4.51

4

BOLT, HEXAGON

97017-06030-00

$2.80

5

WASHER, SPRING

92995-06100-00

$2.95

6

BAND, TANK FITTING 1

59V-24173-00-00

$14.81

7

CAP ASSY

2FG-24610-10-00

$56.52

8

HOSE (L1500)

90445-090F6-00

$24.98

9

FUEL COCK ASSY 1

36R-24500-01-00

$62.23

10

O-RING

1A0-24512-00-00

Unavailable

11

. SCREW, LEVER FITTING

619-24535-00-00

Unavailable

12

GASKET, BODY

214-24512-00-00

$24.69

13

WASHER, PLATE(3MB)

90202-05187-00

$1.01

14

SCREW 256241430000

90149-06011-00

$1.56

15

HOSE (L420)

90445-092K1-00

$10.47

16

DAMPER, LOCATING 1

21W-24181-00-00

Unavailable

17

DAMPER

51L-28371-00-00

$7.49

18

CLIP 101235600

90467-08003-00

Unavailable

19

GRAPHIC, FUEL TNK 1

3RV-24244-00-00

Unavailable

20

WASHER PLATE 137241870000

90201-06072-00

Unavailable
