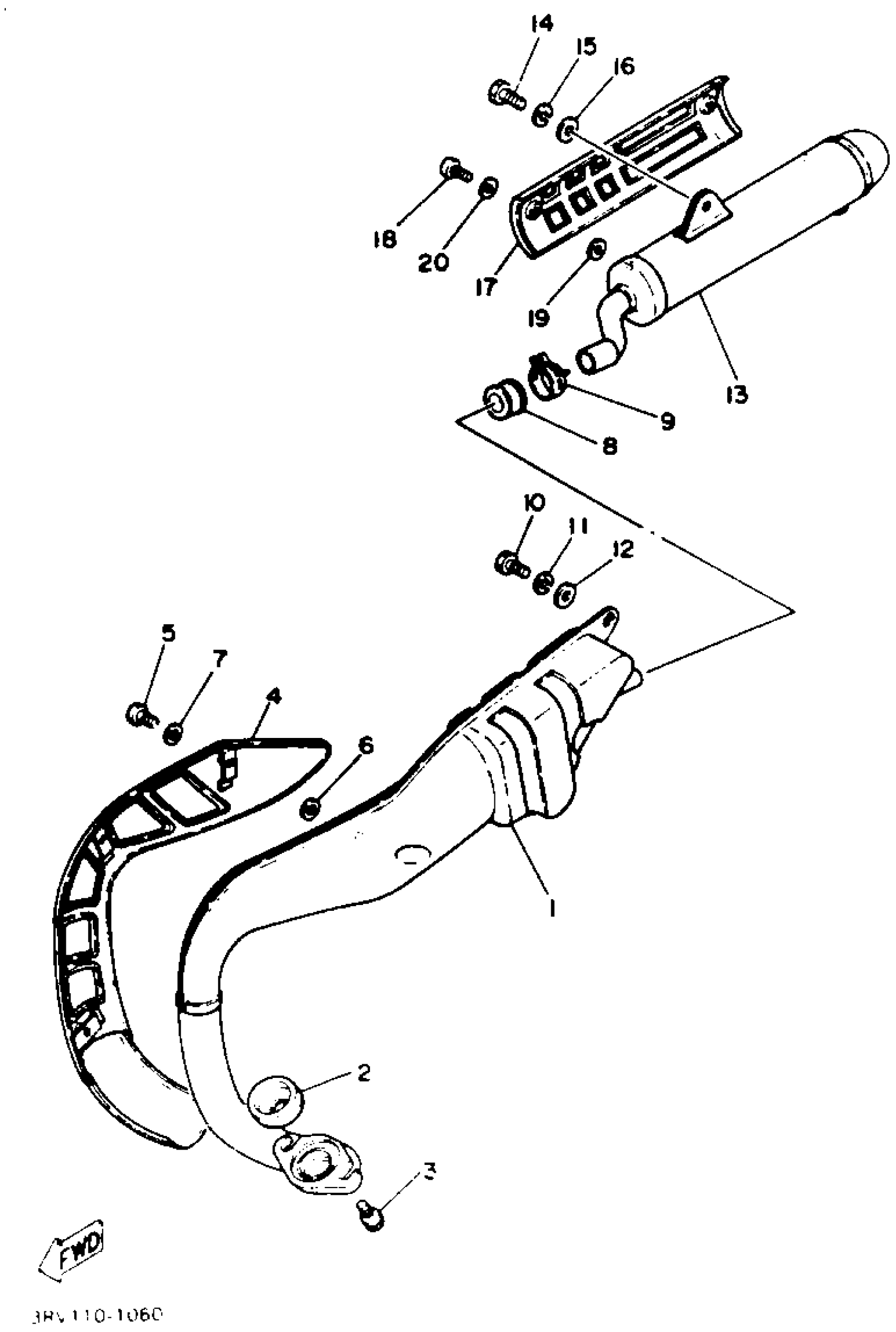

Yamaha PW80B (Y-ZINGER) 1991 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASSY 1

21W-14610-02-00

Unavailable

2

GASKET, EXHAUST PIPE

3RV-14623-00-00

$17.03

3

BOLT

90109-08629-00

Unavailable

4

PROTECTOR ASSY

21W-14708-00-00

$104.47

5

SCREW, PAN HEAD(3AH)

98507-05006-00

$2.52

6

WASHER, PLATE(4DN)

90202-04214-00

$5.75

7

WASHER, PROTECTOR

3RV-14766-00-00

$5.37

8

GASKET, MUFFLER

4X4-14714-00-00

$4.40

9

CLIP (4X4)

90467-22048-00

$5.75

10

BOLT, HEXAGON

97013-08016-00

$1.24

11

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

12

.. WASHER, PLATE

92990-08600-00

$2.17

13

SILENCER, EXHAUST

21W-14753-02-00

$209.32

14

BOLT, HEXAGON

97013-08016-00

$1.24

15

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

16

.. WASHER, PLATE

92990-08600-00

$2.17

17

PROTECTOR, SILENCER

21W-14758-00-00

Unavailable

18

SCREW, PAN HEAD(3AH)

98507-05006-00

$2.52

19

WASHER, PLATE(4DN)

90202-04214-00

$5.75

20

WASHER, PROTECTOR

3RV-14766-00-00

$5.37
