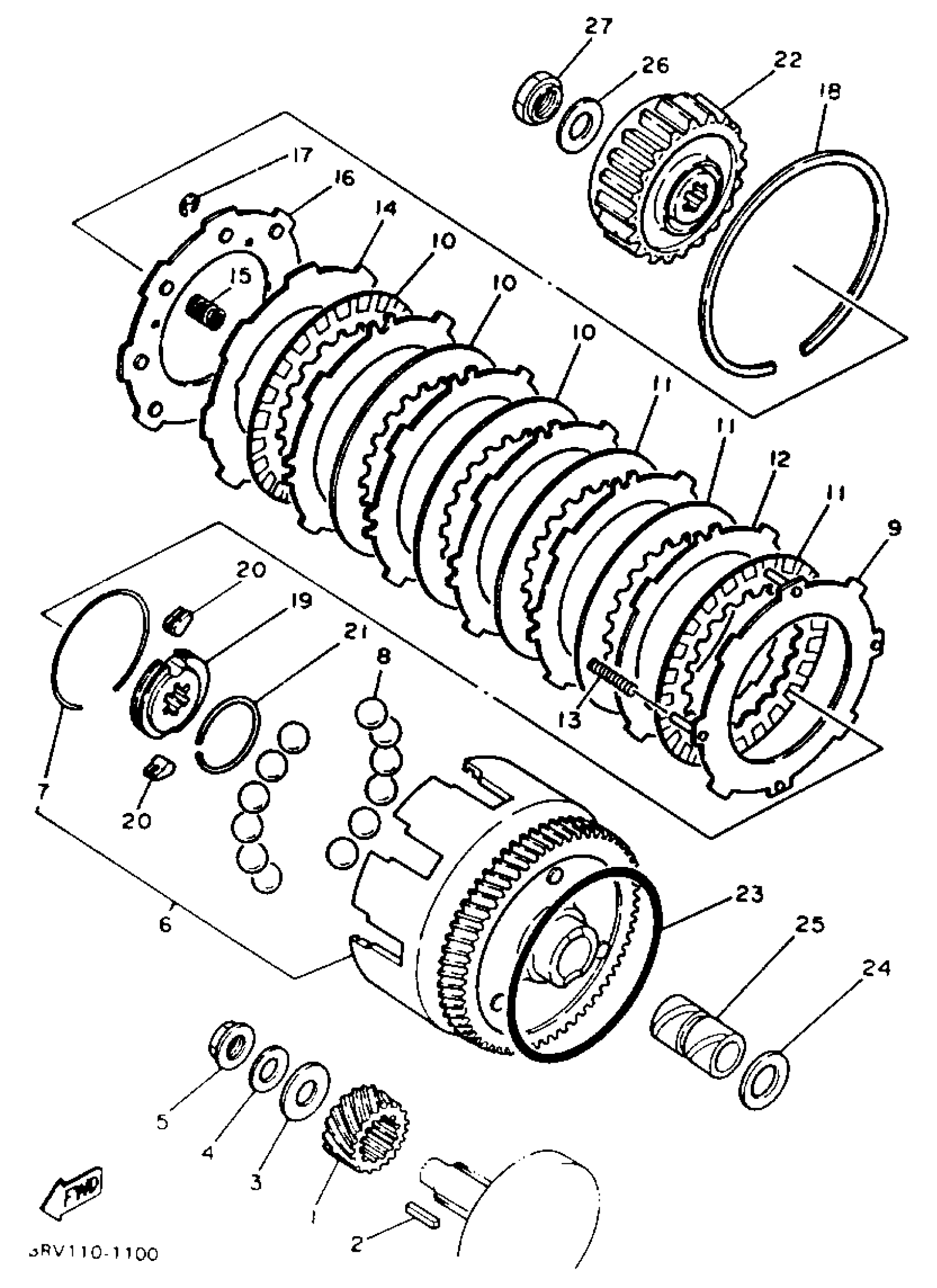

Yamaha PW80B (Y-ZINGER) 1991 CLUTCH Diagram

#

Description
Price

1

PRIMARY DRIVE GEAR ASSY

56H-16110-00-00

Unavailable

2

KEY, STRAIGHT(56H)

90282-04064-00

$10.49

3

WASHER(21W)

90209-12280-00

Unavailable

4

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

Unavailable

5

NUT(1EE)

90179-12659-00

$8.49

6

PRIMARY DRIVEN GEAR COMP.

3E5-16150-02-00

Unavailable

7

CIRCLIP (3E1)

90468-16090-00

$5.60

8

BALL (5/8INCH) (527 CKD)

93505-08030-00

$8.49

9

PLATE, THRUST WEIGHT

527-16520-10-00

Unavailable

10

PLATE, FRICTION

3E5-16521-00-00

$16.49

11

PLATE, FRICTION

3E5-16521-00-00

$16.49

12

PLATE, CLUTCH 1

517-16524-10-00

Unavailable

12

PLATE, CLUTCH 2

517-16524-20-00

$19.99

12

PLATE, CLUTCH 3

517-16524-30-00

Unavailable

13

SPRING, COMPRESSION (4G2)

90501-10602-00

Unavailable

14

PLATE, PRESSURE 1

517-16550-10-00

Unavailable

15

SPRING COMPRESSION116165330000

90501-12088-00

Unavailable

16

PLATE, PRESSURE 2

517-16561-01-00

Unavailable

17

CIRCLIP(6L5)

99080-03600-00

Unavailable

18

CIRCLIP (22F)

93451-08094-00

Unavailable

19

BOSS, ONEWAY

517-16180-00-00

Unavailable

20

PAWL, ONE WAY

384-15635-00-00

Unavailable

21

SPRING, PAWL

2T4-15637-01-00

Unavailable

22

BOSS, CLUTCH

527-16571-01-00

Unavailable

23

O-RING (353)

93210-98202-00

Unavailable

24

PLATE, THRUST

122-16164-00-00

Unavailable

25

SPACER (517)

90560-17146-00

Unavailable

26

WASHER (517 CLUTCH)

90208-16019-00

Unavailable

27

NUT (517 CLUTCH)

90179-16190-00

Unavailable
