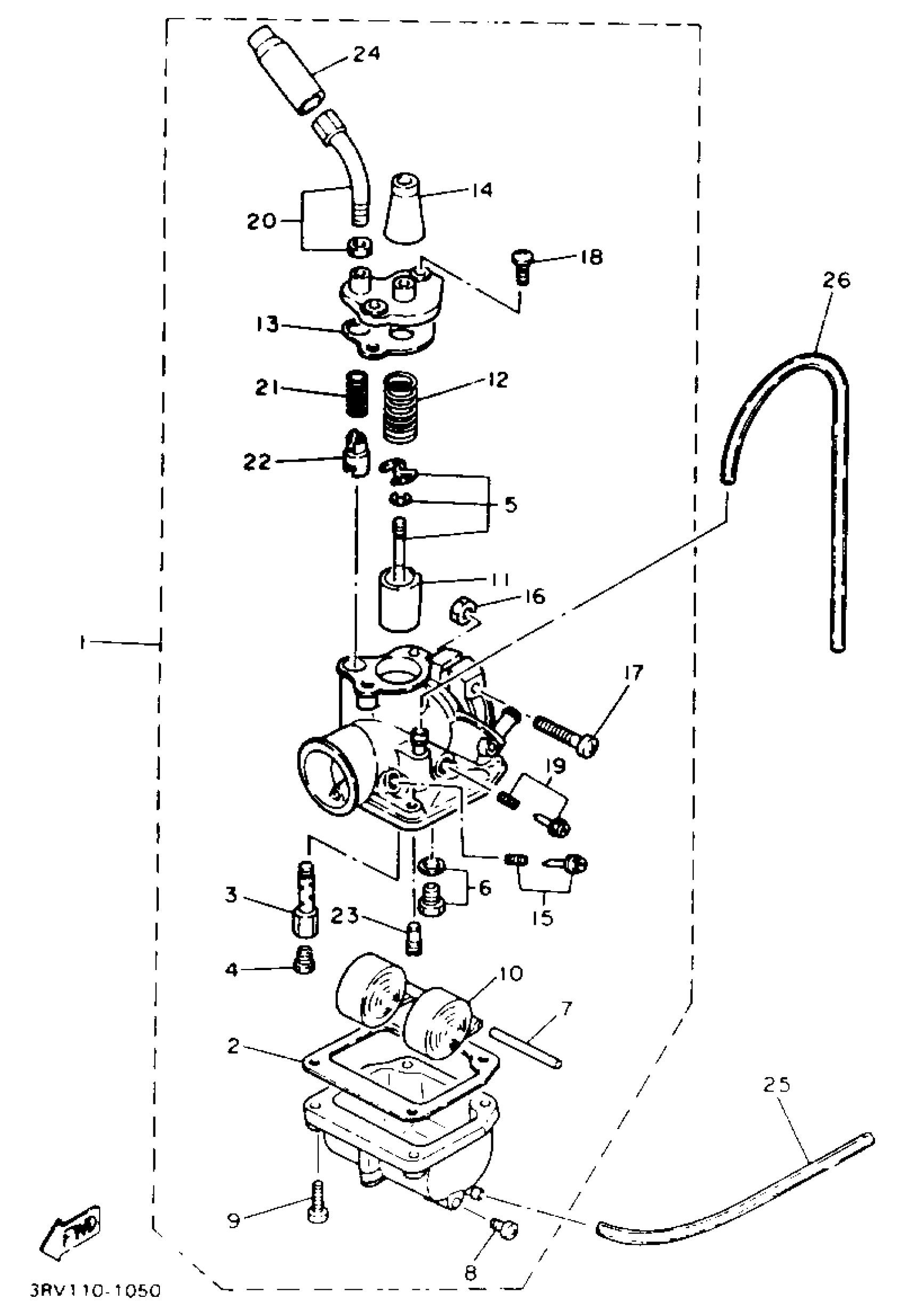

Yamaha PW80B (Y-ZINGER) 1991 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY 1

21W-14101-01-00

Unavailable

2

GASKET, FLOAT CHAMBER

296-14184-01-00

$9.99

3

NOZZLE, MAIN(FSI)

127-14141-14-00

$30.99

4

JET, MAIN (NO.120)

127-14143-24-00

$6.99

4

JET, MAIN (#125)

127-14143-25-00

$6.99

4

JET, MAIN (NO.130)

127-14143-26-00

$6.99

5

NEEDLE SET

21W-1490J-00-00

Unavailable

6

NEEDLE VALVE SET

21W-14107-12-00

Unavailable

7

PIN, FLOAT

127-14186-00-00

$6.65

8

PLUG, DRAIN

12R-14191-00-00

$16.49

9

SCREW, PAN HEAD

98517-04016-00

$8.49

10

FLOAT

2E9-14185-00-00

$70.99

11

VALVE,THROTTLE 1

18E-14112-25-00

Unavailable

12

SPRING, THROTTLE VALVE

296-14131-00-00

Unavailable

13

GASKET, MIXING CHAMBER

296-14198-01-00

$14.49

14

CAP

307-14169-10-00

Unavailable

15

AIR SCREW SET

36R-14104-00-00

Unavailable

16

NUT, HEXAGON (663)

95380-05600-00

Unavailable

17

SCREW, PAN HEAD

98517-05030-00

Unavailable

18

SCREW, PAN HEAD (E56)

98580-04010-00

Unavailable

19

THROTTLE SCREW SET

12G-14103-00-00

Unavailable

20

ADJUST SCREW SET

21W-14503-00-00

Unavailable

21

SPRING, PLUNGER

127-14135-00-00

Unavailable

22

PLUNGER, STARTER

58E-14171-00-00

Unavailable

23

JET, PILOT (# 15)

193-14142-15-A0

Unavailable

24

CAP

1R0-14169-00-00

Unavailable

25

HOSE (L200)

90445-05N13-00

Unavailable

26

HOSE (L200)

90445-07176-00

Unavailable
