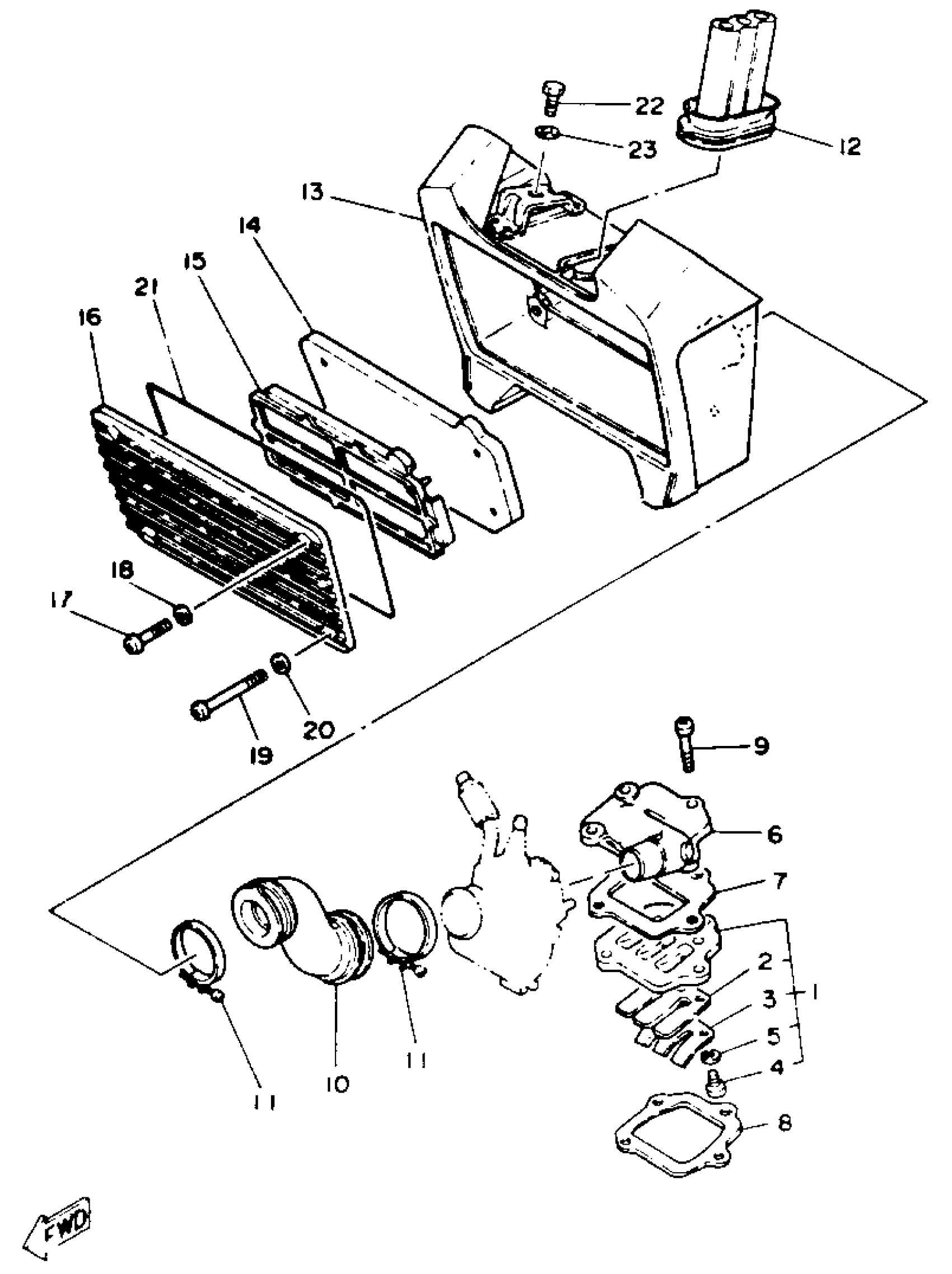

Yamaha PW80B (Y-ZINGER) 1991 AIR FILTER Diagram

#

Description
Price

1

REED VALVE ASSEMBLY

1HA-13610-01-00

Unavailable

2

REED, VALVE

56J-13613-00-00

$24.99

3

STOPPER, REED VALVE

300-13616-00-00

$6.99

4

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

5

WASHER, SPRING

92990-03100-00

$8.49

6

MANIFOLD, INTAKE

21W-13555-00-00

Unavailable

7

GASKET, VALVE SEAT

300-13622-10-00

$20.99

8

GASKET, VALVE SEAT

300-13621-10-00

$19.99

9

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

10

JOINT, AIR CLEANER 1

21W-14453-00-00

$35.99

11

CLAMP, HOSE

90460-37130-00

Unavailable

12

JOINT, SUCTION PIPE

5U8-14454-00-00

Unavailable

13

AIR CLEANER CASE

3RV-W1441-00-00

Unavailable

14

ELEMENT, AIR CLEANER

21W-14451-00-00

$8.99

15

GUIDE

21W-14458-00-00

Unavailable

16

CAP, CLEANER CASE 1

21W-14412-00-00

Unavailable

17

SCREW, PAN HEAD(4MY)

98507-05025-00

Unavailable

18

WASHER(1RW)

92907-05600-00

Unavailable

19

SCREW, PAN HEAD

98507-05050-00

Unavailable

20

WASHER(1RW)

92907-05600-00

Unavailable

21

SEAL

1VJ-14462-00-00

Unavailable

22

BOLT, HEXAGON

97017-08016-00

Unavailable

23

WASHER(6TA)

92907-08600-00

Unavailable
