Description

Price

1

REAR ARM COMP.

3L7-22110-00-98

Unavailable

2

BOLT, HEXAGON (3L6)

90101-08461-00

$5.60

3

WASHER(JN5)

92907-08100-00

$8.49

4

REAR ARM COMP.

4X4-22110-10-00

Unavailable

5

END 1

4J2-22174-01-00

$42.99

6

BEARING(82M)

93306-20117-00

$34.99

7

OIL SEAL (4J2)

93106-24018-00

$11.49

8

BOLT WASHER BASED (1J7)

90105-08066-00

Unavailable

9

NUT, FLANGE(JN5)

95707-08500-00

$3.13

10

WASHER (853)

90201-08326-00

$8.49

11

BUSHING, REAR CUSHION

164-22216-00-00

$13.49

12

LABEL, TIRE

3RV-21668-A1-00

$4.47

13

SHOCK ABSORBER ASSY, REAR

3PT-22210-10-00

Unavailable

14

BOLT, HEXAGON

97017-06016-00

$8.49

15

WASHER, SPRING

92907-06100-00

$4.25

16

WASHER, PLATE (4N0)

90201-126A7-00

Unavailable

17

WASHER, PLATE (4X4)

90201-067A0-00

Unavailable

18

BOLT, FLANGE

90105-08121-00

Unavailable

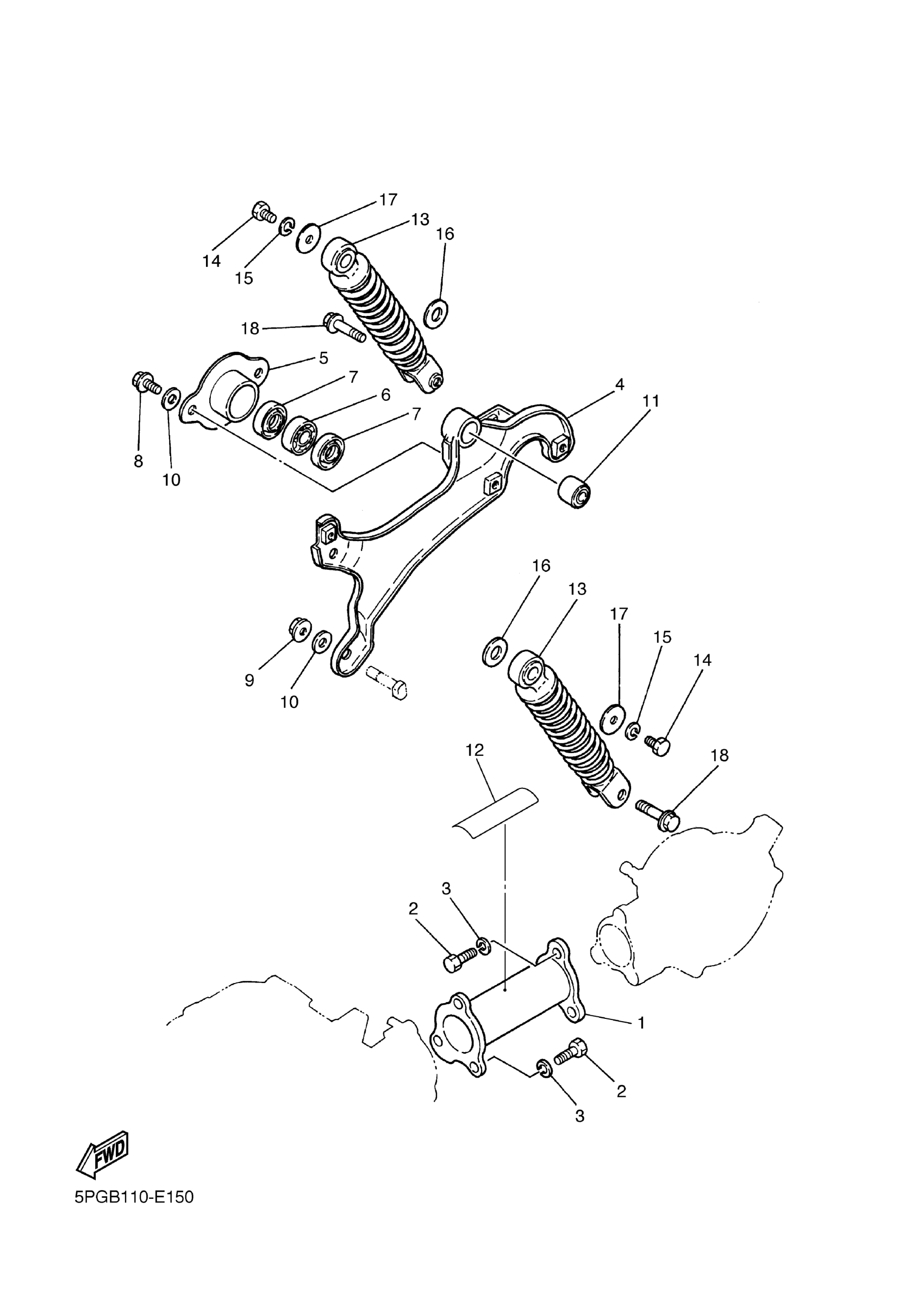

Yamaha PW50X (PW50) 5PGF 2008 REAR ARM SUSPENSION Diagram

REAR ARM COMP.

BOLT, HEXAGON (3L6)

WASHER(JN5)

REAR ARM COMP.

END 1

BEARING(82M)

OIL SEAL (4J2)

BOLT WASHER BASED (1J7)

NUT, FLANGE(JN5)

WASHER (853)

BUSHING, REAR CUSHION

LABEL, TIRE

SHOCK ABSORBER ASSY, REAR

BOLT, HEXAGON

WASHER, SPRING

WASHER, PLATE (4N0)

WASHER, PLATE (4X4)

BOLT, FLANGE
