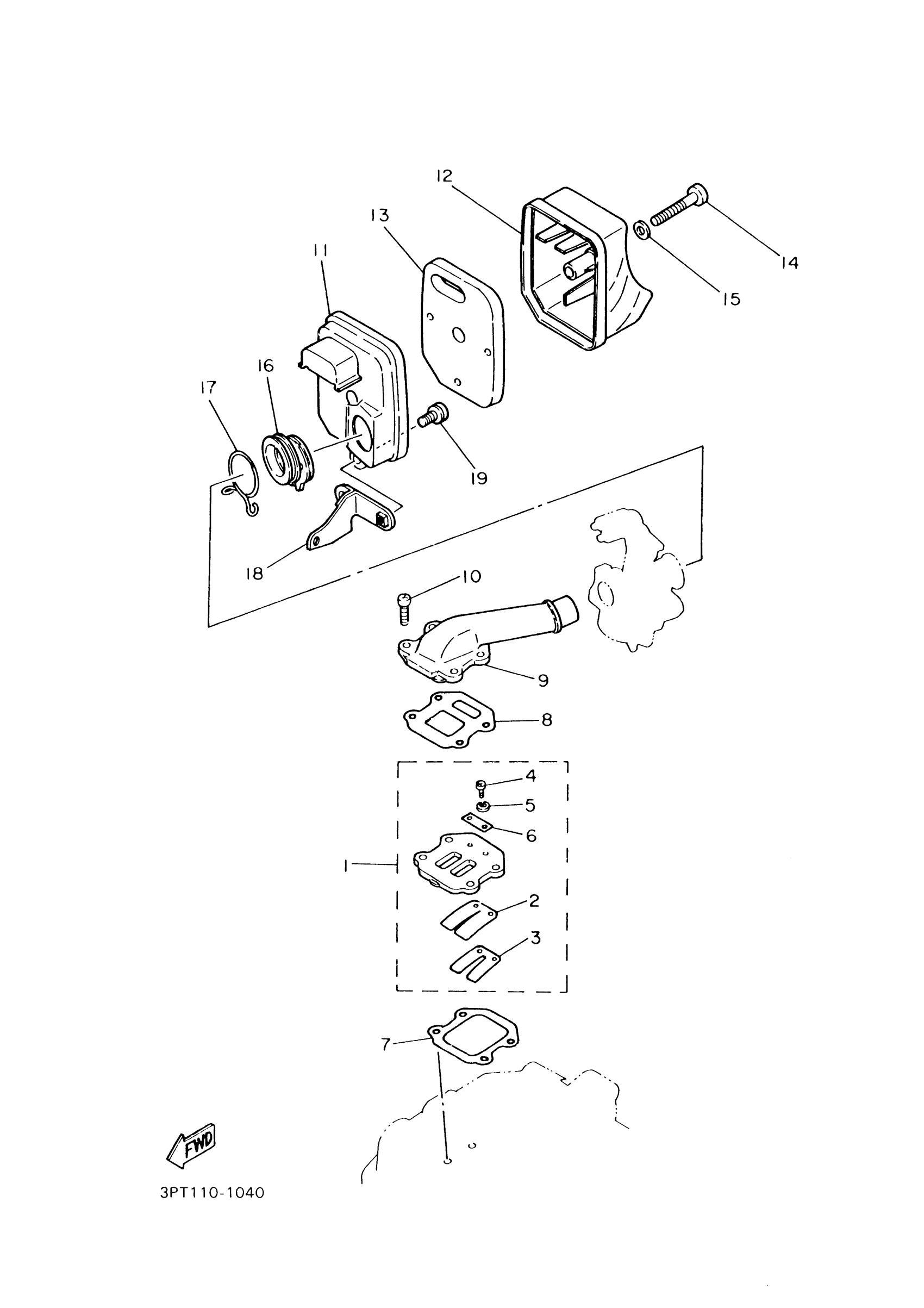

Yamaha PW50W (PW50) 5PGD 2007 INTAKE Diagram

REED VALVE ASSY

3L5-13610-00-00

$81.99

REED VALVE

3L5-13613-00-00

$42.99

STOPPER, REED VALVE

3L5-13616-00-00

$9.99

SCREW, PAN HEAD(3HH)

98507-03010-00

$3.55

WASHER, SPRING

92990-03100-00

$8.49

PLATE, REED VALVE

3L5-13624-00-00

Unavailable

GASKET, VALVE SEAT

3HK-13621-00-00

$20.99

GASKET, VALVE SEAT

3L5-13622-10-00

$28.99

MANIFOLD

3L5-13555-00-00

$65.99

SCREW, PAN

98517-06020-00

$8.49

CASE, AIR CLEANER 1

4X4-14411-00-00

$31.99

CAP, CLEANER CASE 1

4X4-14412-00-00

$27.99

ELEMENT, AIR CLEANER

4X4-14451-00-00

$7.99

SCREW, PAN

98507-06045-00

$3.14

WASHER(6TA)

92907-06600-00

$2.72

JOINT, AIR CLEANER 1

4X4-14453-00-00

Unavailable

CLIP 296144550000

90467-20023-00

Unavailable

STAY 1

4X4-14493-01-00

Unavailable

SCREW, WITH WASHER (517).

90159-06013-00

Unavailable
