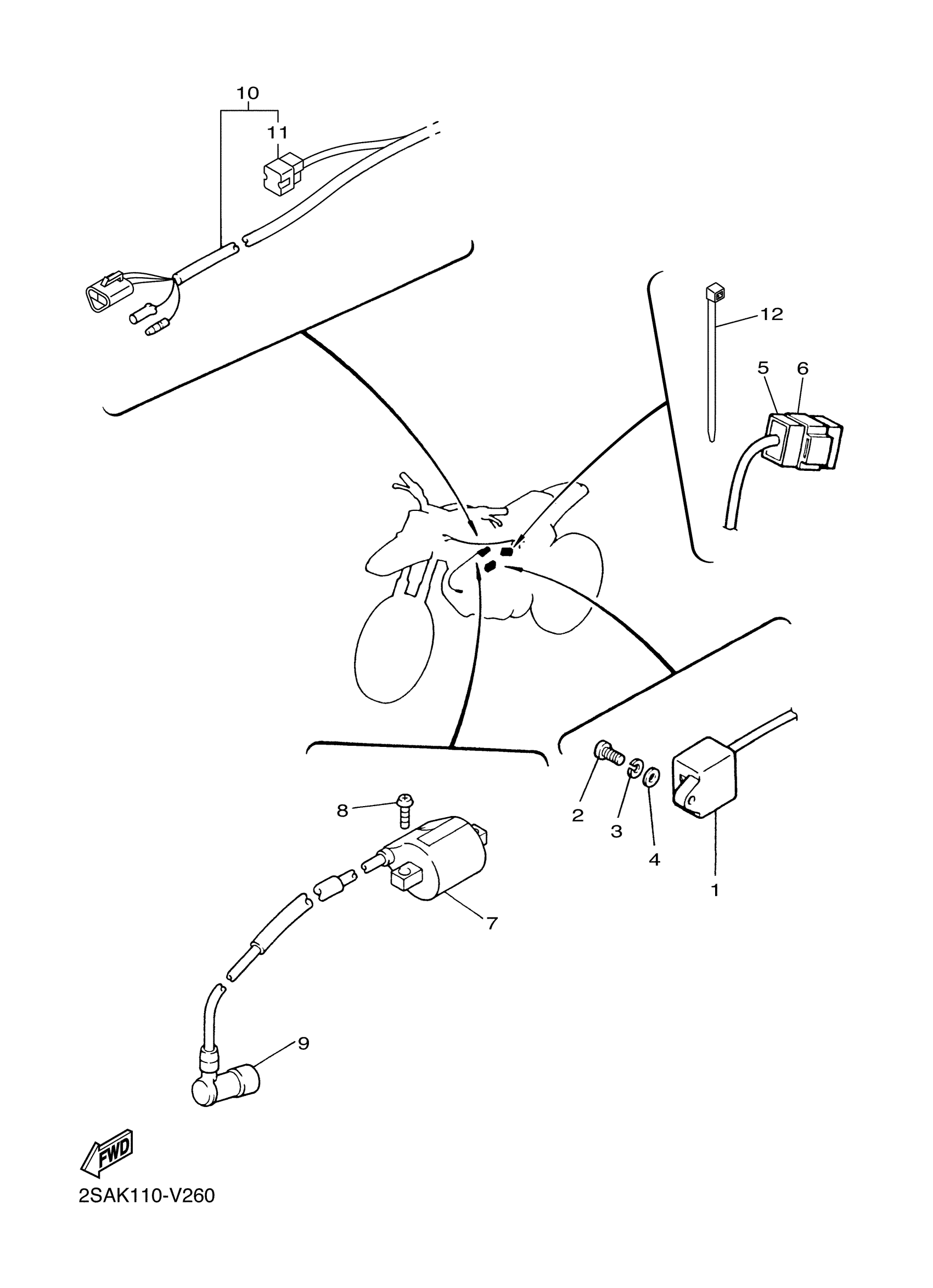

Yamaha PW50T2C (PW50) BSLE 2026 ELECTRICAL 1 Diagram

#

Description
Price

1

C.D.I. UNIT ASSY

3PT-85540-01-00

Unavailable

2

SCREW, PAN HEAD(3TJ)

98507-06016-00

$3.48

3

WASHER, SPRING

92907-06100-00

$4.25

4

WASHER(6TA)

92907-06600-00

$2.72

5

CONTROL UNIT ASSY

5PG-85590-03-00

Unavailable

6

BAND

4J2-85546-00-00

$10.99

7

IGNITION COIL ASSY

4JP-82310-05-00

$80.99

8

BOLT, HEXAGON

97017-06016-00

$8.49

9

PLUG CAP ASSY

166-82370-20-00

$37.99

10

WIRE HARNESS ASSY

5PG-82590-01-00

$111.99

11

DIODE ASSY

3WP-81980-00-00

$22.99

12

CLAMP (6E5)

90465-13M11-00

$8.49
