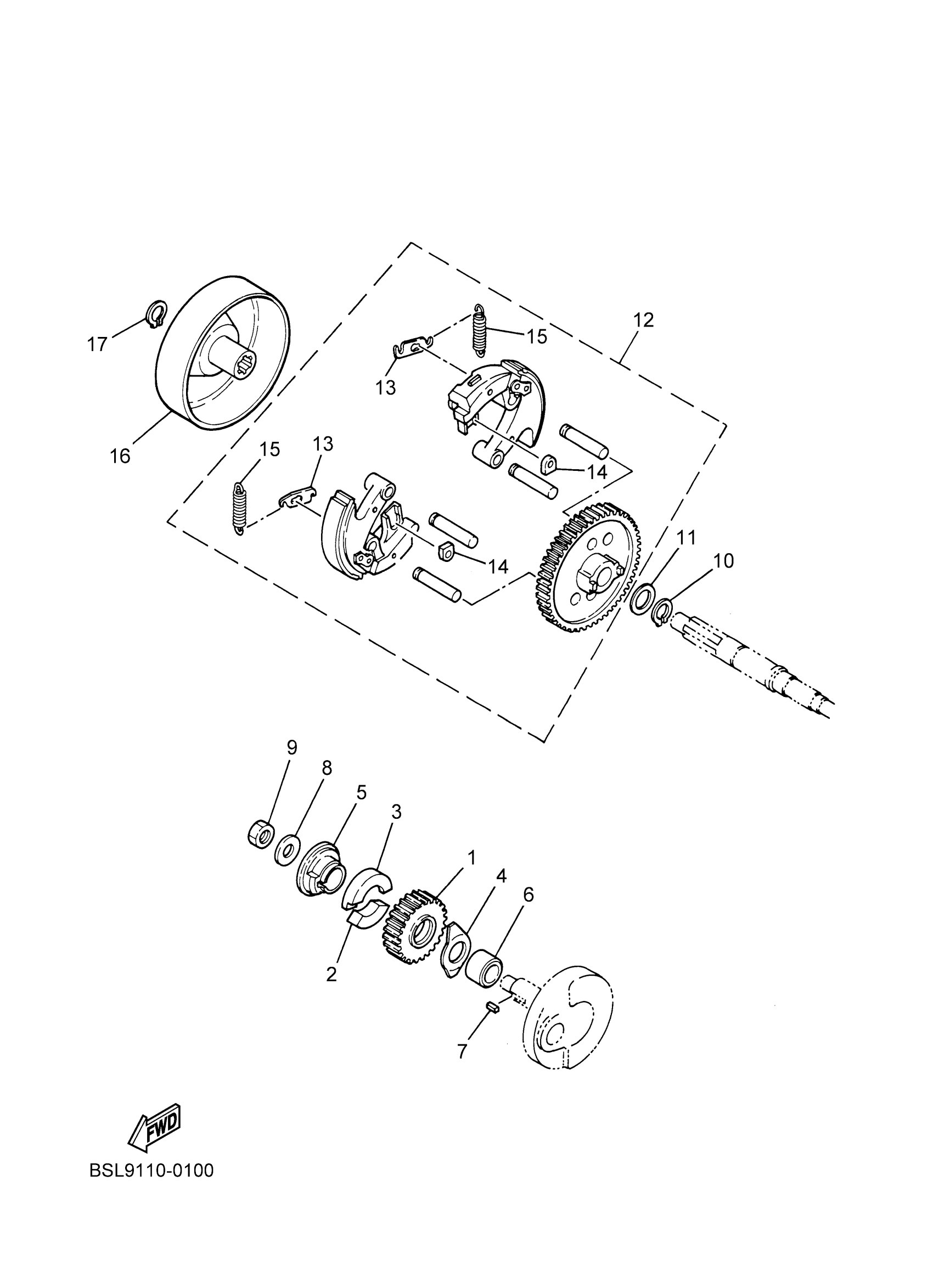

Yamaha PW50T2C (PW50) BSLE 2026 CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE

3L5-16111-00-00

$116.91

2

ABSORBER

3L5-16115-00-00

$3.88

3

ABSORBER

3L5-16125-00-00

$7.03

4

PLATE

3L5-16114-00-00

$6.29

5

SPACER 1

3L5-16181-01-00

$25.56

6

COLLAR (3L5)

90387-16730-00

$16.18

7

KEY, STRAIGHT (3L5)

90282-05034-00

$7.77

8

WASHER, CONICAL SP

90208-10003-00

Unavailable

9

NUT

90170-10206-00

$2.37

10

CIRCLIP(13T)

99009-16400-00

$4.81

11

WASHER, PLATE (384)

90201-16383-00

$6.61

12

CLUTCH CARRIER ASSY

3L5-16620-04-00

Unavailable

13

WASHER

3L5-16628-02-00

$8.92

14

DAMPER, CLUTCH WEIGHT

2T4-16629-01-00

Unavailable

15

SPRING, CLUTCH WEIGHT

3L5-16627-02-00

$8.08

16

CLUTCH HOUSING COMP

3L5-16611-02-00

Unavailable

17

CIRCLIP(13T)

99009-16400-00

$4.81
