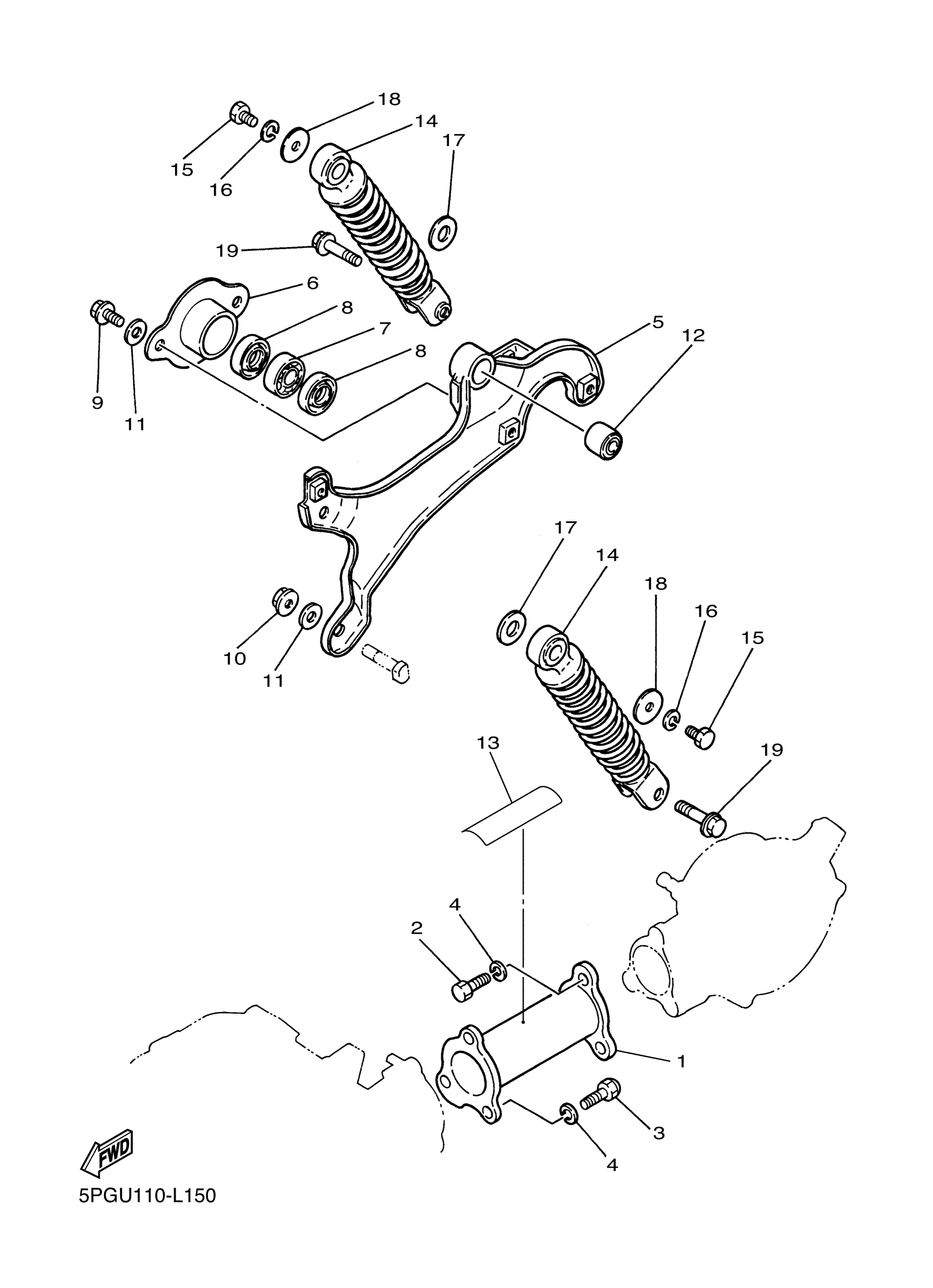

Yamaha PW50S2C (PW50 CA) BSLA 2025 REAR ARM & SUSPENSION Diagram

#

Description
Price

1

REAR ARM COMP.

3L7-22110-00-98

Unavailable

2

BOLT, HEXAGON (3L6)

90101-08461-00

$5.60

3

BOLT(4EW)

90106-08051-00

Unavailable

4

WASHER(JN5)

92907-08100-00

$8.49

5

REAR ARM COMP.

4X4-22110-10-00

Unavailable

6

END 1

4J2-22174-01-00

$42.99

7

BEARING(82M)

93306-20117-00

$34.99

8

OIL SEAL (4J2)

93106-24018-00

$11.49

9

BOLT WASHER BASED (1J7)

90105-08066-00

Unavailable

10

NUT, FLANGE(JN5)

95707-08500-00

$3.13

11

WASHER (853)

90201-08326-00

$8.49

12

BUSHING, REAR CUSHION

164-22216-00-00

$13.49

13

LABEL, TIRE

3RV-21668-A1-00

$4.47

14

SHOCK ABSORBER ASSY, REAR

2SA-22210-01-00

$201.99

15

BOLT, HEXAGON

97017-06016-00

$8.49

16

WASHER, SPRING

92907-06100-00

Unavailable

17

WASHER, PLATE (4N0)

90201-126A7-00

Unavailable

18

WASHER, PLATE (4X4)

90201-067A0-00

Unavailable

19

BOLT, FLANGE

90105-08121-00

Unavailable
