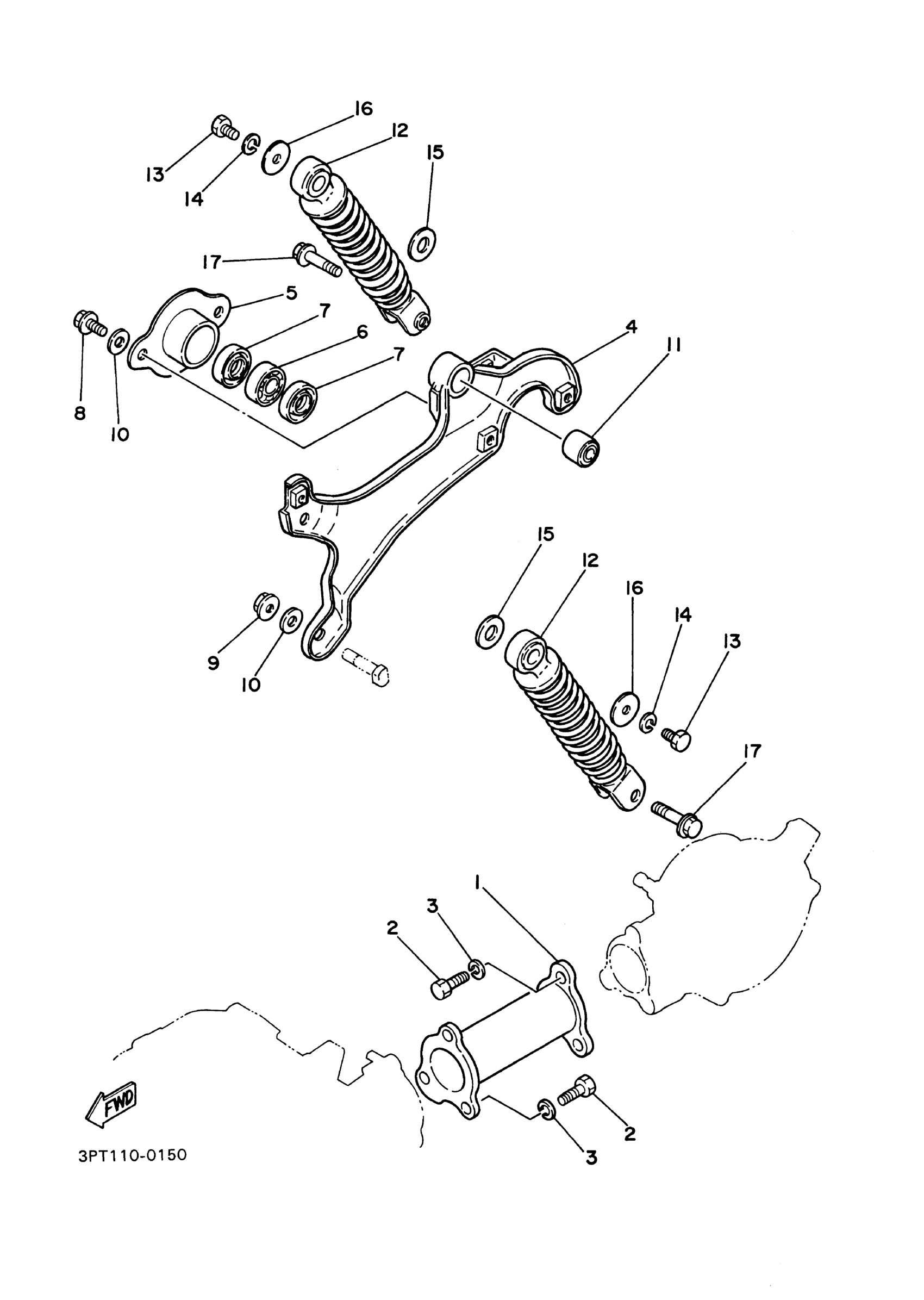

Yamaha PW50S1 (PW50) 5PG7 2004 REAR ARM SUSPENSION Diagram

REAR ARM COMP.

3L7-22110-00-98

Unavailable

BOLT, HEXAGON (3L6)

90101-08461-00

$5.60

WASHER(JN5)

92907-08100-00

$8.49

REAR ARM COMP.

4X4-22110-10-00

Unavailable

END 1

4J2-22174-01-00

$42.99

BEARING(82M)

93306-20117-00

$34.99

OIL SEAL (4J2)

93106-24018-00

$11.49

BOLT WASHER BASED (1J7)

90105-08066-00

Unavailable

NUT, FLANGE(JN5)

95707-08500-00

$3.13

WASHER (853)

90201-08326-00

$8.49

BUSHING, REAR CUSHION

164-22216-00-00

$13.49

SHOCK ABSORBER ASSY, REAR

3PT-22210-10-00

Unavailable

BOLT, HEXAGON

97017-06016-00

$8.49

WASHER, SPRING

92907-06100-00

$4.25

WASHER, PLATE (4N0)

90201-126A7-00

$9.49

WASHER, PLATE (4X4)

90201-067A0-00

Unavailable

BOLT, FLANGE

90105-08121-00

Unavailable
