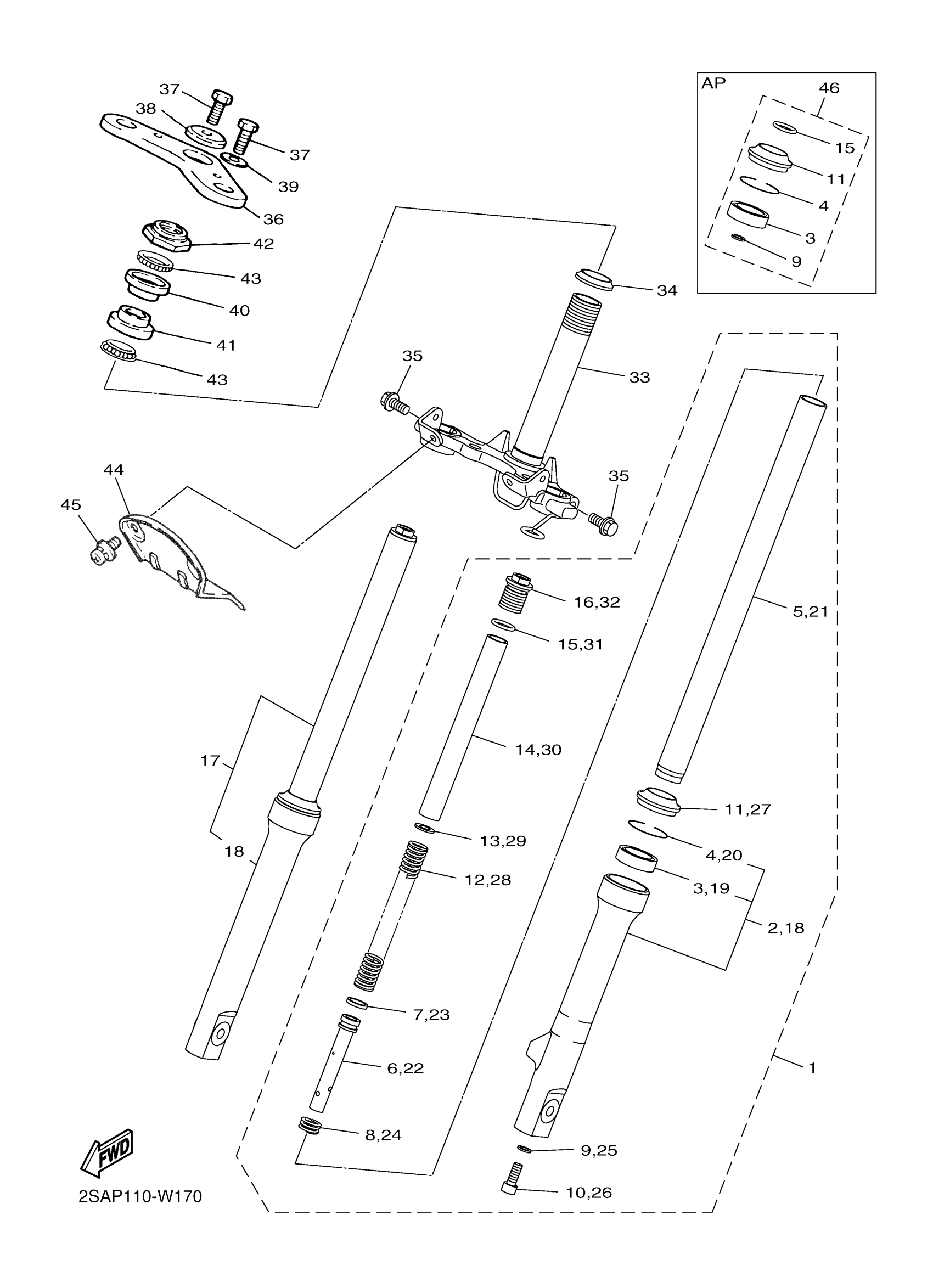

Yamaha PW50R2C (PW50 CA) BSL6 2024 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (L

2SA-23102-02-00

$174.99

2

OUTER TUBE COMP.

2SA-23106-00-00

Unavailable

3

OIL SEAL

2SA-23145-00-00

$11.99

4

RING, SNAP

4RT-F3153-00-00

$3.43

5

INNER TUBE COMP.1

2SA-23110-02-00

$108.99

6

PISTON, FRONT FORK

2SA-23171-00-00

$17.49

7

RING, PISTON

2SA-23157-00-00

Unavailable

8

SPRING, REBOUND

2SA-23151-00-00

Unavailable

9

GASKET

2SA-23479-00-00

$4.06

10

BOLT 2

2SA-23356-00-00

Unavailable

11

SEAL, DUST

2SA-23144-00-00

$7.99

12

SPRING, FRONT FORK

2SA-23141-00-00

Unavailable

13

WASHER

2SA-23427-00-00

Unavailable

14

SPACER

2SA-23118-00-00

Unavailable

15

O-RING

2SA-23147-00-00

$0.83

16

NUT

2SA-23357-00-00

Unavailable

17

FRONT FORK ASSY (R

2SA-23103-02-00

Unavailable

18

OUTER TUBE COMP.

2SA-23107-00-00

Unavailable

19

OIL SEAL

2SA-23145-00-00

$11.99

20

RING, SNAP

4RT-F3153-00-00

$3.43

21

INNER TUBE COMP.1

2SA-23110-02-00

$108.99

22

PISTON, FRONT FORK

2SA-23171-00-00

$17.49

23

RING, PISTON

2SA-23157-00-00

Unavailable

24

SPRING, REBOUND

2SA-23151-00-00

Unavailable

25

GASKET

2SA-23479-00-00

$4.06

26

BOLT 2

2SA-23356-00-00

Unavailable

27

SEAL, DUST

2SA-23144-00-00

$7.99

28

SPRING, FRONT FORK

2SA-23141-00-00

Unavailable

29

WASHER

2SA-23427-00-00

Unavailable

30

SPACER

2SA-23118-00-00

Unavailable

31

O-RING

2SA-23147-00-00

$0.83

32

NUT

2SA-23357-00-00

Unavailable

33

UNDER BRACKET COMP

2SA-23340-01-00

Unavailable

34

RACE, BALL 4

2SA-23414-00-00

Unavailable

34

RACE, BALL 4

3YJ-23414-00-00

Unavailable

35

BOLT, SMALL FLANGE

95027-08030-00

Unavailable

36

CROWN, HANDLE

4X4-23435-00-00

Unavailable

37

BOLT 1222345100

90105-10006-00

Unavailable

38

WASHER (1YJ)

90209-10160-00

Unavailable

39

WASHER, PLATE(42X)

90201-105H3-00

Unavailable

40

RACE, BALL 2

2SA-23412-00-00

Unavailable

41

RACE, BALL 3

2SA-23413-00-00

Unavailable

42

RACE, BALL 1

2SA-23411-00-00

Unavailable

43

BALL(4JP)

93505-32042-00

Unavailable

44

PLATE 1

4X4-21543-00-00

Unavailable

45

SCREW, W/WASHER (4L0)

90159-06060-00

Unavailable

46

FORK SEAL KIT (ONE FORK)

2SA-W003B-00-00

Unavailable
