2003 Yamaha PW50 (PW50R) Generator Diagram

← All diagrams

Find the part on the Generator diagram for your 2003 Yamaha PW50 (PW50R), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

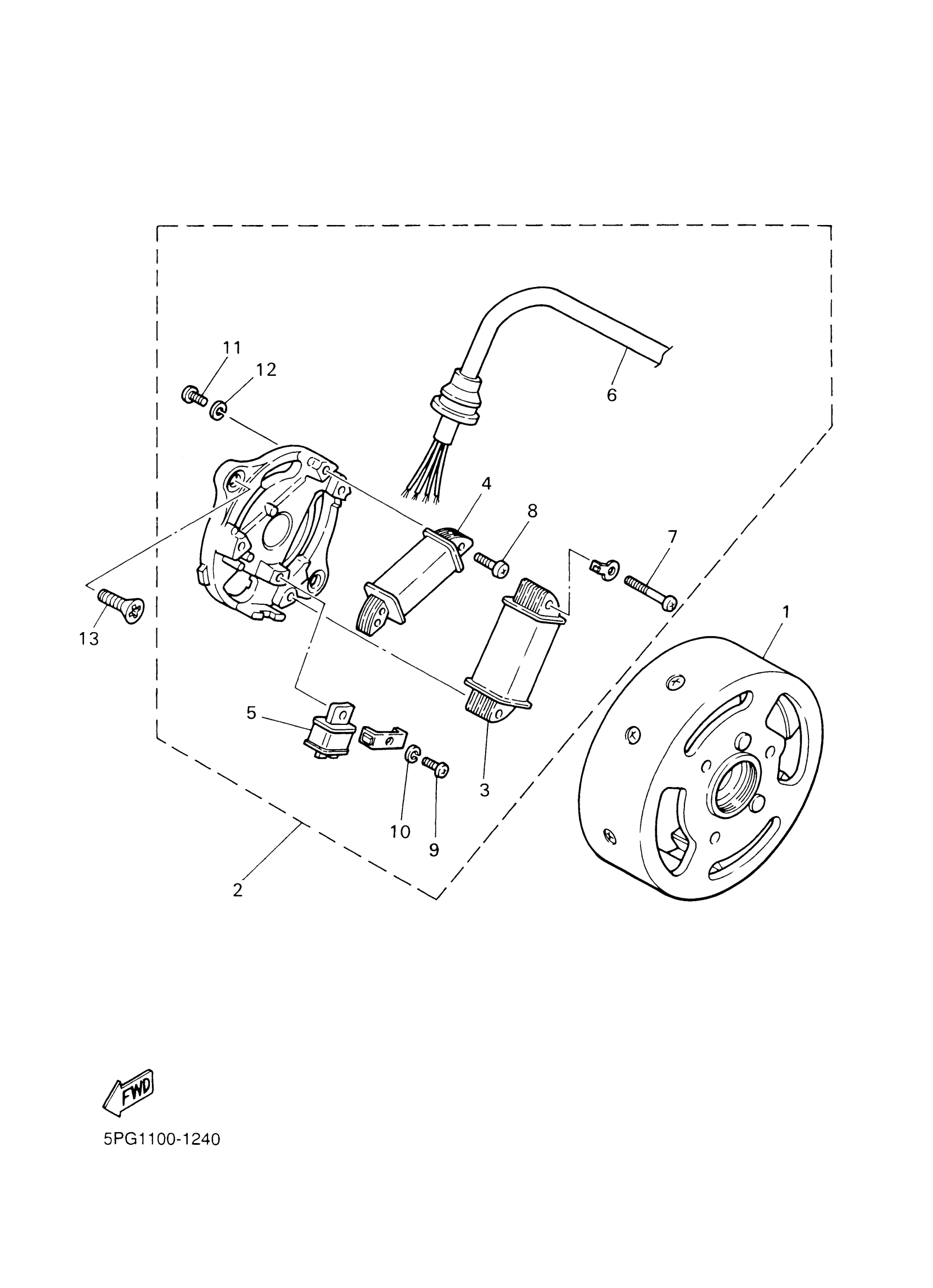

2003 Yamaha PW50 (PW50R) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ROTOR ASSY

3L6-85550-M1-00

—

$159.31

In stock

2

BASE ASSY

3PT-85560-03-00

1
Out of stock

3

COIL, LIGHTING 1

4X4-81313-M0-00

—

$77.86

In stock

4

COIL, CHARGE

4Y4-85520-M1-00

—
Out of stock

5

PULSER ASSY

3L5-85580-M0-00

1

$66.05

In stock

6

CORD ASSY

3PT-8131X-00-00

—

$40.77

In stock

7

SCREW, PAN HEAD

98517-04025-00

1

$2.94

In stock

8

SCREW, PAN HEAD

98517-04012-00

1

$3.28

In stock

9

SCREW, PAN HEAD(6G8)

98507-04010-00

1

$3.26

In stock

10

WASHER(6TA)

92907-04100-00

1

$5.98

In stock

11

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

12

WASHER(6TA)

92907-04100-00

1

$5.98

In stock

13

SCREW, FLAT HEAD(4EM)

98707-06016-00

1

$6.68

In stock
← Electrical 1 Handle Switch Lever →
