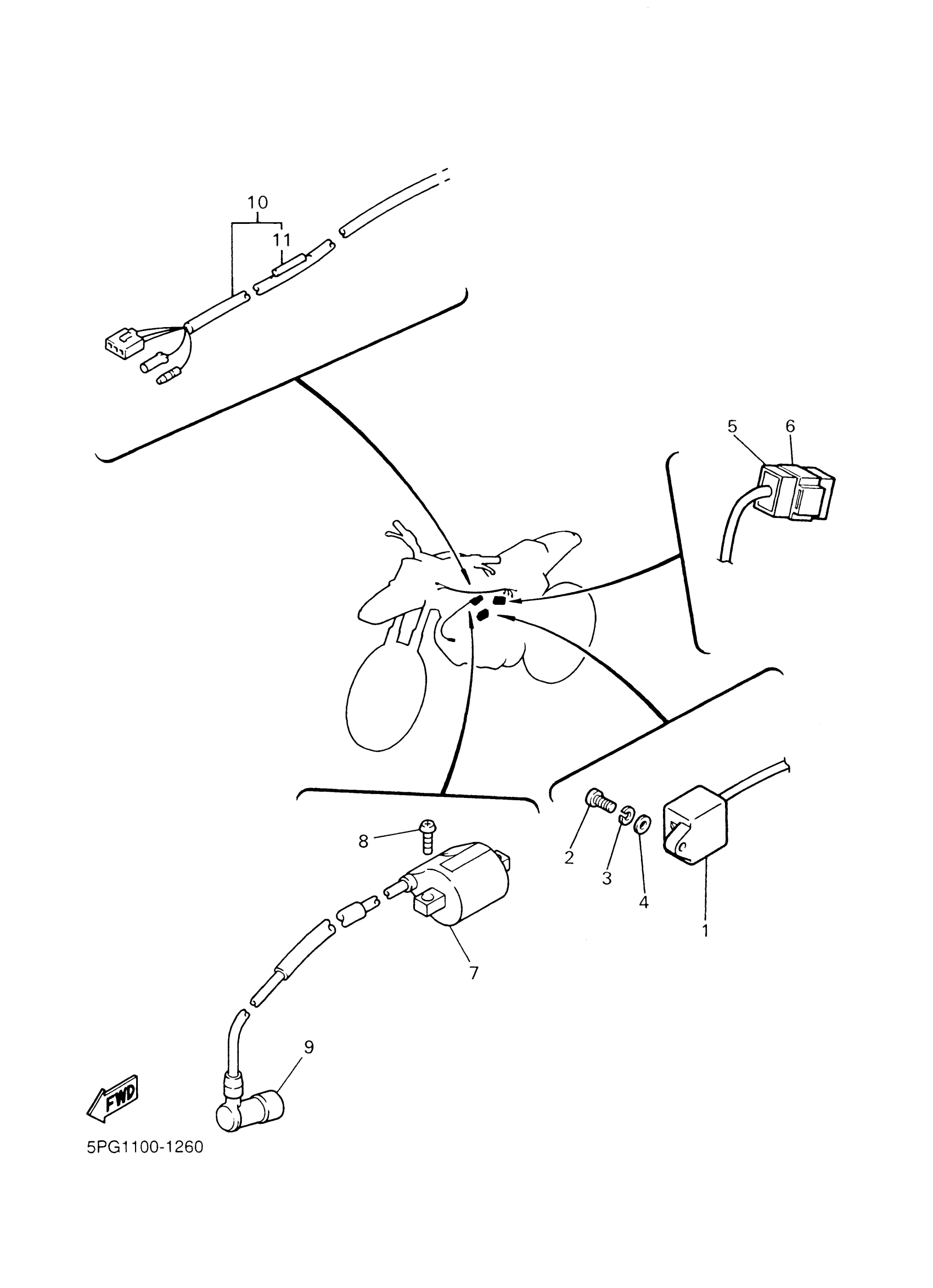

Yamaha PW50R (PW50) 5PG5 2003 ELECTRICAL 1 Diagram

#

Description
Price

1

C.D.I. UNIT ASSY

3PT-85540-00-00

$57.57

2

SCREW, PAN HEAD(3TJ)

98507-06016-00

$2.27

3

WASHER, SPRING

92907-06100-00

$0.97

4

WASHER(6TA)

92907-06600-00

$0.73

5

CONTROL UNIT ASSY

3PT-85590-00-00

Unavailable

6

BAND

4J2-85546-00-00

$9.64

7

IGNITION COIL ASSY

3KJ-82310-13-00

Unavailable

8

SCREW, PAN HEAD(3TJ)

98507-06016-00

$2.27

9

PLUG CAP ASSY

166-82370-20-00

$30.77

10

WIRE HARNESS ASSY

3PT-82590-10-00

Unavailable

11

RECTIFIER 2

3K7-81980-00-00

Unavailable
