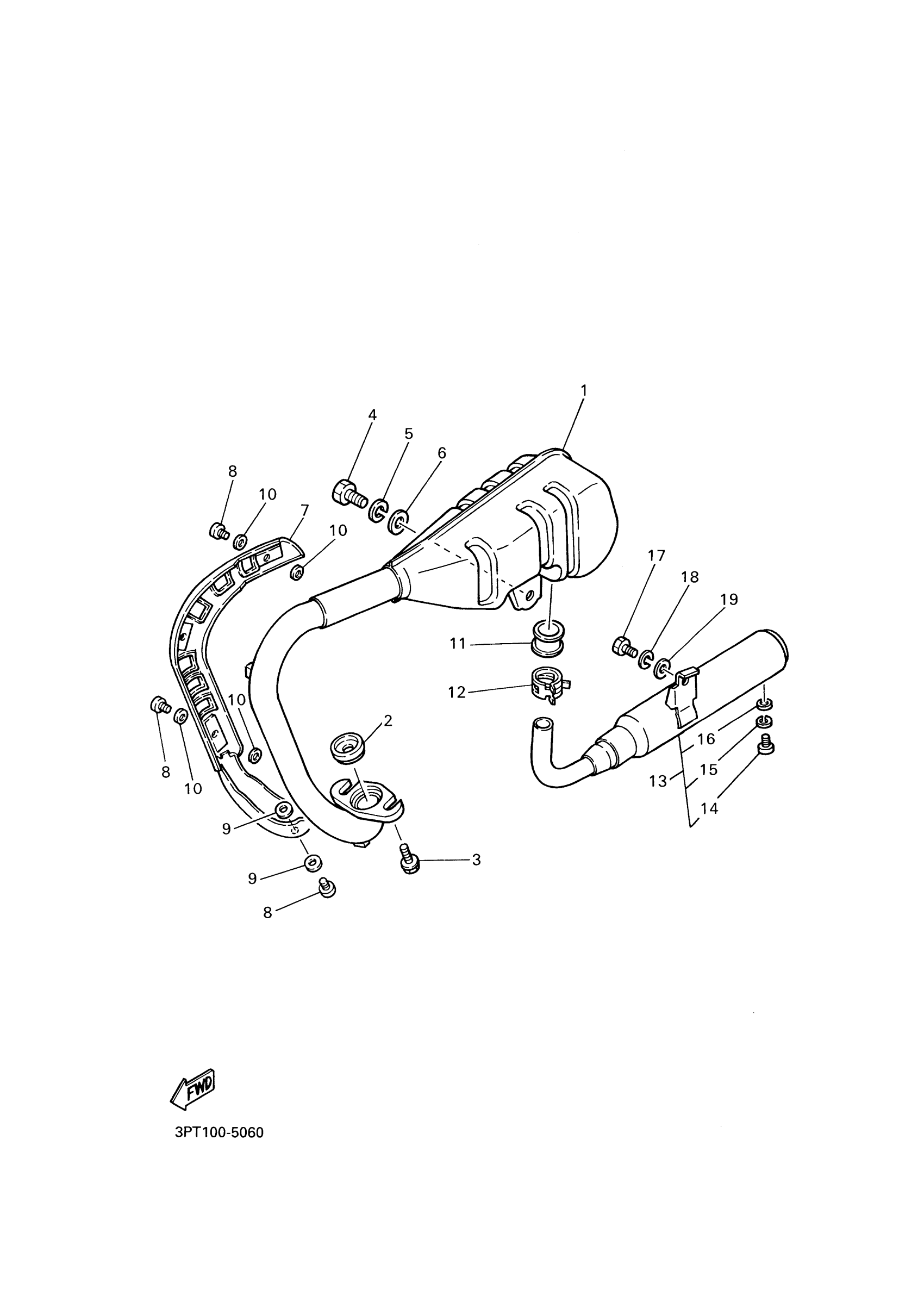

Yamaha PW50P2C (PW50 CA) BSL2 2023 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASS'Y

4X4-14610-01-00

$166.72

2

GASKET, EXHAUST PIPE

4X4-14623-11-00

Unavailable

3

SCREW, HEXAGON

90153-06011-00

$5.75

4

BOLT, HEXAGON

97017-08020-00

$5.96

5

WASHER(JN5)

92907-08100-00

$5.59

6

WASHER(6TA)

92907-08600-00

$2.34

7

PROTECTOR ASSY

4X4-14708-00-00

$53.34

8

SCREW, PAN HEAD(3AH)

98507-05006-00

$2.52

9

WASHER, PLATE(4DN)

90202-04214-00

$5.75

10

WASHER, PROTECTOR

3RV-14766-00-00

$5.37

11

GASKET, MUFFLER

4X4-14714-00-00

$4.40

12

CLIP (4X4)

90467-22048-00

$5.75

13

SILENCER ASSY

4X4-14750-00-00

$151.15

14

SCREW, PAN

98517-06008-00

$6.22

15

WASHER, SPRING

92907-06100-00

$0.98

16

WASHER(6TA)

92907-06600-00

Unavailable

17

BOLT, HEXAGON

97017-06016-00

Unavailable

18

WASHER, SPRING

92907-06100-00

$0.98

19

WASHER(6TA)

92907-06600-00

Unavailable
