2002 Yamaha PW50 (PW50P) Rear Wheel Diagram

← All diagrams

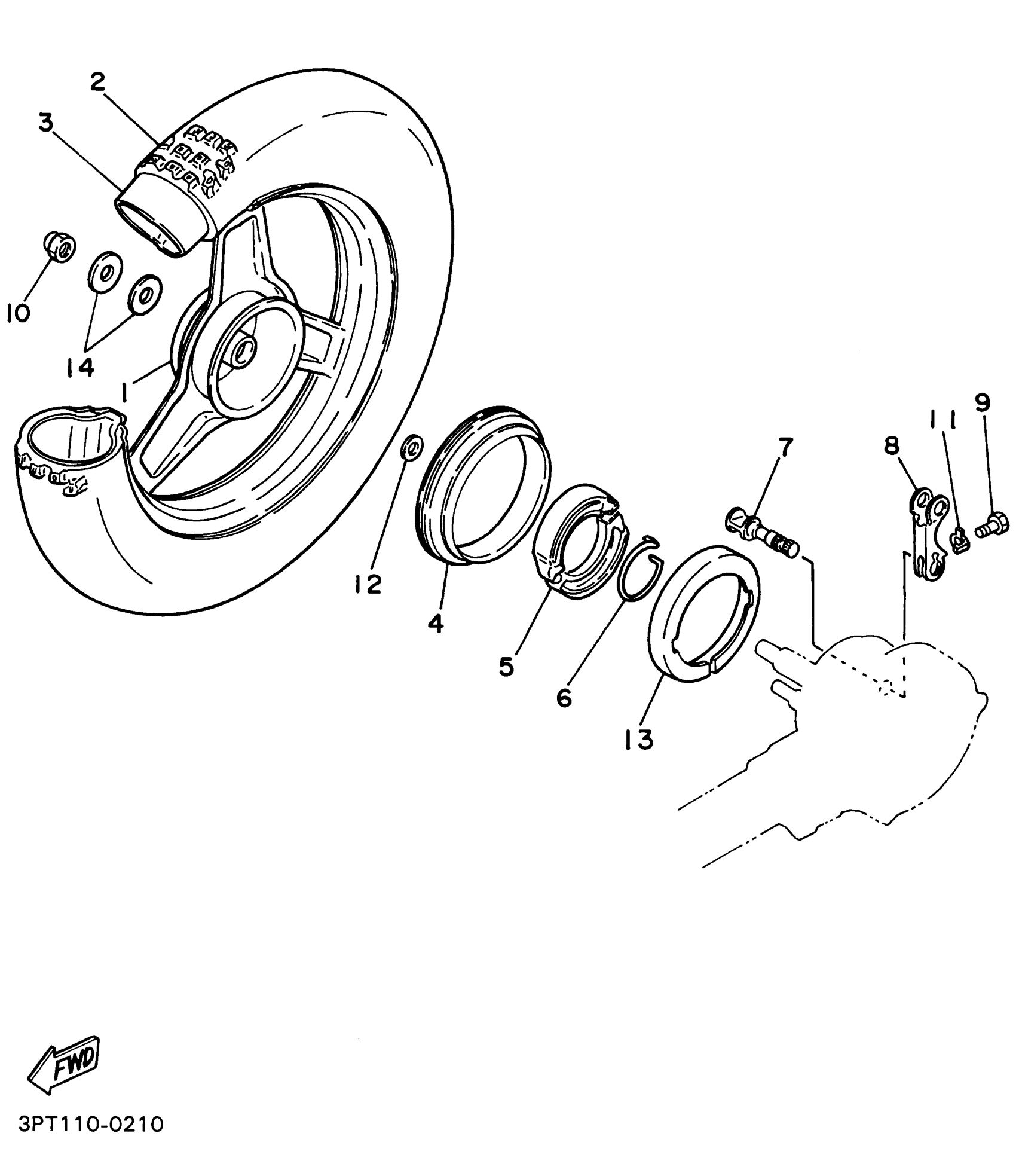

Find the part on the Rear Wheel diagram for your 2002 Yamaha PW50 (PW50P), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Yamaha PW50 (PW50P) Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REAR WHEEL COMP.

5M0-25390-01-UJ

—
Out of stock

2

TIRE (INOUE 2.50-10)

94125-10650-00

1

$49.92

In stock

2

1

$49.92

In stock

3

TUBE (2.50-10)(3LL)

94225-10270-00

1

$24.63

In stock

4

RING 1

2T4-25185-00-00

1

$19.43

In stock

5

BRAKE SHOE KIT

3PT-W253A-10-00

1

$20.48

In stock

6

SPRING, SHOE RETURN

2E9-25133-00-00

1

$7.34

In stock

7

CAM SHAFT

3L5-25351-00-00

—

$32.25

In stock

8

LEVER, CAMSHAFT REAR

3L5-25355-00-00

1

$27.60

In stock

9

BOLT (2E9)

90101-05396-00

—

$5.89

In stock

10

NUT, SELF-LOCKING(1KH)

90185-12134-00

1

$10.11

In stock

11

WASHER, LOCK

2E9-25412-00-00

—

$6.38

In stock

12

WASHER, PLATE (4L0)

90201-154E8-00

1

$6.17

In stock

13

RING 2

4X4-25336-00-00

1

$21.12

In stock

14

COLLAR (4J2)

90387-125A5-00

1

$10.12

In stock
