2002 Yamaha PW50 (PW50P) Front Wheel Diagram

← All diagrams

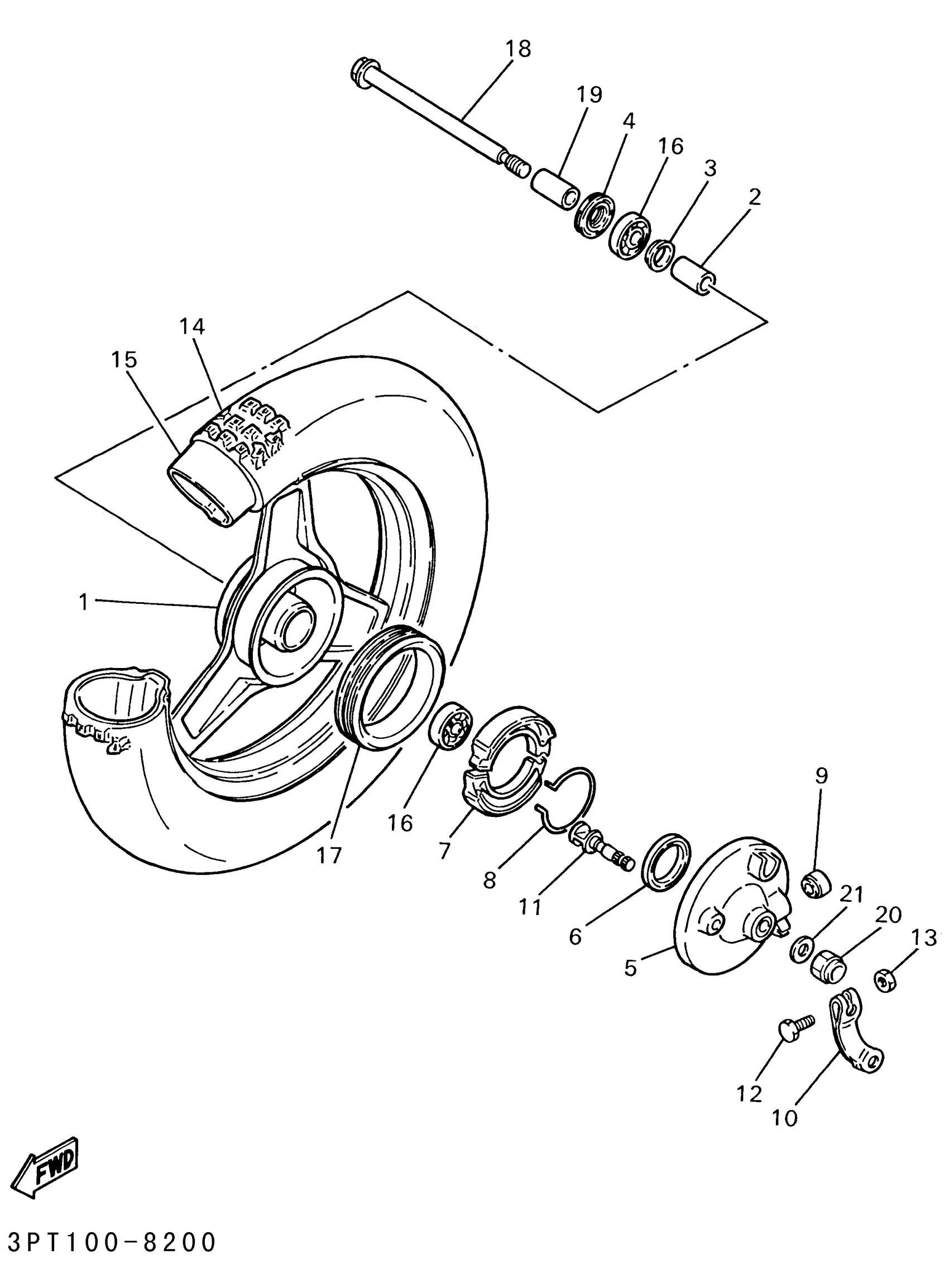

Find the part on the Front Wheel diagram for your 2002 Yamaha PW50 (PW50P), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Yamaha PW50 (PW50P) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WHEEL COMP.

5M0-25180-01-UJ

1
Out of stock

2

SPACER

90560-10173-00

1

$11.78

In stock

3

FLANGE, SPACER 2

2E9-25116-00-00

1

$6.38

In stock

4

OIL SEAL (2E9)

93106-17015-00

1

$9.71

In stock

5

PLATE, BRAKE SHOE

2T4-25121-00-98

—
Out of stock

6

OIL SEAL(2JA)

93109-34057-00

1

$4.20

In stock

7

BRAKE SHOE KIT

3PT-W253A-10-00

1

$20.48

In stock

8

SPRING, SHOE RETURN

2E9-25133-00-00

1

$7.34

In stock

9

PLUG, TAPER (4X4)

90336-15033-00

1

$6.09

In stock

10

LEVER, CAMSHAFT 1

2T4-25155-00-00

—

$24.52

In stock

11

CAMSHAFT

2E9-25151-01-00

—

$27.91

In stock

12

BOLT(3JK)

97027-05020-00

1

$2.48

In stock

13

NUT, HEXAGON

95317-05600-00

1

$1.10

In stock

14

TIRE (INOUE 2.50-10)

94125-10650-00

1

$49.92

In stock

14

1

$49.92

In stock

15

TUBE (2.50-10)(3LL)

94225-10270-00

—

$24.63

In stock

16

BRG, R-B 6200

93306-20006-00

—
Out of stock

17

RING 1

2T4-25185-00-00

—

$19.43

In stock

18

AXLE, WHEEL

4N0-25181-01-00

—
Out of stock

19

COLLAR (2E9)

90387-10620-00

—
Out of stock

20

NUT, SELF LOCKING (3G1)

90185-10091-00

—

$6.62

In stock

21

—

$3.00

In stock
