2002 Yamaha PW50 (PW50P) OIL Pump Diagram

← All diagrams

Find the part on the OIL Pump diagram for your 2002 Yamaha PW50 (PW50P), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

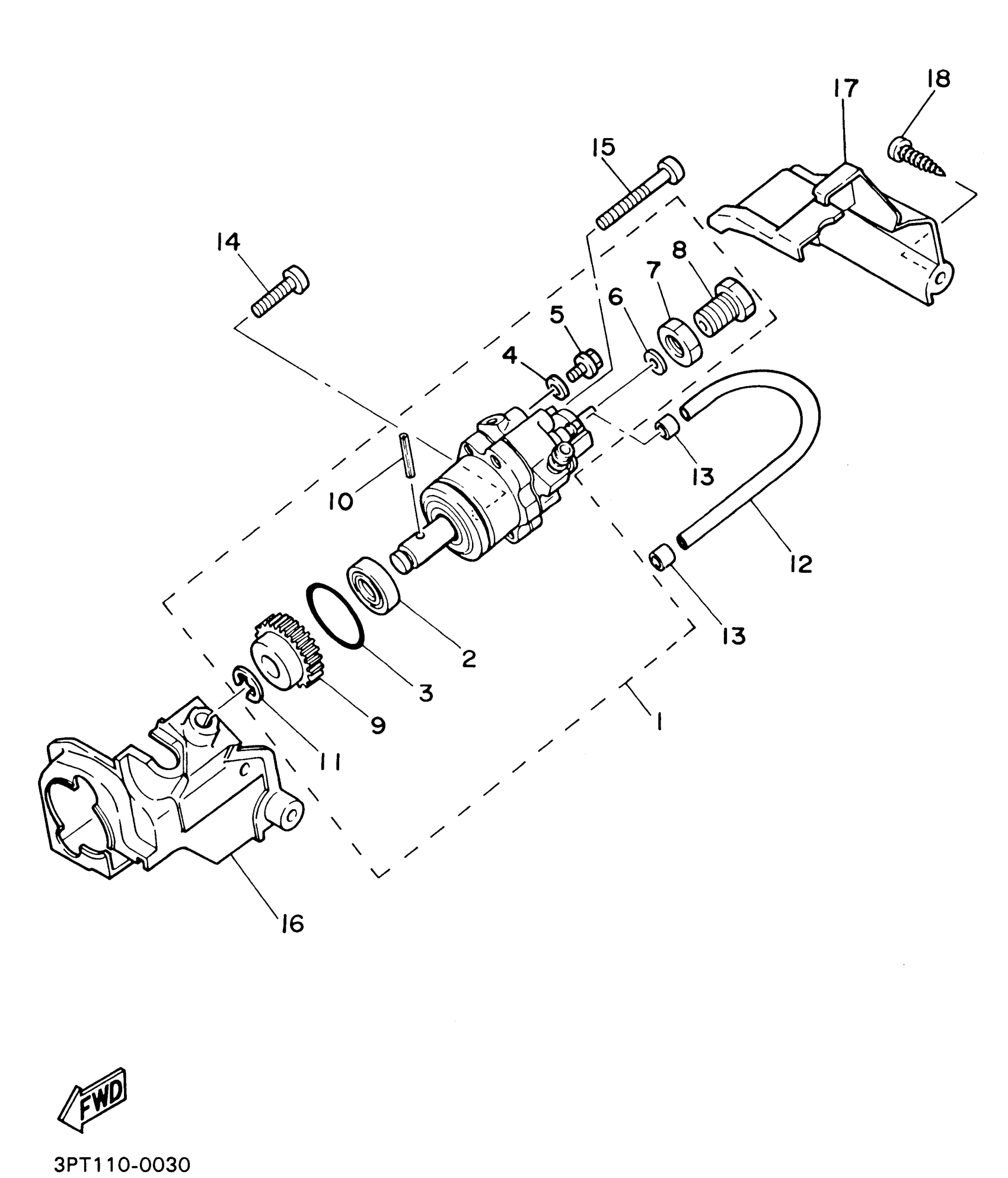

2002 Yamaha PW50 (PW50P) OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

OIL PUMP ASSY

3L5-13101-01-00

—

$103.95

In stock

2

OIL SEAL (J10)

93101-10090-00

1

$6.17

In stock

3

O-RING

93210-26240-00

1

$6.82

In stock

4

GASKET 137131870000

90430-04004-00

1
Out of stock

5

SCREW (3L5)

90149-04135-00

1

$0.96

In stock

6

PLATE, ADJUSTING

384-13138-00-00

1

$5.32

In stock

7

NUT

90170-10105-00

—

$3.20

In stock

8

BOLT, UNION (527 CKD)

90401-10029-00

—

$6.77

In stock

9

GEAR, WORM WHEEL (56T)

3L5-13124-00-00

—

$24.37

In stock

10

PIN, SPRING

91690-30014-00

1

$6.23

In stock

11

CIRCLIP

99080-07600-00

1

$2.89

In stock

12

PIPE, DELIVERY 1 (L200)

34M-13161-00-00

1

$6.58

In stock

13

CLIP (214-13164-00)

90468-02033-00

1
Out of stock

14

SCREW, PAN HEAD

98517-05020-00

1

$1.35

In stock

15

SCREW, PAN

98507-05035-00

1

$6.69

In stock

16

COVER, OIL PUMP

3L5-15416-00-00

—

$22.71

In stock

17

COVER, OIL PUMP 2

3L5-15426-00-00

—

$8.70

In stock

18

SCREW, PAN TAP.2

97707-50516-00

—

$0.54

In stock
