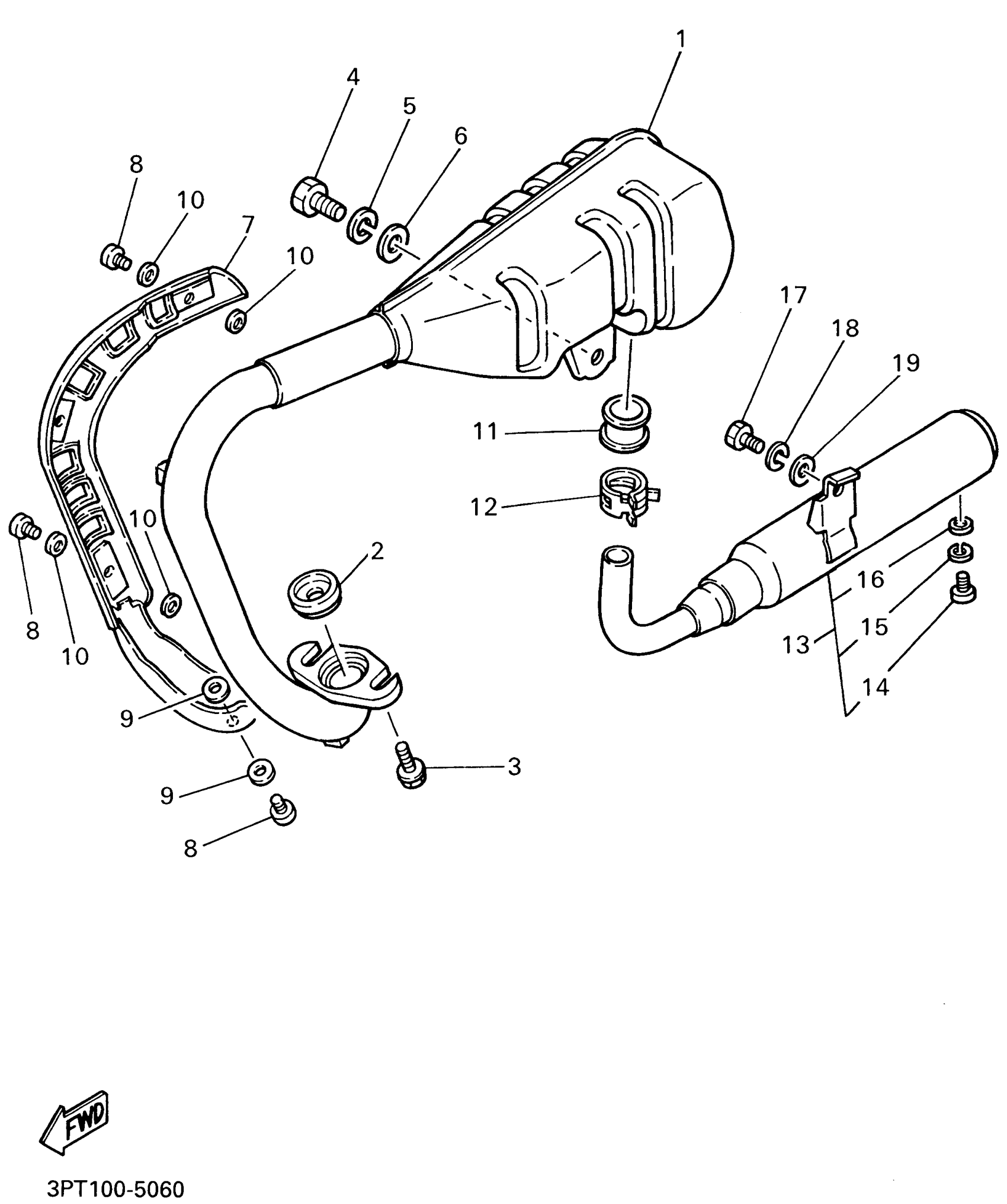

Find the part on the Exhaust diagram for your 2002 Yamaha PW50 (PW50P), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Yamaha PW50 (PW50P) Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EXHAUST PIPE ASS'Y

4X4-14610-01-00

1

$178.19

In stock

2

GASKET, EXHAUST PIPE

4X4-14623-11-00

1
Out of stock

3

SCREW, HEXAGON(1YU)

90153-06061-00

1

$6.18

In stock

4

BOLT, HEXAGON

97017-08020-00

1
Out of stock

5

WASHER(JN5)

92907-08100-00

1

$5.98

In stock

6

WASHER(6TA)

92907-08600-00

1

$2.52

In stock

7

PROTECTOR ASSY

4X4-14708-00-00

1

$56.51

In stock

8

SCREW, PAN HEAD(3AH)

98507-05006-00

1

$2.69

In stock

9

WASHER, PLATE(4DN)

90202-04214-00

1

$6.17

In stock

10

WASHER, PROTECTOR

3RV-14766-00-00

1

$5.75

In stock

11

GASKET, MUFFLER

4X4-14714-00-00

1

$4.71

In stock

12

CLIP (4X4)

90467-22048-00

1

$6.17

In stock

13

SILENCER ASSY

4X4-14750-00-00

1

$161.56

In stock

14

SCREW, PAN

98517-06008-00

1

$6.68

In stock

15

WASHER, SPRING

92907-06100-00

1
Out of stock

16

WASHER(6TA)

92907-06600-00

—

$0.78

In stock

17

BOLT, HEXAGON

97017-06016-00

—

$6.18

In stock

18

WASHER, SPRING

92907-06100-00

1
Out of stock

19

WASHER(6TA)

92907-06600-00

—

$0.78

In stock
