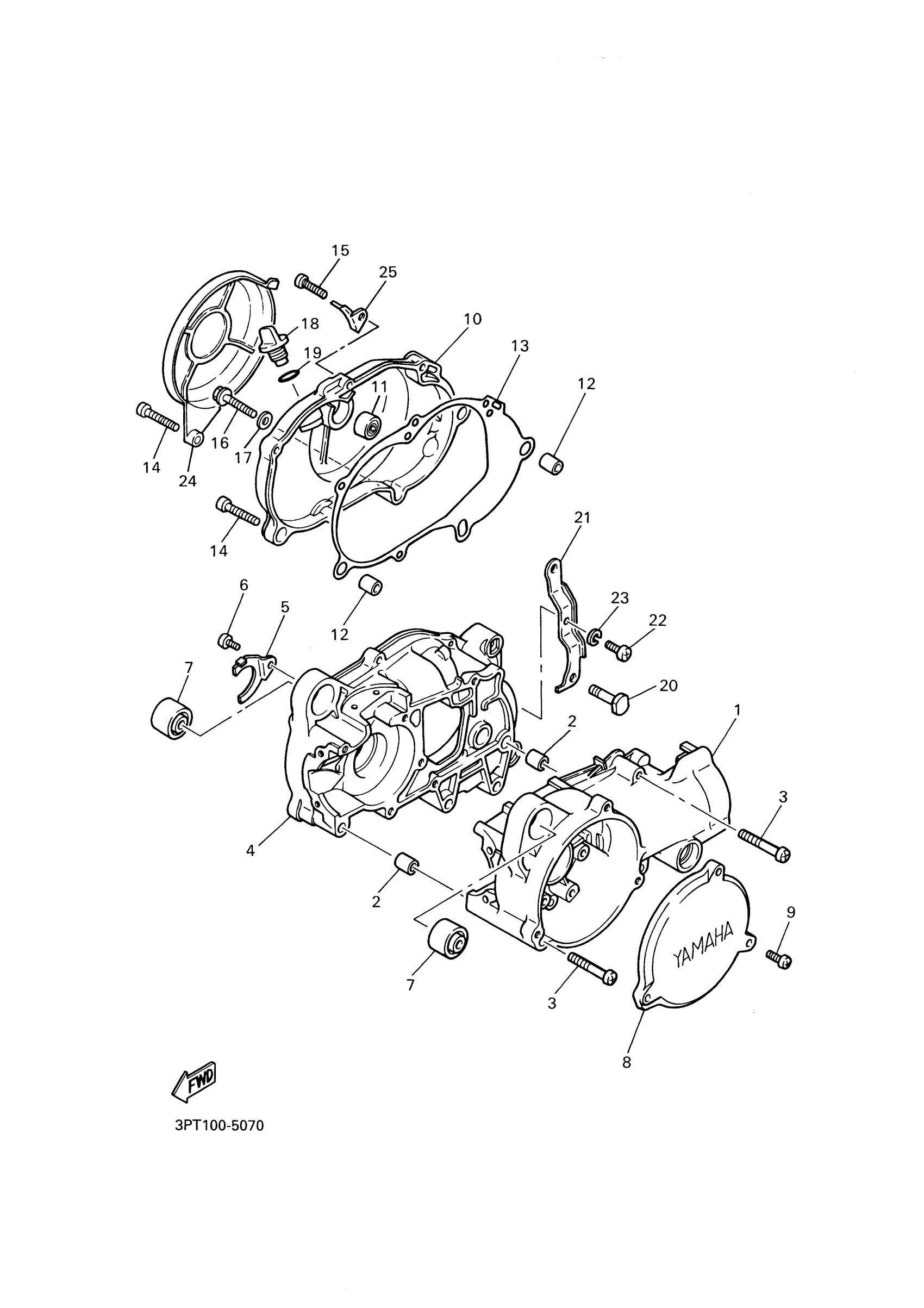

Yamaha PW50N2C (PW50 CA) 2SAW 2022 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE 1

4X4-15111-00-00

Unavailable

2

PIN, DOWEL

99530-12016-00

$3.85

3

SCREW, PAN

98507-06045-00

$2.46

4

CRANKCASE 2

4J2-15121-01-00

Unavailable

5

HOLDER

3L5-15128-00-00

Unavailable

6

SCREW, PAN

98517-06012-00

$2.93

7

DAMPER, ENGINE MOUNT

2E9-15316-00-00

$23.77

8

COVER, GENERATOR

4J2-15415-00-00

$30.52

9

SCREW, PAN HEAD

98507-05014-00

$4.91

10

COVER, CRANKCASE 2

4X4-15421-02-00

Unavailable

11

BUSH 1

3L5-17112-02-00

$14.05

12

PIN, DOWEL

99530-12016-00

$3.85

13

GASKET, CRANKCASE COVER 1

3L5-15451-12-00

$15.96

14

SCREW, PAN

98507-06035-00

$5.76

15

SCREW, PAN HEAD (76T)

98517-06025-00

$2.90

16

BOLT, FLANGE

95817-08035-00

Unavailable

17

GASKET

90430-08119-00

Unavailable

18

PLUG, OIL

4J2-15363-10-00

Unavailable

19

O-RING (26H)

93210-14579-00

Unavailable

20

BOLT (4J2)

90109-08582-00

Unavailable

21

PLATE

4J2-15113-00-00

Unavailable

22

SCREW, PAN

98517-06012-00

$2.93

23

WASHER, SPRING

92907-06100-00

Unavailable

24

PROTECTOR

4X4-15491-00-00

Unavailable

25

CLAMP 2

4X4-15484-00-00

Unavailable
