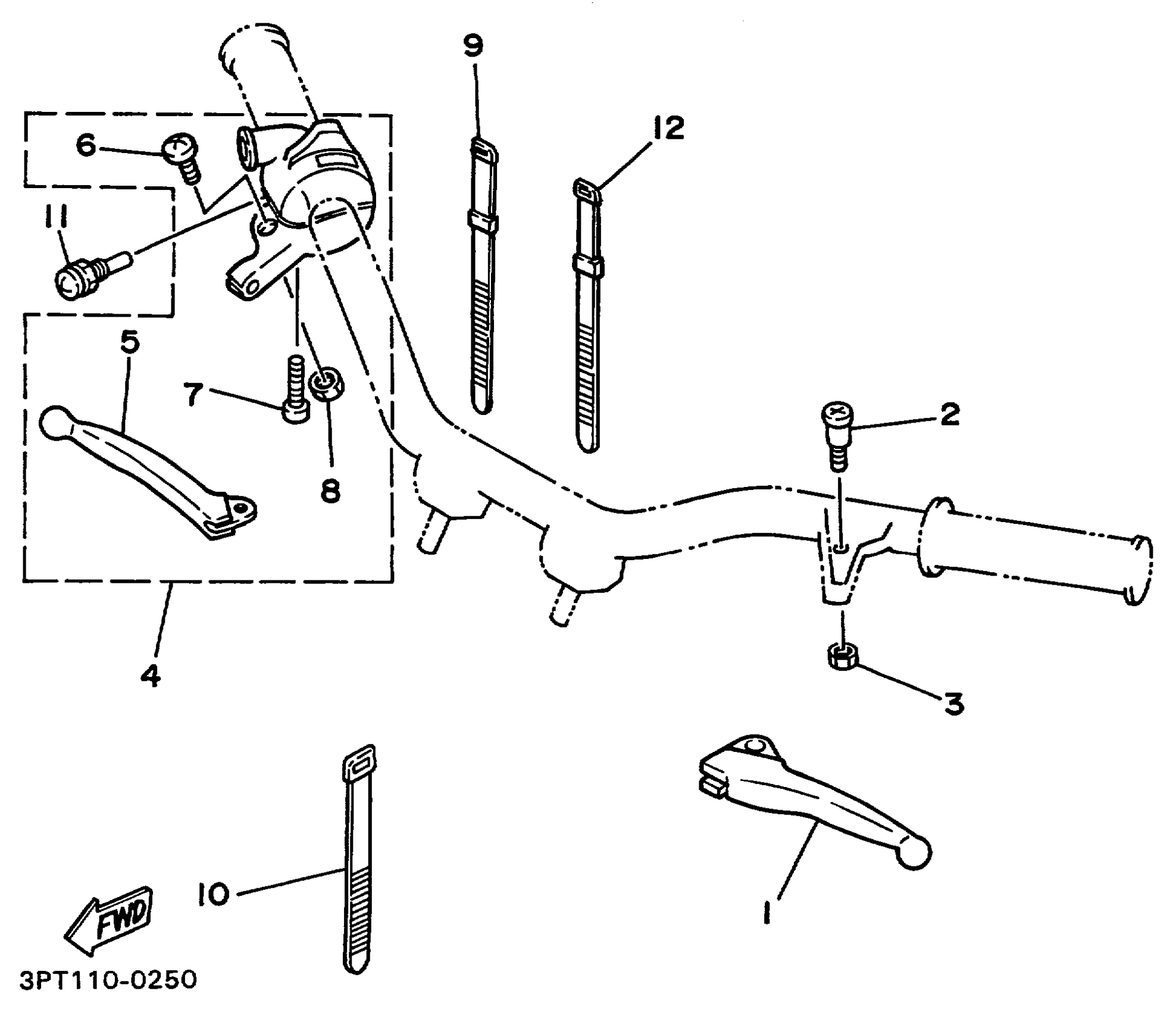

Yamaha PW50L1 (Y-ZINGER) 3PTU 1999 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

LEVER 1

2T4-83912-03-00

$15.57

2

SCREW (4X4)

90149-05162-00

$5.08

3

NUT, U

95617-05100-00

$6.22

4

LEVER HOLDER ASSY (RIGHT)

3PT-82920-01-00

$66.68

5

LEVER 2

2T4-83922-03-00

$14.79

6

SCREW (2E9)

90149-05119-00

$6.45

7

NUT, U

95617-05100-00

$6.22

8

SCREW, PAN HEAD(4MY)

98507-05025-00

$5.76

9

BAND, SWITCH CORD

437-83936-01-00

$4.56

10

BAND, SWITCH CORD

437-83936-11-00

$3.34

11

STOPPER

4X4-26257-00-00

$7.03

12

CLAMP

90465-10098-00

$1.68
