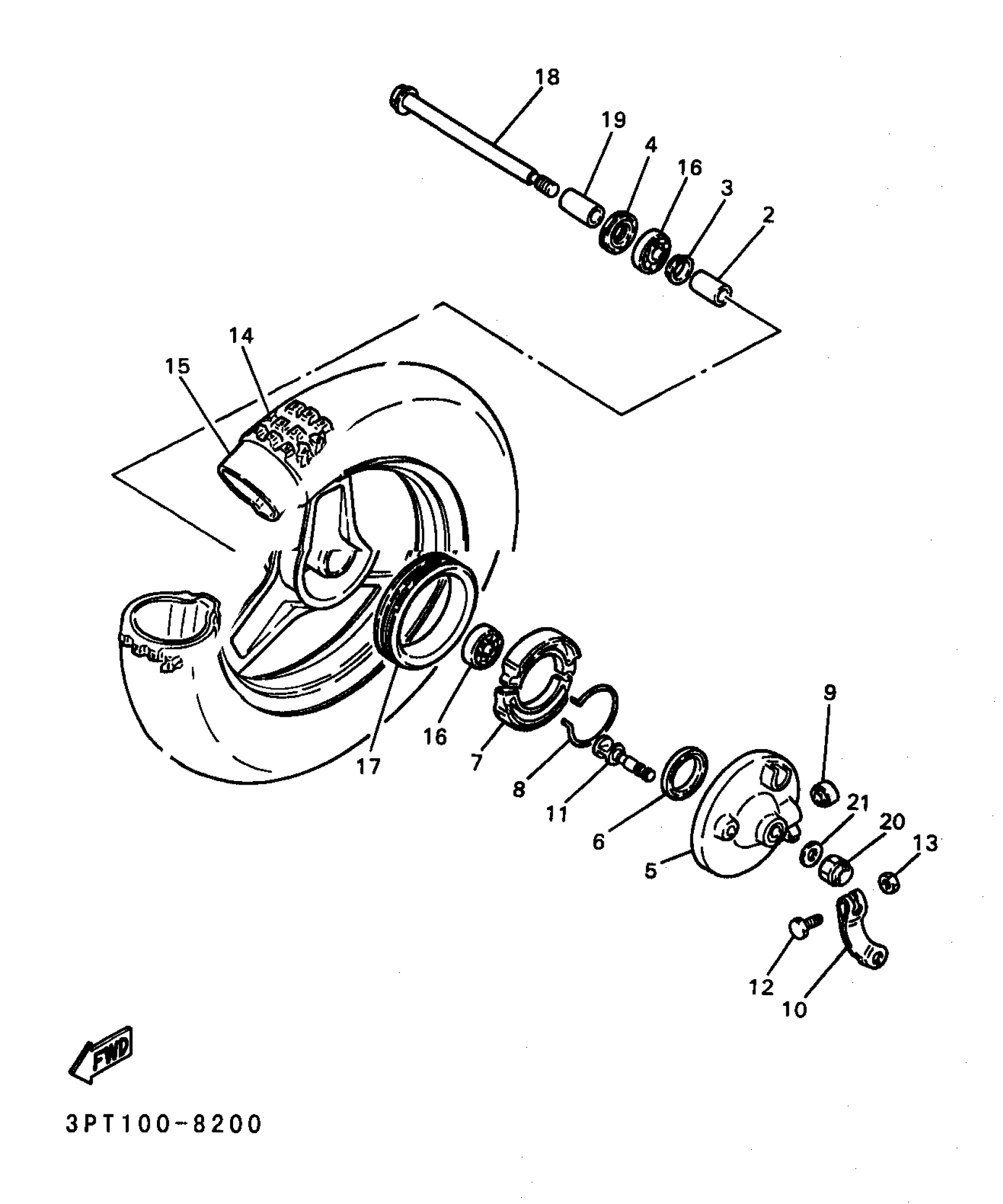

Yamaha PW50K1 (Y-ZINGER) 1998 FRONT WHEEL Diagram

WHEEL COMP.

5M0-25180-01-UJ

$175.99

SPACER

90560-10173-00

$14.99

FLANGE, SPACER 2

2E9-25116-00-00

$7.99

OIL SEAL (2E9)

93106-17015-00

$11.49

PLATE, BRAKE SHOE

2T4-25121-00-98

Unavailable

OIL SEAL(2JA)

93109-34057-00

$5.60

BRAKE SHOE KIT

3PT-W253A-10-00

$18.49

SPRING, SHOE RETURN

2E9-25133-00-00

$7.99

PLUG, TAPER (4X4)

90336-15033-00

$7.49

LEVER, CAMSHAFT 1

2T4-25155-00-00

Unavailable

CAMSHAFT

2E9-25151-01-00

Unavailable

BOLT(3JK)

97027-05020-00

$3.29

NUT, HEXAGON

95317-05600-00

$2.34

TIRE (INOUE 2.50-10)

94125-10650-00

Unavailable

TUBE (2.50-10)(3LL)

94225-10270-00

$28.99

BRG, R-B 6200

93306-20006-00

Unavailable

RING 1

2T4-25185-00-00

Unavailable

AXLE,WHEEL

99999-03089-00

Unavailable

COLLAR (2E9)

90387-10620-00

Unavailable

NUT, SELF LOCKING (3G1)

90185-10091-00

Unavailable

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable
