Description

Price

1

REAR ARM COMP.

3L7-22110-00-98

Unavailable

2

BOLT, HEXAGON (3L6)

90101-08461-00

$5.60

3

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

4

REAR ARM COMP.

4X4-22110-10-00

Unavailable

5

END 1

4J2-22174-01-00

$42.99

6

BEARING(82M)

93306-20117-00

$34.99

7

OIL SEAL (4J2)

93106-24018-00

$11.49

8

BOLT WASHER BASED (1J7)

90105-08066-00

Unavailable

9

NUT, FLANGE

95704-08500-00

$8.49

10

WASHER (853)

90201-08326-00

$8.49

11

BUSHING, REAR CUSHION

164-22216-00-00

$13.49

12

SHK/ABS ASSEMBLY, REARASSEMBLY REAR

4X4-22210-00-26

Unavailable

12

SHK/ABS ASY, REAR

3PT-22210-00-33

Unavailable

13

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

14

WASHER, SPRING

92995-06100-00

Unavailable

15

WASHER, PLATE (4N0)

90201-126A7-00

Unavailable

16

WASHER, PLATE (4X4)

90201-067A0-00

Unavailable

17

BOLT, FLANGE

90105-08121-00

Unavailable

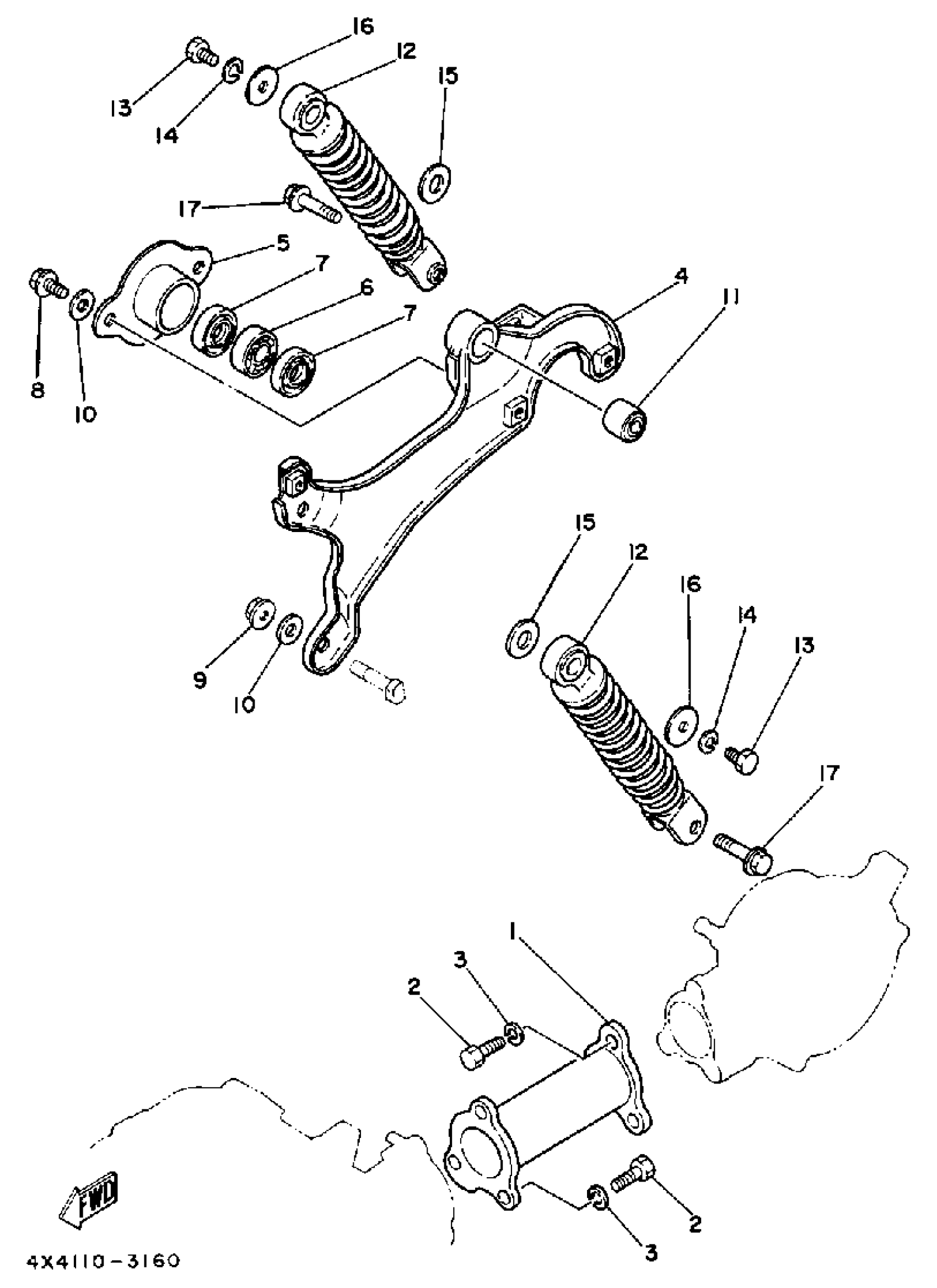

Yamaha PW50K (PW50) 1983 SWING ARM-REAR SHOCKS Diagram

REAR ARM COMP.

BOLT, HEXAGON (3L6)

YBS67-8 WASHER, SPRING

REAR ARM COMP.

END 1

BEARING(82M)

OIL SEAL (4J2)

BOLT WASHER BASED (1J7)

NUT, FLANGE

WASHER (853)

BUSHING, REAR CUSHION

SHK/ABS ASSEMBLY, REARASSEMBLY REAR

SHK/ABS ASY, REAR

BOLT, HEXAGON DEEP RECESS

WASHER, SPRING

WASHER, PLATE (4N0)

WASHER, PLATE (4X4)

BOLT, FLANGE
