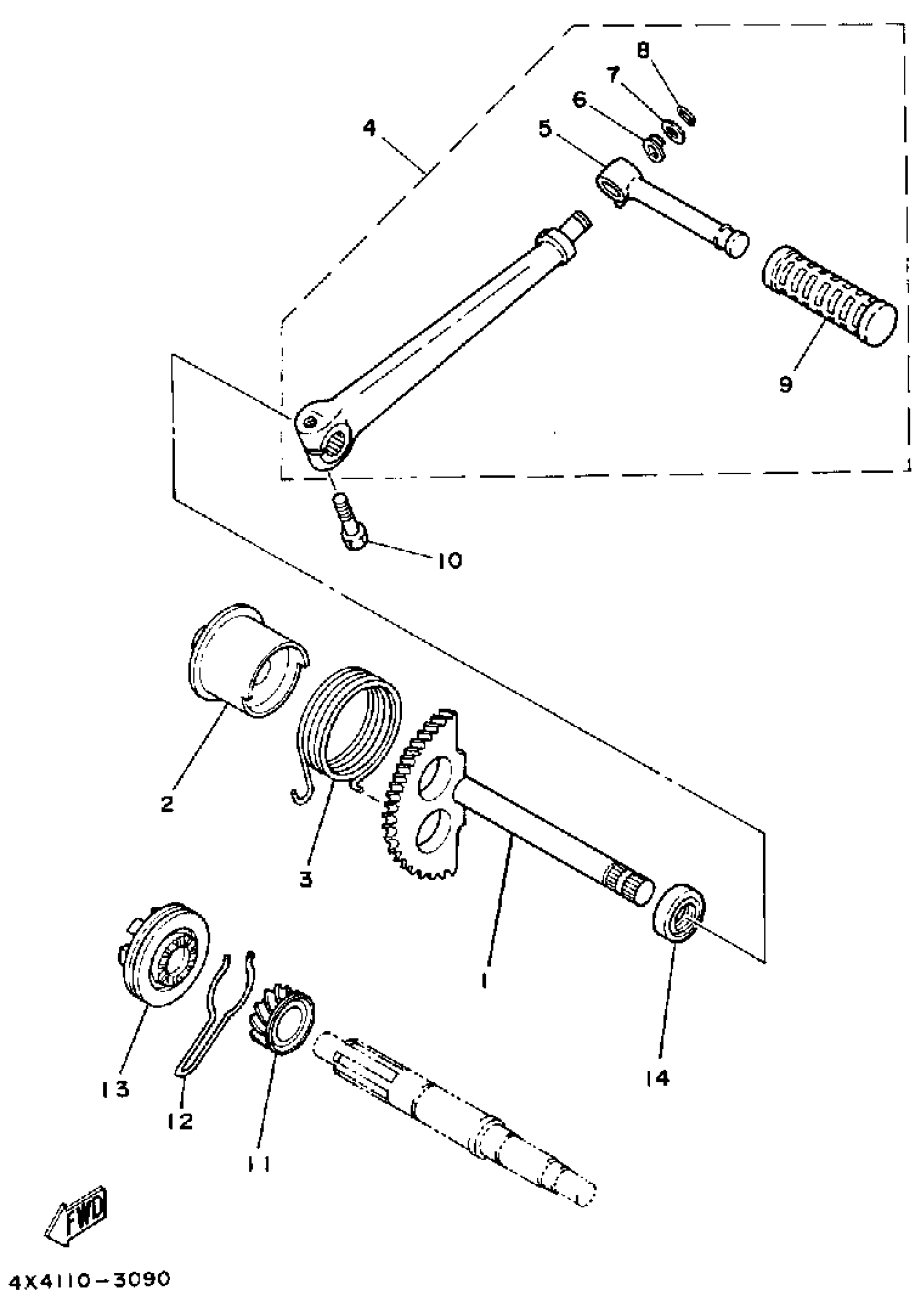

Yamaha PW50K (PW50) 1983 STARTER Diagram

KICK SHAFT ASSY

3L5-15601-01-00

$42.99

GUIDE, SPRING

3L5-15664-00-00

$20.99

SPRING, TORSION (3L5)

90508-28399-00

$12.49

KICK CRANK ASSY

17J-15620-01-00

$124.99

KICK CRANK ASSEMBLY

34M-15620-00-00

Unavailable

LEVER, KICK

(4K5-15612-00-00)

Unavailable

SPRING, COMPRESSION (5L1)

90504-18031-00

$9.49

WASHER,SPEC'L SHAPE

90209-10210-00

Unavailable

. CIRCLIP, OUTER

93440-10028-00

Unavailable

COVER, KICK LEVER

156-15618-01-00

$7.99

BOLT, HEXAGON

97017-06025-00

$4.24

GEAR, KICK PINION (13T)

3L5-15631-00-00

$79.99

CLIP

3L5-15673-00-00

$7.99

GEAR, DRIVE

3L5-13178-00-00

$129.99

OIL SEAL (15X26X6-102)

93109-15001-00

$8.49
