1983 Yamaha PW50 (PW50K) Side Cover-Tool Diagram

← All diagrams

Find the part on the Side Cover-Tool diagram for your 1983 Yamaha PW50 (PW50K), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

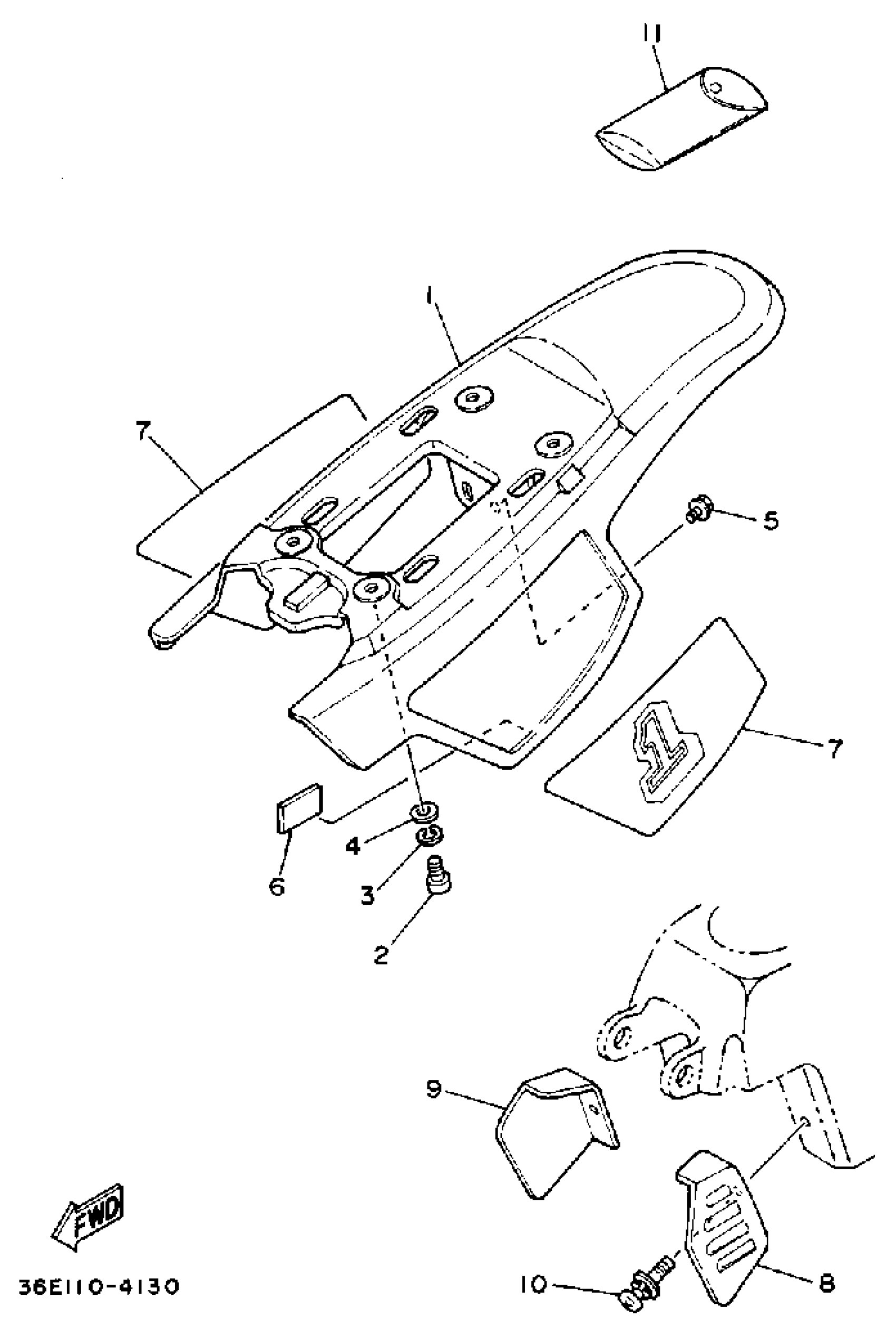

1983 Yamaha PW50 (PW50K) Side Cover-Tool Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, SIDE 1

4X4-21711-00-00

1
Out of stock

2

SCREW, PAN

98507-06014-00

1
Out of stock

3

WASHER, SPRING

92995-06100-00

1
Out of stock

4

WASHER, PLATE

90201-06M08-00

1
Out of stock

5

BOLT, WITH WASHER

90119-06242-00

1
Out of stock

6

DAMPER, LOCATING 1

4X4-24181-00-00

1
Out of stock

7

EMBLEM SET

4X4-21790-00-00

1
Out of stock

8

TOOL KIT

50W-28100-00-00

1
Out of stock
← Seat Side Cover-Tool →
