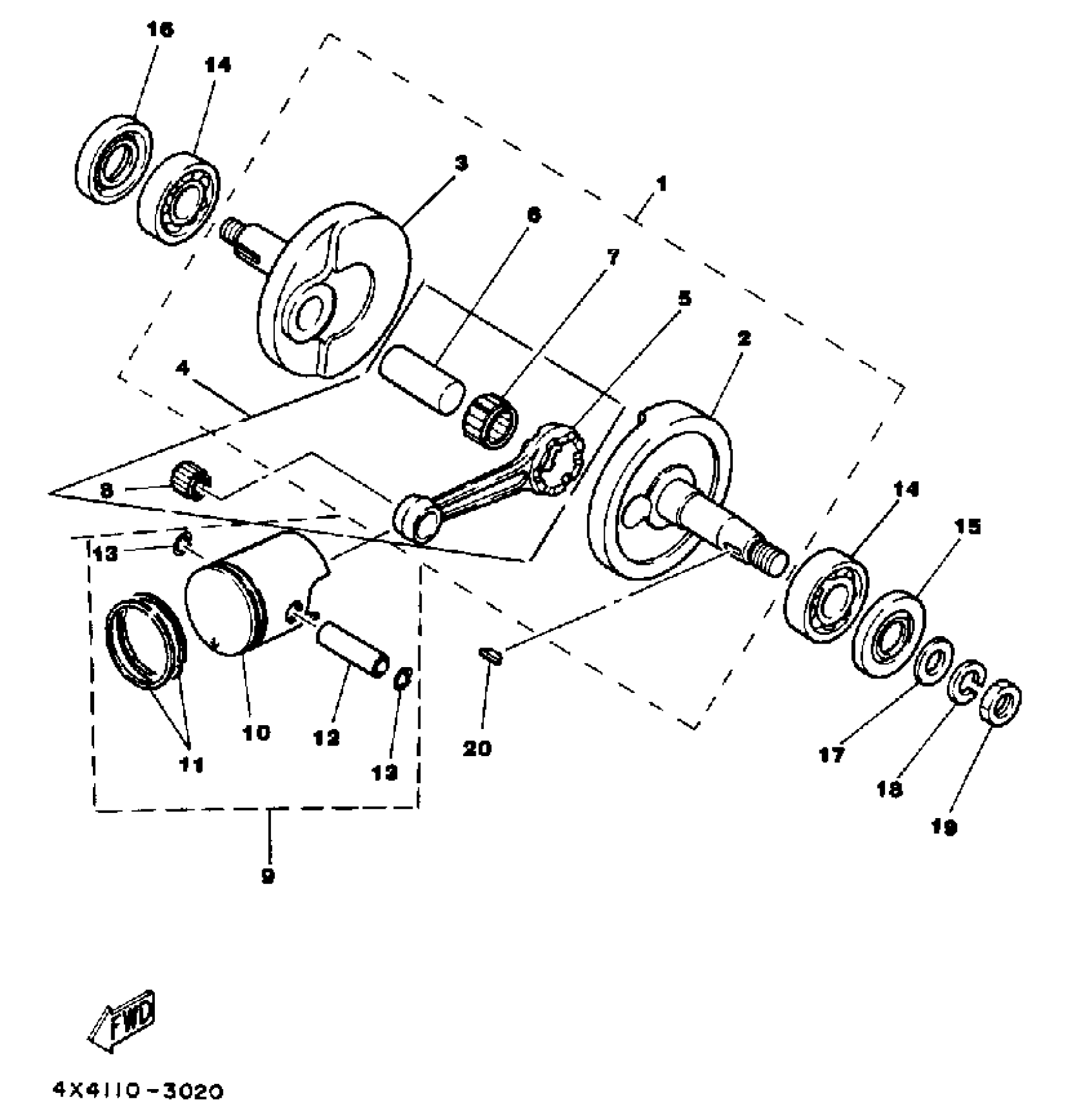

Yamaha PW50K (PW50) 1983 CRANKSHAFT-PISTON Diagram

CRANKSHAFT ASSY

3L5-11400-03-00

$186.99

CRANK (L.H)

3L5-11412-00-00

$102.99

CRANK 2

3L5-11422-02-00

Unavailable

. CONNECTING ROD ASSEMBLYASSY

2E9-11650-00-00

Unavailable

ROD, CONNECTING

2E9-11651-00-00

Unavailable

PIN, CRANK 1

1YU-11681-00-00

Unavailable

BRG,NEEDLE

93310-416N7-00

$36.99

BEARING (27V)

93310-210M0-00

$33.99

PISTON ASSY

3L5-11630-00-00

Unavailable

PISTON (STD)

18U-11631-00-A0

$88.99

PISTON (1ST O/S)

18U-11635-00-00

$91.99

PISTON (2ND O/S)

18U-11636-00-00

$92.99

PISTON RING SET (STD)

260-11601-03-00

$64.99

PISTON RING SET (1ST O/S)

260-11601-13-00

$64.99

PISTON RING SET (2ND O/S)

260-11601-23-00

$64.99

PIN, PISTON

3L5-11633-00-00

Unavailable

CIRCLIP 101116340000

93450-11021-00

Unavailable

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

Unavailable

BEARING(37F)

93306-20335-00

Unavailable

OIL SEAL (17X35X7-257)

93102-17067-00

Unavailable

OIL SEAL (2E9)

93102-23174-00

Unavailable

WASHER, PLATE(663)

92990-12600-00

Unavailable

YBS67-12 WASHER,SPRING

92990-12100-00

Unavailable

NUT, HEXAGON SMALL

95317-12700-00

Unavailable

KEY WOODRUFF 146115450000

90280-03017-00

Unavailable
