Description

Price

1

FUEL TANK COMP.

5PG-24110-00-00

$247.99

2

CAP ASSY

2FG-24610-10-00

$64.99

3

HOSE (L420)

90445-092K1-00

$12.49

4

FUEL COCK ASSY 1

4X4-24500-11-00

$29.99

5

GROMMET (4V1)

90480-18290-00

$8.49

6

WASHER, PLATE

90201-06747-00

$8.49

7

COLLAR (10V)

90387-077F4-00

$9.49

8

BOLT(3GG)

97017-06090-00

$2.82

9

NUT, FLANGE(4MV)

95707-06500-00

$1.23

10

CAP

5PG-2467E-00-00

$7.99

11

DAMPER, LOCATING 1

3R0-24181-00-00

$8.99

12

BAND, TANK FITTING 1

59V-24173-00-00

$18.49

13

PIPE, FUEL 1

5PG-24311-00-00

$25.99

14

CLIP (4X4)

90467-12052-00

$9.49

15

HOSE

90445-09029-00

$24.99

16

CLIP 101235600

90467-08003-00

Unavailable

17

SCREW, PAN

98507-06010-00

Unavailable

18

WASHER(6TA)

92907-06600-00

Unavailable

19

GRAPHIC SET

2SA-24240-40-00

Unavailable

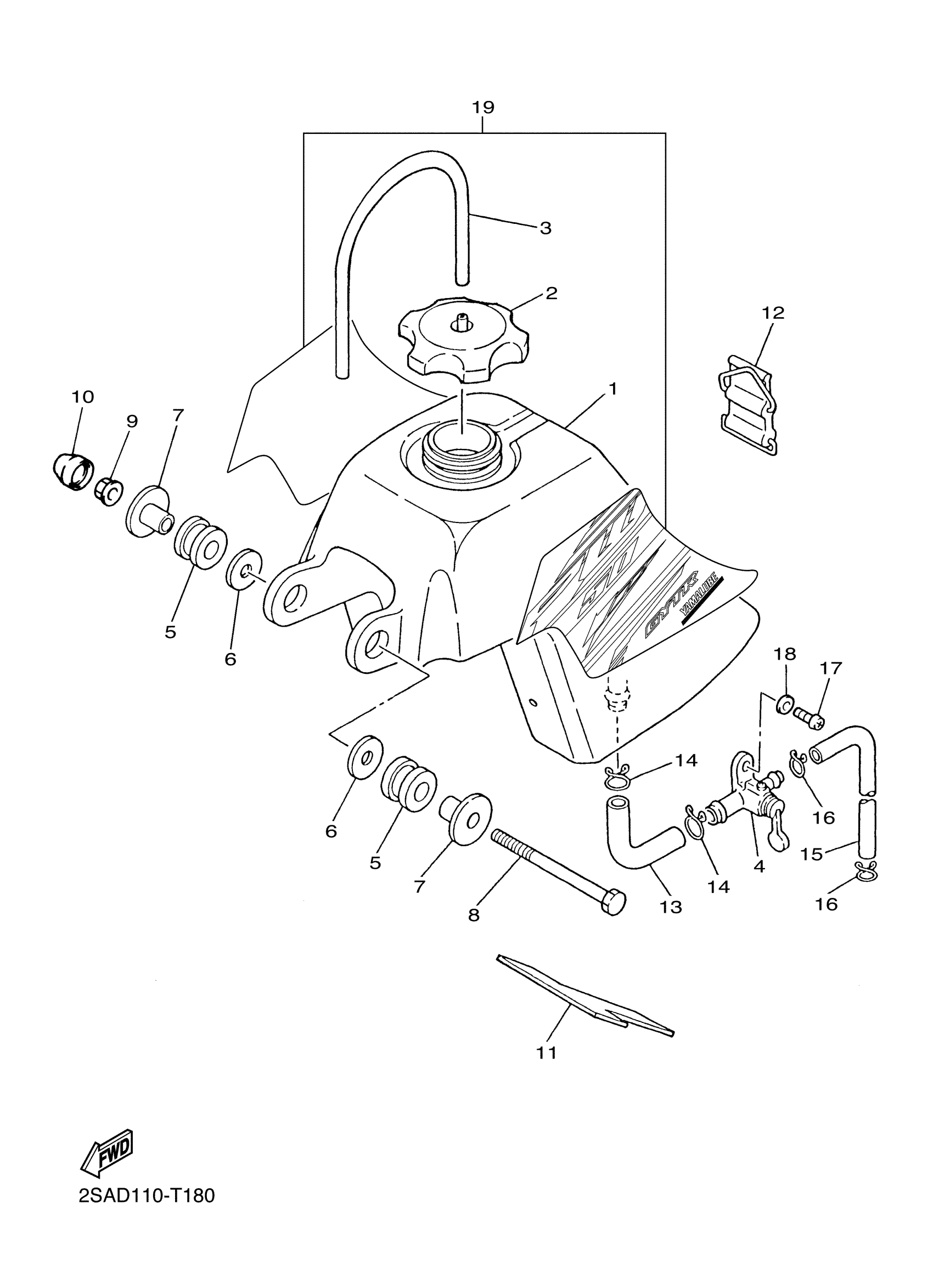

Yamaha PW50J2 (PW50) 2SAD 2018 FUEL TANK Diagram

FUEL TANK COMP.

CAP ASSY

HOSE (L420)

FUEL COCK ASSY 1

GROMMET (4V1)

WASHER, PLATE

COLLAR (10V)

BOLT(3GG)

NUT, FLANGE(4MV)

CAP

DAMPER, LOCATING 1

BAND, TANK FITTING 1

PIPE, FUEL 1

CLIP (4X4)

HOSE

CLIP 101235600

SCREW, PAN

WASHER(6TA)

GRAPHIC SET
