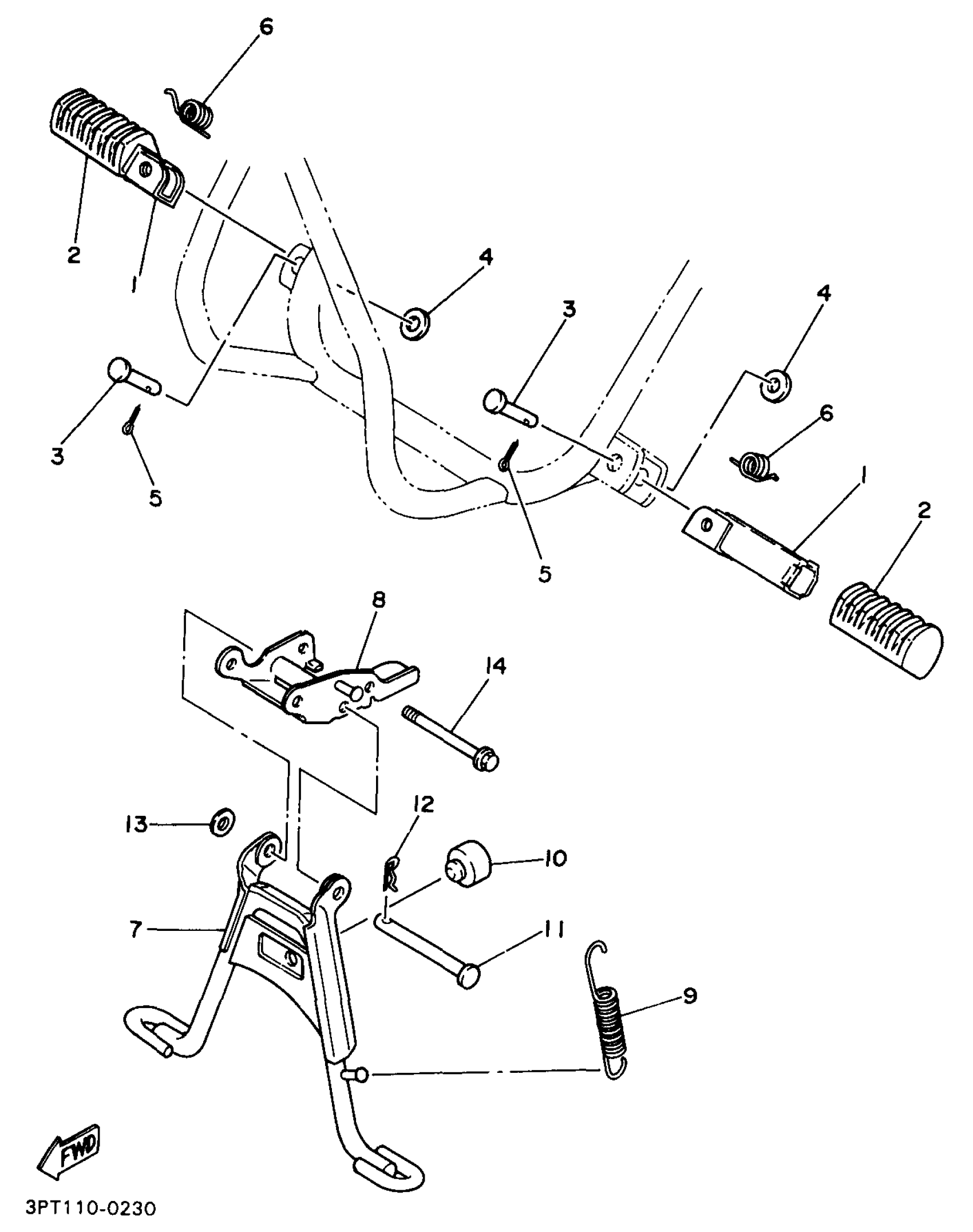

Yamaha PW50J1 (Y-ZINGER) 3PTM 1997 STAND FOOTREST Diagram

#

Description
Price

1

FOOT REST

214-27421-00-00

$29.74

2

COVER, FOOTREST

4X4-27413-00-00

$19.42

3

PIN, CLEVIS (2A6)

91701-08038-00

$3.65

4

WASHER(6TA)

92907-08600-00

$2.34

5

PIN, COTTER

91490-25020-00

$2.81

6

SPRING, TORSION (214-27426-00)

90508-20023-00

$3.05

7

STAND, MAIN

4X4-27111-00-33

$71.09

8

BRACKET, MAIN STAND

3L5-27151-02-00

$35.69

9

SPRING TENSION 146273160000

90506-29052-00

$9.15

10

STOPPER, MAIN STAND

116-27114-00-00

$9.68

11

PIN, CLEVIS(1YU)

90240-08121-00

$8.16

12

CLIP 136253750000

90468-12006-00

$4.89

13

WASHER(6TA)

92907-08600-00

$2.34

14

BOLT, WASHER BASED

90105-06809-00

$1.29
