Description

Price

1

WHEEL COMP.

5M0-25180-00-36

Unavailable

2

SPACER

90560-10173-00

$14.99

3

FLANGE, SPACER 2

2E9-25116-00-00

$7.99

4

OIL SEAL (2E9)

93106-17015-00

$11.49

5

PLATE, BRAKE SHOE

2T4-25121-00-98

Unavailable

6

OIL SEAL(2JA)

93109-34057-00

$5.60

7

BRAKE SHOE KIT

3PT-W253A-10-00

$18.49

8

SPRING, SHOE RETURN

2E9-25133-00-00

$7.99

9

PLUG, TAPER (4X4)

90336-15033-00

$7.49

10

LEVER, CAMSHAFT 1

2T4-25155-00-00

Unavailable

11

CAMSHAFT

25K-25151-00-00

Unavailable

12

BOLT(3JK)

97027-05020-00

$3.29

13

NUT, HEXAGON

95317-05600-00

$2.34

14

TIRE (INOUE 2.50-10)

94125-10650-00

Unavailable

14

TIRE(BRIDGESTONE2.50-10 4PM29)

94125-10651-00

Unavailable

15

TUBE (2.50-10)(3LL)

94225-10270-00

Unavailable

16

BEARING (3R0)

93306-20009-00

Unavailable

17

RING 1

2T4-25185-00-00

Unavailable

18

AXLE,WHEEL

99999-03089-00

Unavailable

19

COLLAR (2E9)

90387-10620-00

Unavailable

20

NUT 3532518200

90171-10004-00

Unavailable

21

PIN, COTTER

91490-20025-00

Unavailable

22

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable

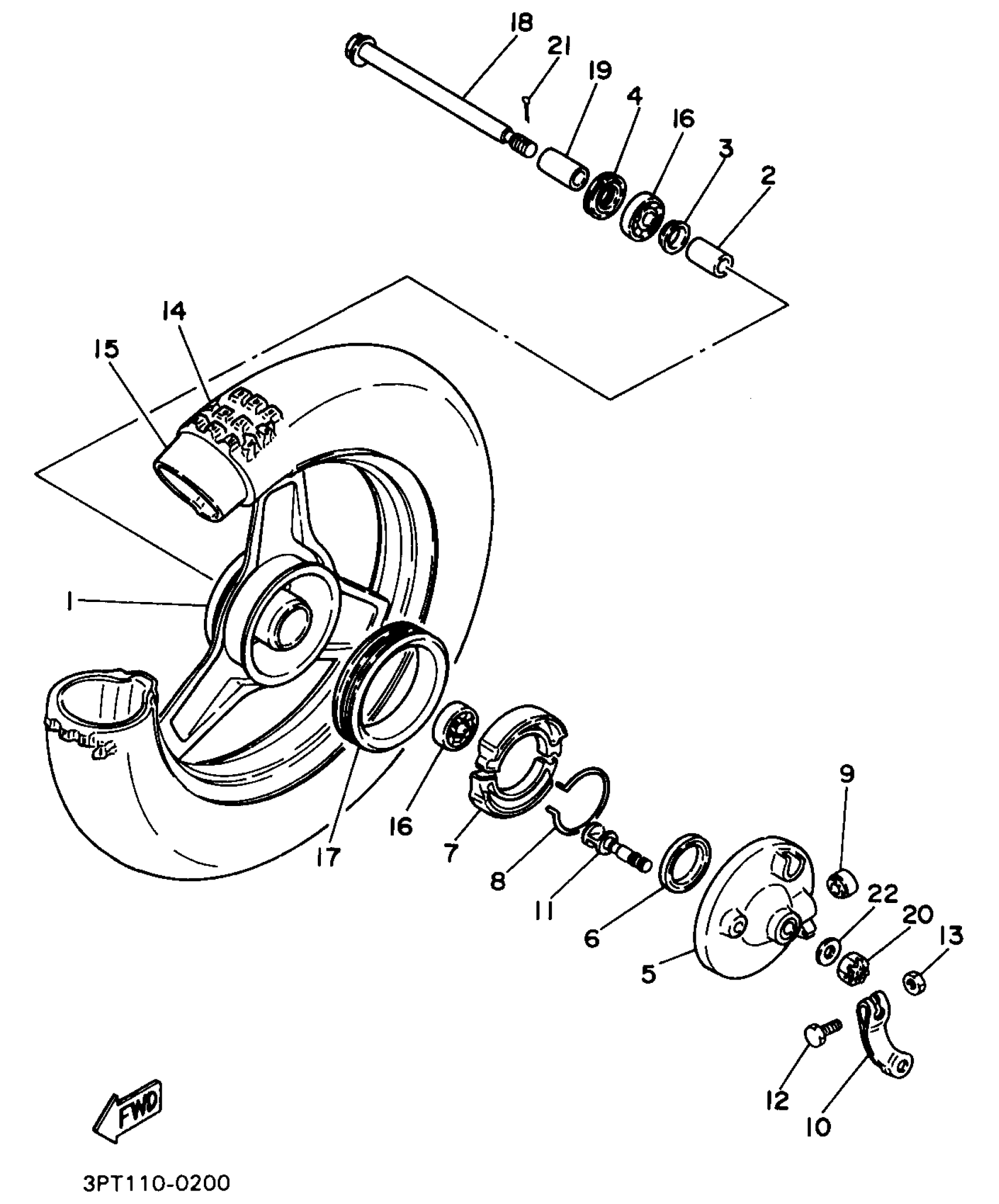

Yamaha PW50J1 (Y-ZINGER) 3PTM 1997 FRONT WHEEL Diagram

WHEEL COMP.

SPACER

FLANGE, SPACER 2

OIL SEAL (2E9)

PLATE, BRAKE SHOE

OIL SEAL(2JA)

BRAKE SHOE KIT

SPRING, SHOE RETURN

PLUG, TAPER (4X4)

LEVER, CAMSHAFT 1

CAMSHAFT

BOLT(3JK)

NUT, HEXAGON

TIRE (INOUE 2.50-10)

TIRE(BRIDGESTONE2.50-10 4PM29)

TUBE (2.50-10)(3LL)

BEARING (3R0)

RING 1

AXLE,WHEEL

COLLAR (2E9)

NUT 3532518200

PIN, COTTER

958-69527-00 WASHER, PLAIN
