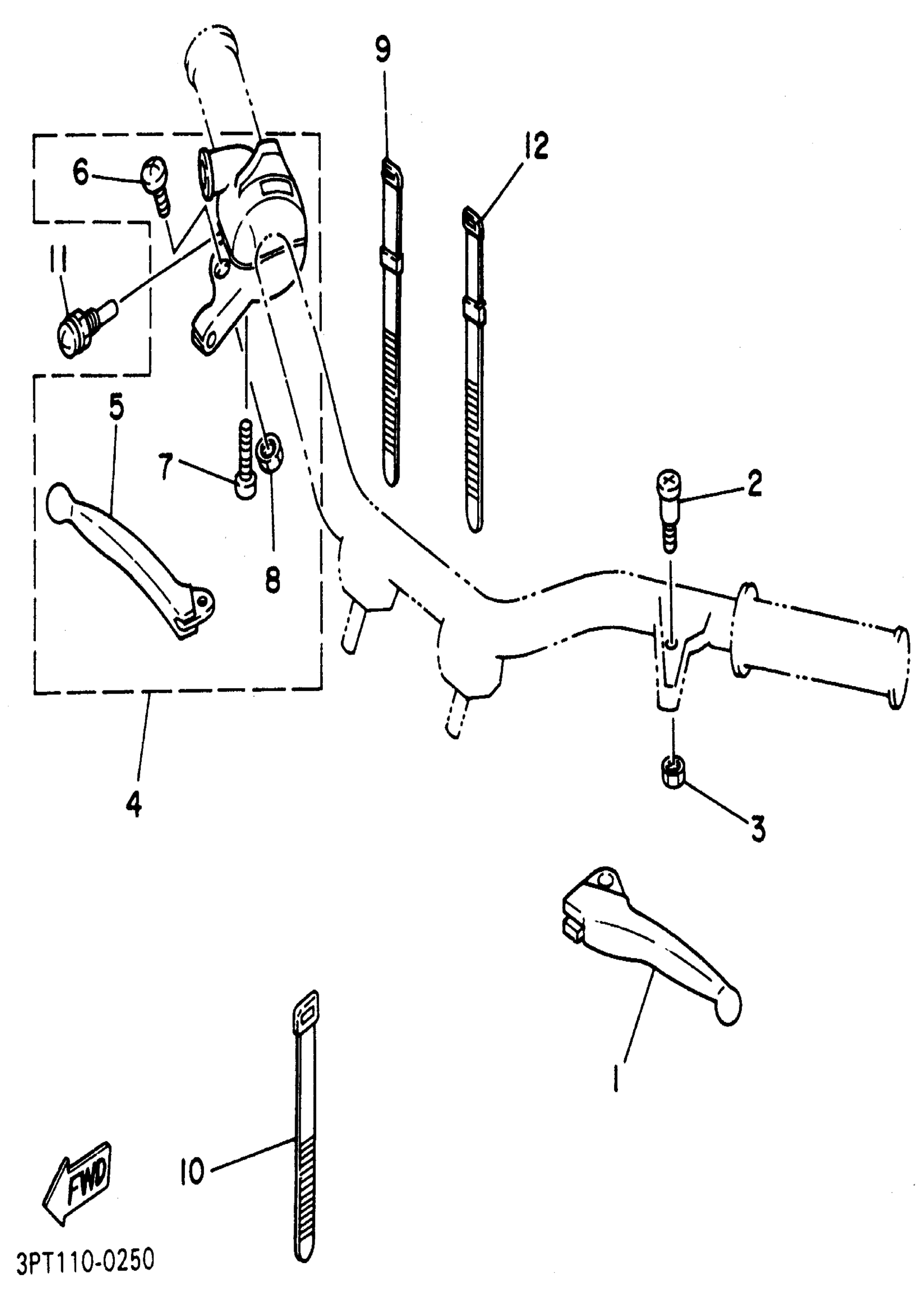

Yamaha PW50H1 (Y-ZINGER) 1996 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

LEVER 1

2T4-83912-03-00

$16.33

2

SCREW (4X4)

90149-05162-00

$5.08

3

NUT, U

95617-05100-00

$6.68

4

LEVER HOLDER ASSY (RIGHT)

4X4-82920-02-00

$96.51

5

LEVER 2

2T4-83922-03-00

$15.51

6

SCREW (2E9)

90149-05119-00

$6.91

7

SCREW, PAN HEAD(4MY)

98507-05025-00

$6.18

8

NUT, U

95617-05100-00

$6.68

9

BAND, SWITCH CORD

437-83936-01-00

$4.63

10

BAND, SWITCH CORD

437-83936-11-00

$3.20

11

STOPPER

4X4-26257-00-00

$7.21

12

BAND, SWITCH CORD

437-83936-01-00

$4.63
