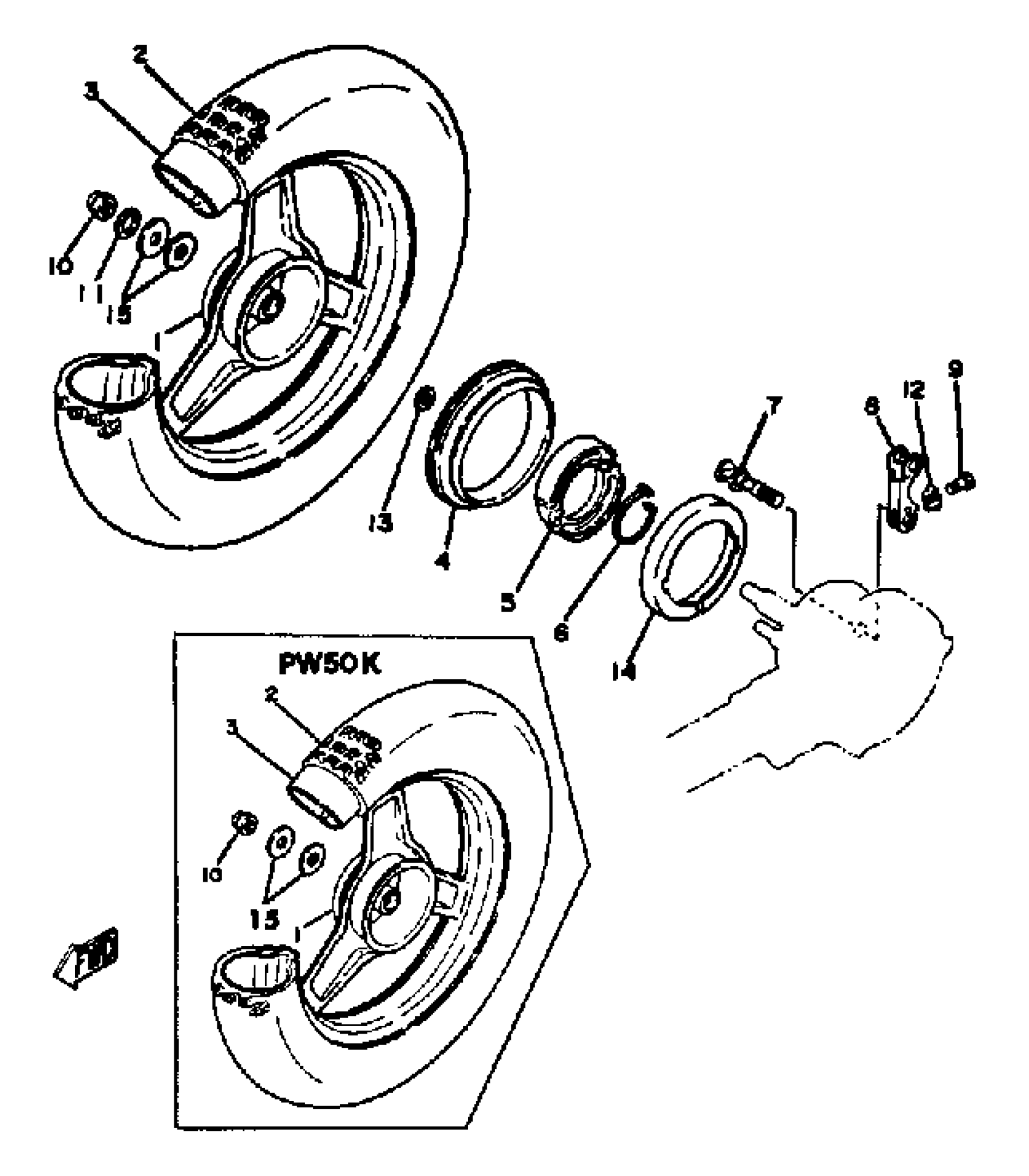

Yamaha PW50H (PW50) 1981 REAR WHEEL Diagram

WHEEL, REAR

5M0-25390-00-35

Unavailable

TIRE (INOUE 2.50-10)

94125-10650-00

Unavailable

TUBE (2.50-10)(3LL)

94225-10270-00

$28.99

RING 1

2T4-25185-00-00

$22.99

BRAKESHOE SET-2PCS

2E9-W2535-00-00

Unavailable

SPRING, SHOE RETURN

2E9-25133-00-00

$7.99

CAM SHAFT

3L5-25351-00-00

Unavailable

LEVER, CAMSHAFT REAR

3L5-25355-00-00

$31.99

BOLT (2E9)

90101-05396-00

Unavailable

NUT, SELF-LOCKING(1KH)

90185-12134-00

$12.49

WASHER, PLATE (4L0)

90201-154E8-00

$8.49

WASHER, LOCK

2E9-25412-00-00

Unavailable

WASHER, PLATE (4L0)

90201-154E8-00

$8.49

RING 2

4X4-25336-00-00

$28.99

COLLAR (4J2)

90387-125A5-00

$13.49
