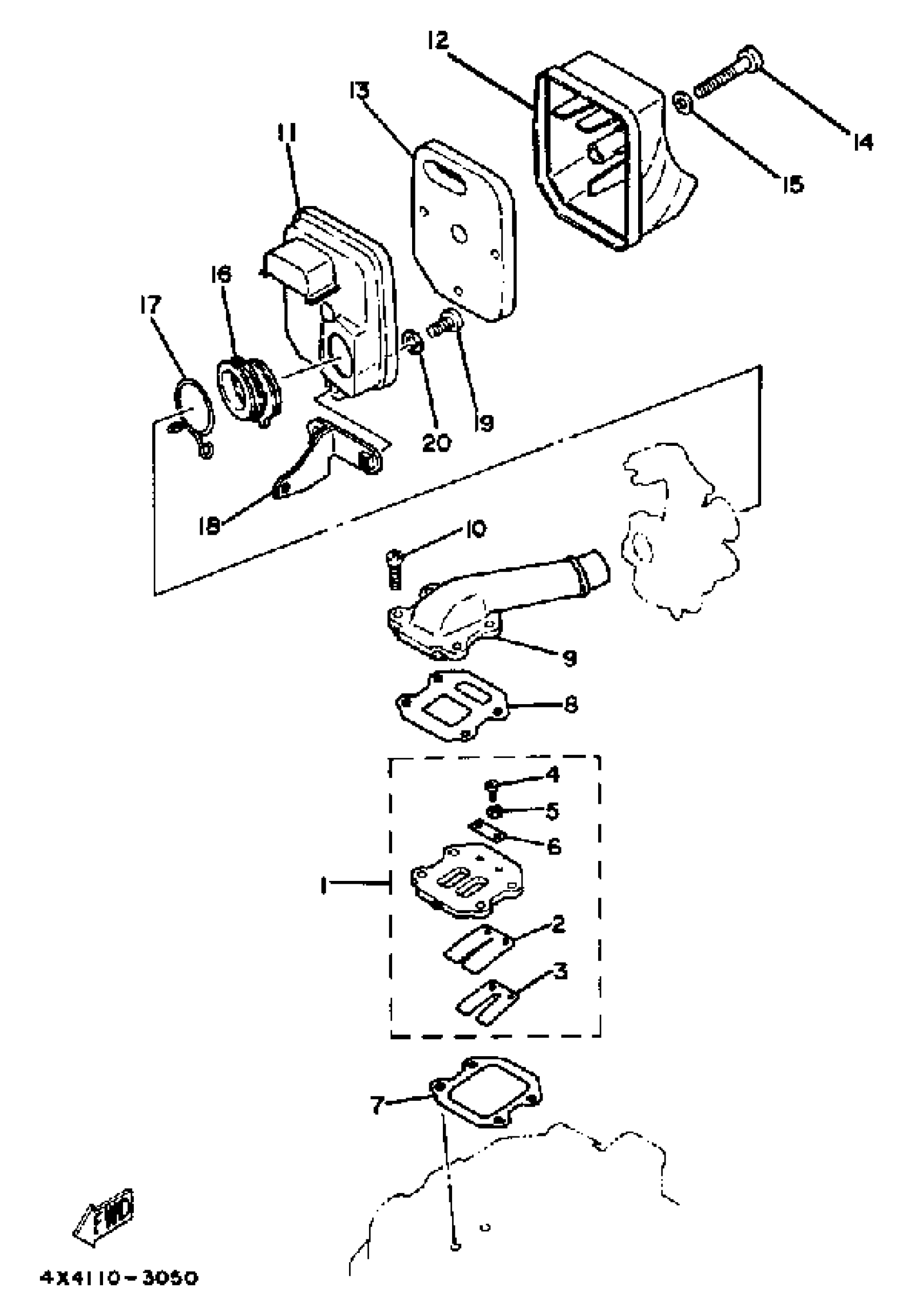

Yamaha PW50H (PW50) 1981 INTAKE Diagram

#

Description
Price

1

REED VALVE ASSY

3L5-13610-00-00

$65.94

2

REED VALVE

3L5-13613-00-00

$36.95

3

STOPPER, REED VALVE

3L5-13616-00-00

$8.65

4

SCREW PAN HEAD

98580-03010-00

$6.58

5

WASHER, SPRING

92990-03100-00

$5.75

6

PLATE, REED VALVE

3L5-13624-00-00

Unavailable

7

GASKET, VALVE SEAT

3HK-13621-00-00

$16.36

8

GASKET, VALVE SEAT

3L5-13622-10-00

$23.18

9

MANIFOLD

3L5-13555-00-00

$55.26

10

SCREW PAN HEAD

98580-06020-00

$4.89

11

CASE, AIR CLEANER 1

4X4-14411-00-00

$25.75

12

CAP, CLEANER CASE 1

4X4-14412-00-00

$20.70

13

ELEMENT, AIR CLEANER

4X4-14451-00-00

$6.66

14

SCREW PAN HEAD

98580-06545-00

$5.55

15

WASHER, PLATE (4H7)

90201-061A5-00

$5.47

16

JOINT, AIR CLEANER 1

4X4-14453-00-00

Unavailable

17

CLIP 296144550000

90467-20023-00

Unavailable

18

STAY 1

4X4-14493-01-00

Unavailable

19

SCREW, PAN

98507-06014-00

Unavailable

20

. WASHER, PLATE

90201-06050-00

Unavailable
