1981 Yamaha PW50 (PW50H) Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1981 Yamaha PW50 (PW50H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

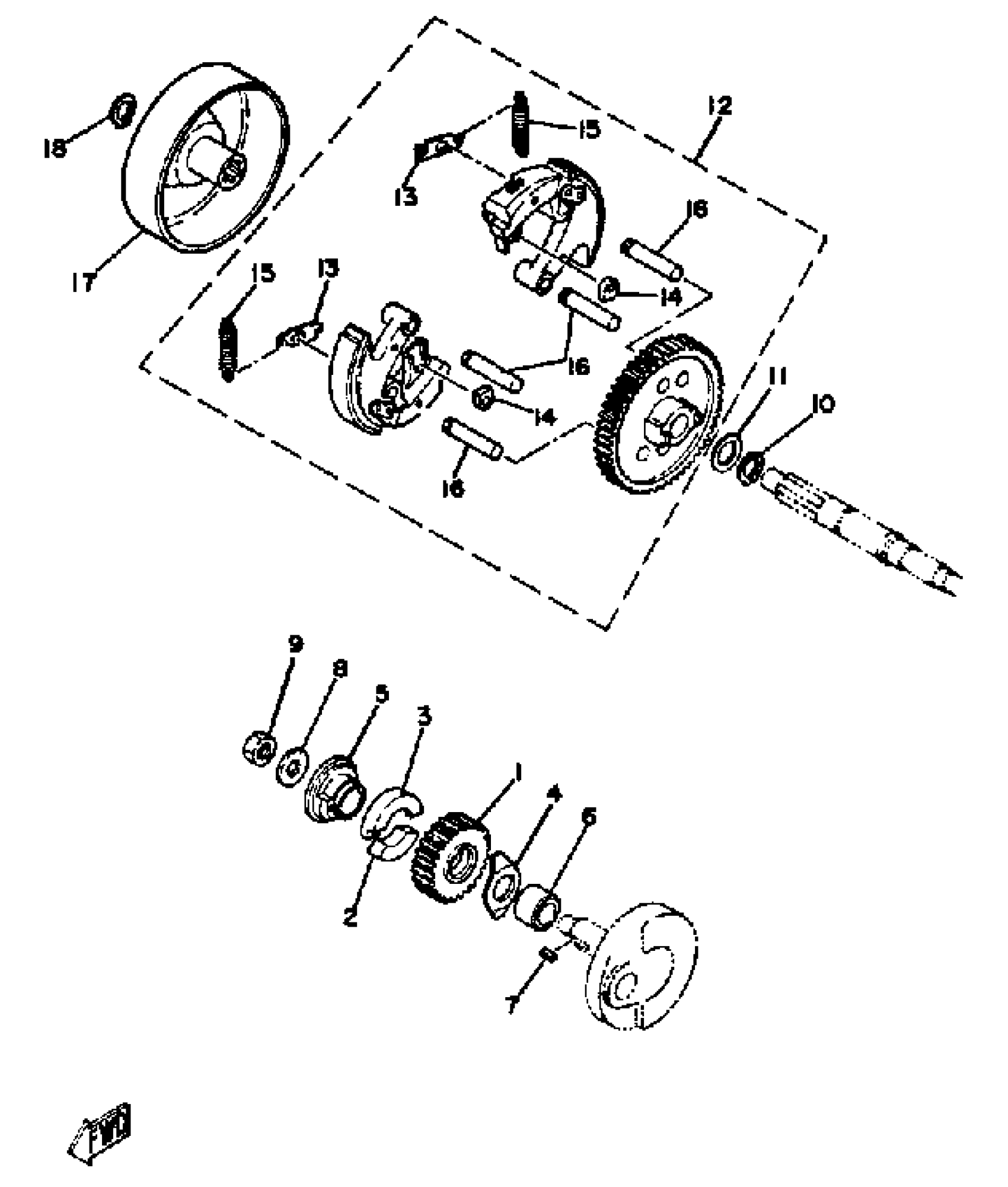

1981 Yamaha PW50 (PW50H) Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, PRIMARY DRIVE

3L5-16111-00-00

1

$118.71

In stock

2

ABSORBER

3L5-16115-00-00

1

$4.15

In stock

3

ABSORBER

3L5-16125-00-00

1

$8.46

In stock

4

PLATE

3L5-16114-00-00

1

$6.38

In stock

5

SPACER 1

3L5-16181-01-00

1

$35.78

In stock

6

COLLAR (3L5)

90387-16730-00

1

$16.43

In stock

7

KEY, STRAIGHT (3L5)

90282-05034-00

1

$8.31

In stock

8

WASHER 823214910000

90208-10012-00

1

$13.20

In stock

9

NUT, FLANGE(3BM)

95704-10500-00

1

$1.71

In stock

10

CIRCLIP(13T)

99009-16400-00

1

$5.35

In stock

11

WASHER, PLATE (384)

90201-16383-00

1

$6.71

In stock

12

CLUTCH CARRIER ASSY

3L5-16620-04-00

1
Out of stock

13

WASHER

3L5-16628-02-00

1

$9.06

In stock

14

DAMPER, CLUTCH WEIGHT

2T4-16629-01-00

1
Out of stock

15

SPRING, CLUTCH WEIGHT

3L5-16627-02-00

1

$8.65

In stock

16

. SHAFT, CLUTCH WEIGHT

36R-16633-00-00

1
Out of stock

17

CLUTCH HOUSING COMP

3L5-16611-02-00

—

$121.96

In stock

18

CIRCLIP(13T)

99009-16400-00

1

$5.35

In stock
