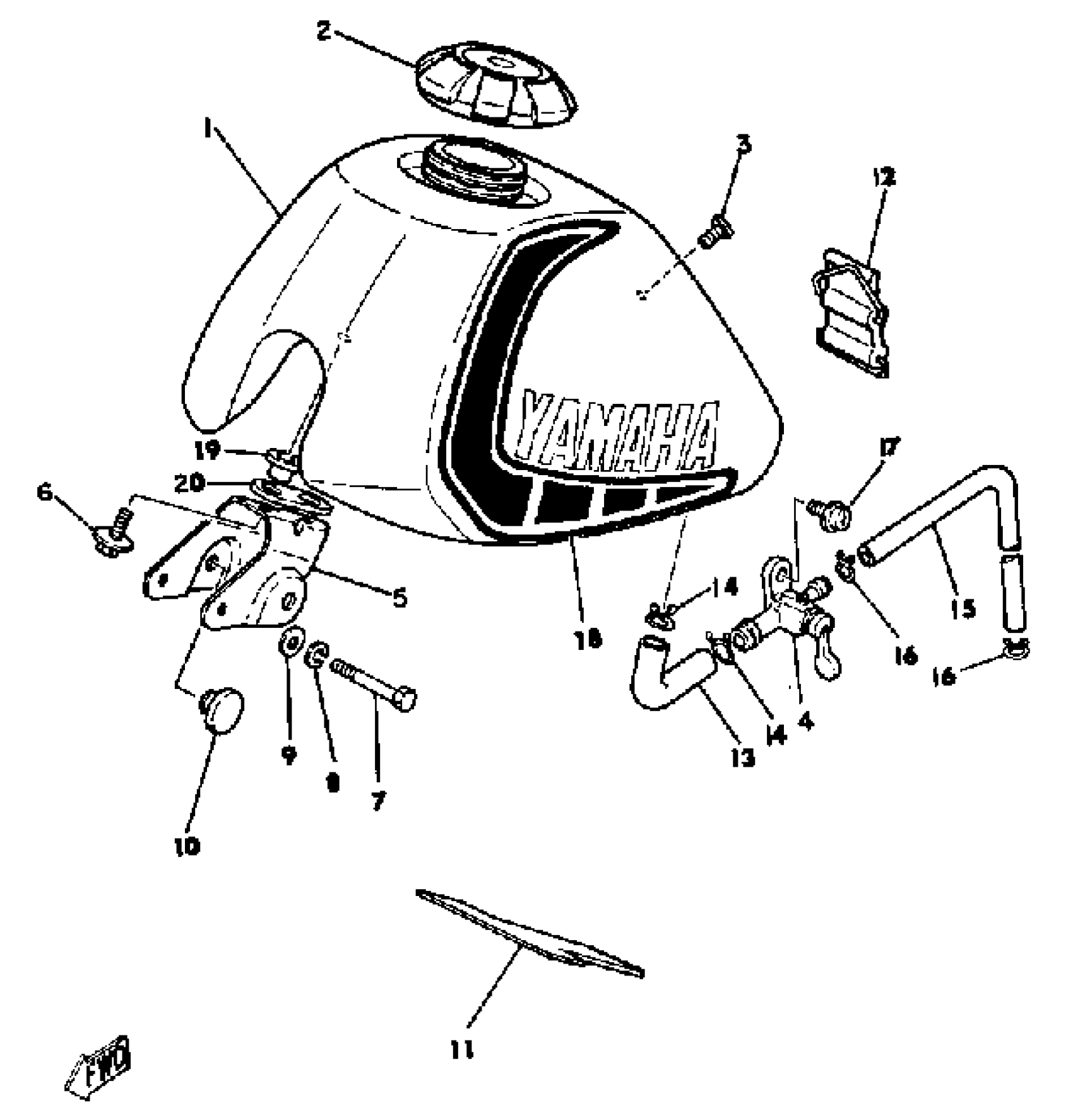

Yamaha PW50H (PW50) 1981 FUEL TANK Diagram

FUEL TANK

4X4-24110-00-00

Unavailable

CAP ASSY

4X4-24610-00-00

$57.99

SCREW, BIND (705)

98980-06016-00

$8.49

FUEL COCK ASSY 1

4X4-24500-11-00

$29.99

BRACKET, FUEL TNK 1

4X4-24191-00-00

Unavailable

BOLT, WITH WASHER

90119-06242-00

$7.49

BOLT, HEXAGON

97017-06045-00

$3.76

WASHER, SPRING

92907-06100-00

$4.25

WASHER(6TA)

92907-06600-00

$2.72

DAMPER, LOCATING 1

22W-24181-00-00

$6.99

DAMPER, LOCATING 1

3R0-24181-00-00

$8.99

BAND, TANK FITTING 1

59V-24173-00-00

$18.49

PIPE, FUEL 1

4X4-24311-00-00

Unavailable

CLIP (4X4)

90467-12052-00

$9.49

HOSE (L420)

90445-092K1-00

$12.49

CLIP 101235600

90467-08003-00

Unavailable

SCREW, WITH WASHER (517).

90159-06013-00

Unavailable

GRAPHIC SET

(4X4-24240-09-00)

Unavailable

GRAPHIC SET

(4X4-24240-29-00)

Unavailable

COLLAR (3Y2)

90387-07789-00

Unavailable

DAMPER, LOCATING 2

4X4-24182-00-00

Unavailable
