1981 Yamaha PW50 (PW50H) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1981 Yamaha PW50 (PW50H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

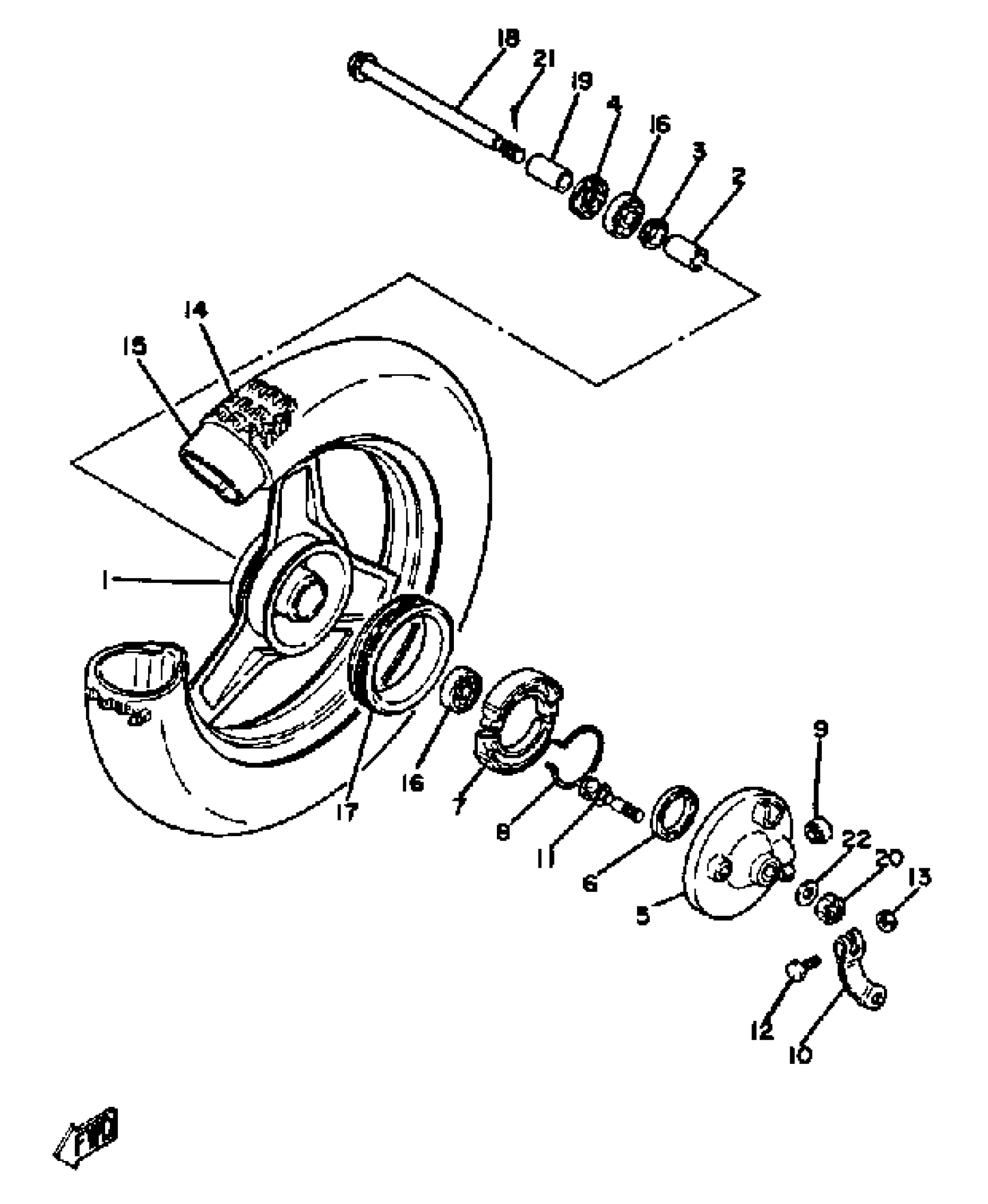

1981 Yamaha PW50 (PW50H) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WHEEL,FRONT

25K-25180-00-35

1
Out of stock

2

SPACER

90560-10173-00

1

$11.78

In stock

3

FLANGE, SPACER 2

2E9-25116-00-00

1

$6.38

In stock

4

OIL SEAL (2E9)

93106-17015-00

1

$9.71

In stock

5

PLATE, BRAKE SHOE

(2T4-25121-00-35)

1
Out of stock

6

OIL SEAL(2JA)

93109-34057-00

1

$4.20

In stock

7

BRAKESHOE SET-2PCS

2E9-W2535-00-00

1
Out of stock

8

SPRING, SHOE RETURN

2E9-25133-00-00

1

$7.34

In stock

9

PLUG, TAPER (4X4)

90336-15033-00

1

$6.09

In stock

10

LEVER, CAMSHAFT 1

2T4-25155-00-00

—

$24.52

In stock

11

CAMSHAFT

25K-25151-00-00

1
Out of stock

12

BOLT(3JK)

97027-05020-00

1

$2.48

In stock

13

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

14

TIRE (INOUE 2.50-10)

94125-10650-00

1

$49.92

In stock

15

TUBE (2.50-10)(3LL)

94225-10270-00

1

$24.63

In stock

16

BEARING (3R0)

93306-20009-00

—

$38.79

In stock

16

BEARING (3R0)

93306-20009-00

—

$38.79

In stock

17

RING 1

2T4-25185-00-00

—

$19.43

In stock

18

AXLE,WHEEL

99999-03089-00

1
Out of stock

19

COLLAR (2E9)

90387-10620-00

—
Out of stock

20

NUT 3532518200

90171-10004-00

—

$5.32

In stock

21

PIN, COTTER

91490-20025-00

—

$1.31

In stock

22

—

$3.00

In stock
