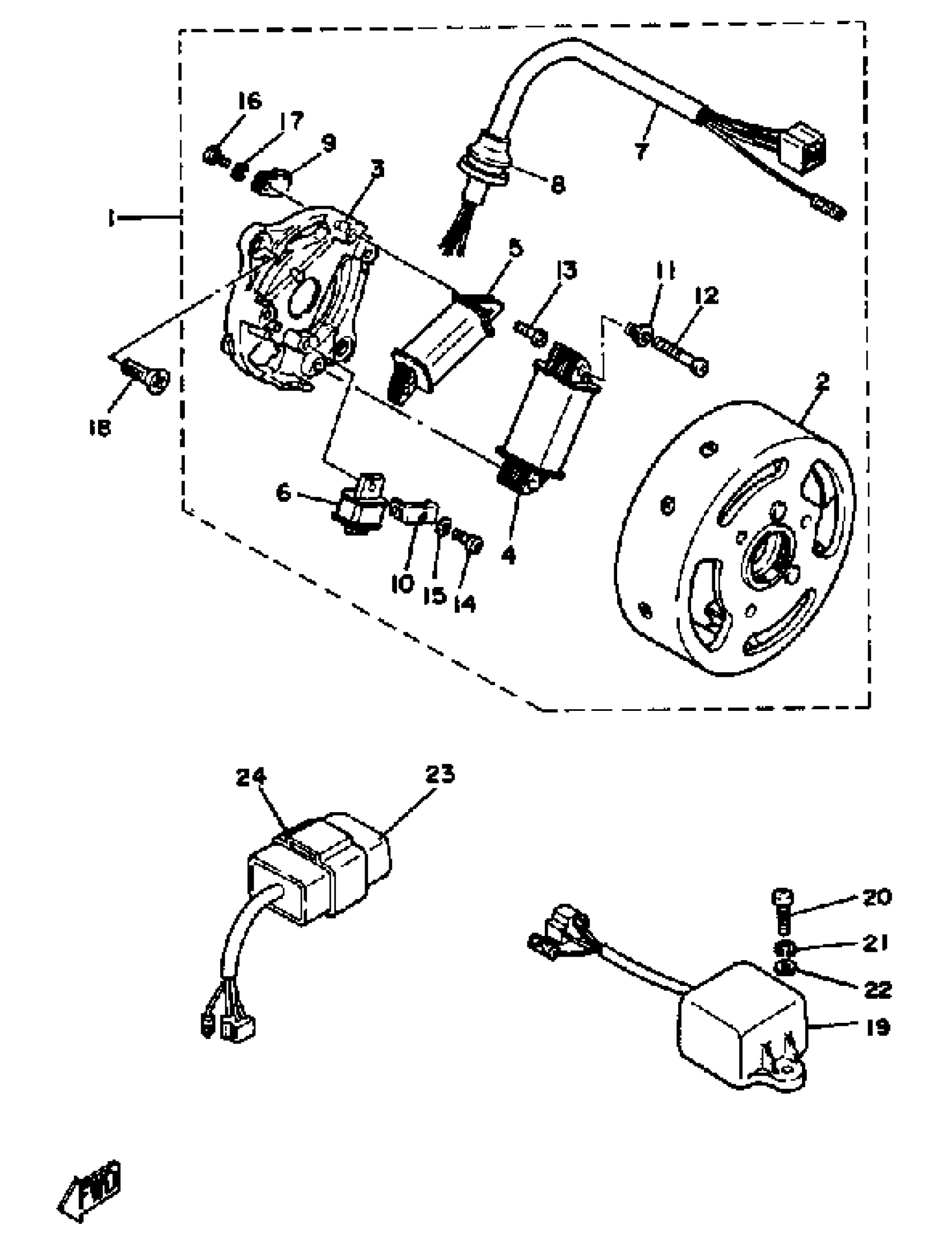

Yamaha PW50H (PW50) 1981 C - D - I - MAGNETO PW50H Diagram

#

Description
Price

1

CDI MAGNETO ASSEMBLYASSY

4X4-85500-M0-00

Unavailable

2

ROTOR ASSY

3L6-85550-M1-00

Unavailable

3

BASE, MAGNETO

3L5-85561-M1-00

Unavailable

4

COIL, LIGHTING 1

4X4-81313-M0-00

Unavailable

5

COIL, CHARGE

4Y4-85520-M1-00

Unavailable

6

PULSER ASSY

3L5-85580-M0-00

$70.99

7

. CORD ASSEMBLY

4X4-8131X-M0-00

Unavailable

8

. GROMMET

3L5-85564-M0-00

Unavailable

9

CLAMP (2T4)

90461-05036-00

Unavailable

10

TERMINAL, EARTH 1

2T4-85568-M1-00

Unavailable

11

TERMINAL, EARTH 2

2T4-85569-M1-00

Unavailable

12

SCREW, PAN HEAD

98507-04018-00

$2.19

13

SCREW, PAN HEAD

98511-04012-00

Unavailable

14

SCREW, PAN HEAD (E56)

98580-04010-00

$8.49

15

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

16

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

17

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

18

SCREW, FLAT

98707-06014-00

Unavailable

19

CDI UNIT ASSY

3L4-85540-M1-00

Unavailable

20

SCREW, PAN

98507-06014-00

Unavailable

21

WASHER, SPRING

92995-06100-00

Unavailable

22

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

23

CONTROL UNIT ASSEMBLY

4X4-85590-M0-00

Unavailable

24

BAND

4J2-85546-00-00

Unavailable
