Description

Price

1

GEAR, PRIMARY DRIVE

3L5-16111-00-00

$127.99

2

ABSORBER

3L5-16115-00-00

$5.49

3

ABSORBER

3L5-16125-00-00

$8.99

4

PLATE

3L5-16114-00-00

$6.99

5

SPACER 1

3L5-16181-01-00

$39.99

6

COLLAR (3L5)

90387-16730-00

$18.99

7

KEY, STRAIGHT (3L5)

90282-05034-00

$9.49

8

WASHER, CONICAL SP

90208-10003-00

Unavailable

9

NUT

90170-10206-00

$5.60

10

CIRCLIP(13T)

99009-16400-00

$5.60

11

WASHER, PLATE (384)

90201-16383-00

$8.49

12

CLUTCH CARRIER ASSY

3L5-16620-04-00

$126.99

13

WASHER

3L5-16628-02-00

$9.99

14

DAMPER, CLUTCH WEIGHT

2T4-16629-01-00

$2.34

15

SPRING, CLUTCH WEIGHT

3L5-16627-02-00

$9.99

16

. SHAFT, CLUTCH WEIGHT

36R-16633-00-00

Unavailable

17

CLUTCH HOUSING COMP

3L5-16611-02-00

Unavailable

18

CIRCLIP(13T)

99009-16400-00

$5.60

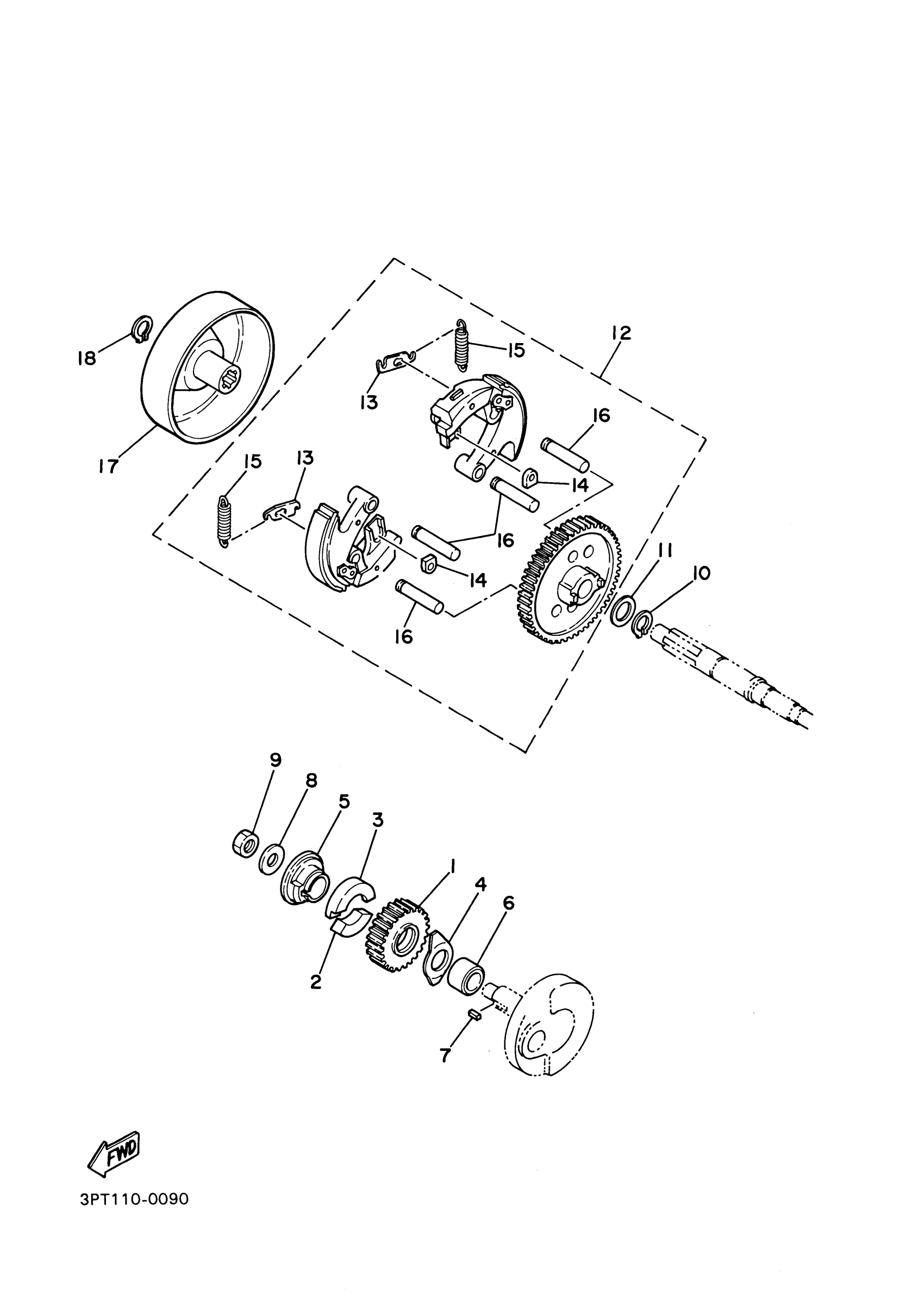

Yamaha PW50F1 (PW50) 2SA4 2015 CLUTCH Diagram

GEAR, PRIMARY DRIVE

ABSORBER

ABSORBER

PLATE

SPACER 1

COLLAR (3L5)

KEY, STRAIGHT (3L5)

WASHER, CONICAL SP

NUT

CIRCLIP(13T)

WASHER, PLATE (384)

CLUTCH CARRIER ASSY

WASHER

DAMPER, CLUTCH WEIGHT

SPRING, CLUTCH WEIGHT

. SHAFT, CLUTCH WEIGHT

CLUTCH HOUSING COMP

CIRCLIP(13T)
