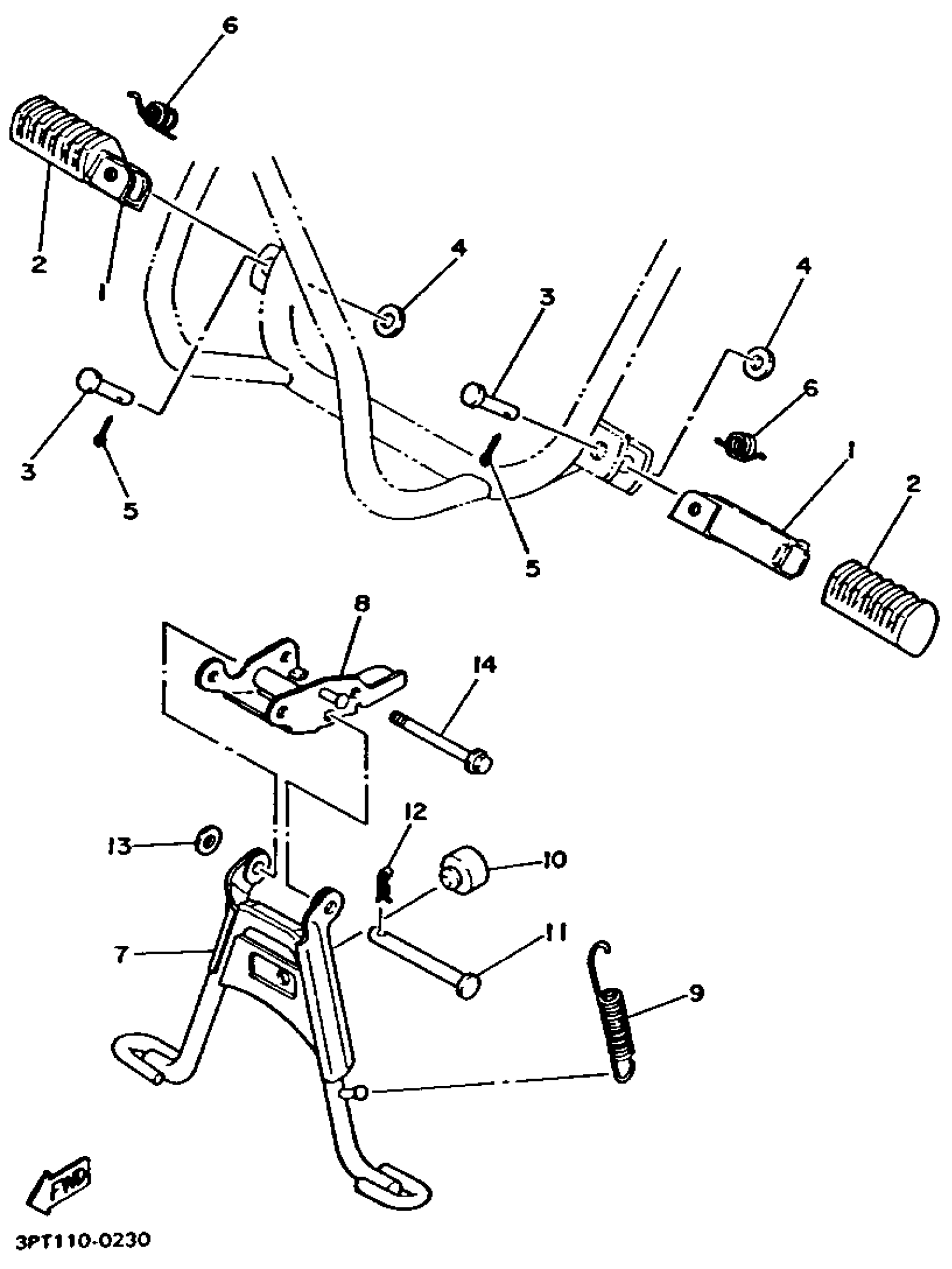

Yamaha PW50F (Y-ZINGER) 1994 STAND - FOOTREST Diagram

FOOT REST

214-27421-00-00

$37.99

COVER, FOOTREST

4X4-27413-00-00

$23.99

PIN, CLEVIS (2A6)

91701-08038-00

$4.14

.. WASHER, PLATE

92990-08600-00

Unavailable

PIN, COTTER

91490-25020-00

$3.19

SPRING, TORSION (214-27426-00)

90508-20023-00

$8.49

STAND, MAIN

4X4-27111-00-33

$80.99

BRACKET, MAIN STAND

3L5-27151-02-00

$41.99

SPRING TENSION 146273160000

90506-29052-00

$11.49

STOPPER, MAIN STAND

116-27114-00-00

$10.99

PIN, CLEVIS(1YU)

90240-08121-00

$9.49

CLIP 136253750000

90468-12006-00

$8.49

.. WASHER, PLATE

92990-08600-00

Unavailable

BOLT, WASHER BASED

90105-06809-00

$2.17
