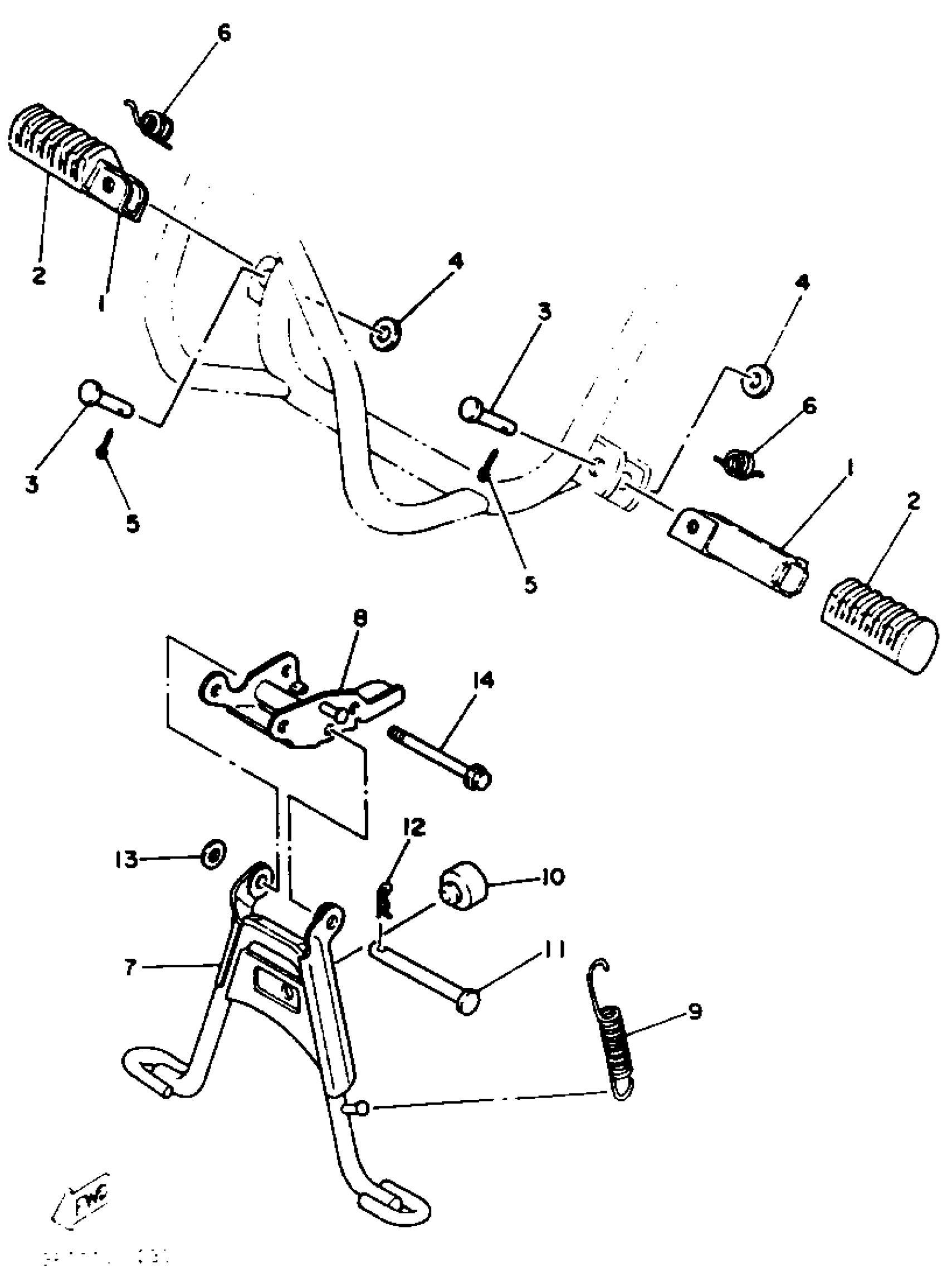

Yamaha PW50E (Y-ZINGER) 1993 STAND - FOOTREST Diagram

FOOT REST

214-27421-00-00

$29.74

COVER, FOOTREST

4X4-27413-00-00

$19.42

PIN, CLEVIS (2A6)

91701-08038-00

$3.65

.. WASHER, PLATE

92990-08600-00

$2.41

PIN, COTTER

91490-25020-00

$2.73

SPRING, TORSION (214-27426-00)

90508-20023-00

$3.05

STAND, MAIN

4X4-27111-00-33

$72.15

BRACKET, MAIN STAND

3L5-27151-02-00

$36.22

SPRING TENSION 146273160000

90506-29052-00

$9.15

STOPPER, MAIN STAND

116-27114-00-00

$9.68

PIN, CLEVIS(1YU)

90240-08121-00

$8.28

CLIP 136253750000

90468-12006-00

$4.89

.. WASHER, PLATE

92990-08600-00

$2.41

BOLT, WASHER BASED

90105-06809-00

Unavailable
