Description

Price

1

REAR ARM COMP.

3L7-22110-00-98

Unavailable

2

BOLT, HEXAGON (3L6)

90101-08461-00

$5.60

3

BOLT(4EW)

90106-08051-00

Unavailable

4

WASHER(JN5)

92907-08100-00

$8.49

5

REAR ARM COMP.

4X4-22110-10-00

Unavailable

6

END 1

4J2-22174-01-00

$42.99

7

BEARING(82M)

93306-20117-00

$34.99

8

OIL SEAL (4J2)

93106-24018-00

$11.49

9

BOLT WASHER BASED (1J7)

90105-08066-00

Unavailable

10

NUT, FLANGE(JN5)

95707-08500-00

$3.13

11

WASHER (853)

90201-08326-00

$8.49

12

BUSHING, REAR CUSHION

164-22216-00-00

$13.49

13

LABEL, TIRE

3RV-21668-A1-00

$4.47

14

SHOCK ABSORBER ASSY, REAR

3PT-22210-10-00

Unavailable

15

BOLT, HEXAGON

97017-06016-00

$8.49

16

WASHER, SPRING

92907-06100-00

Unavailable

17

WASHER, PLATE (4N0)

90201-126A7-00

Unavailable

18

WASHER, PLATE (4X4)

90201-067A0-00

Unavailable

19

BOLT, FLANGE

90105-08121-00

Unavailable

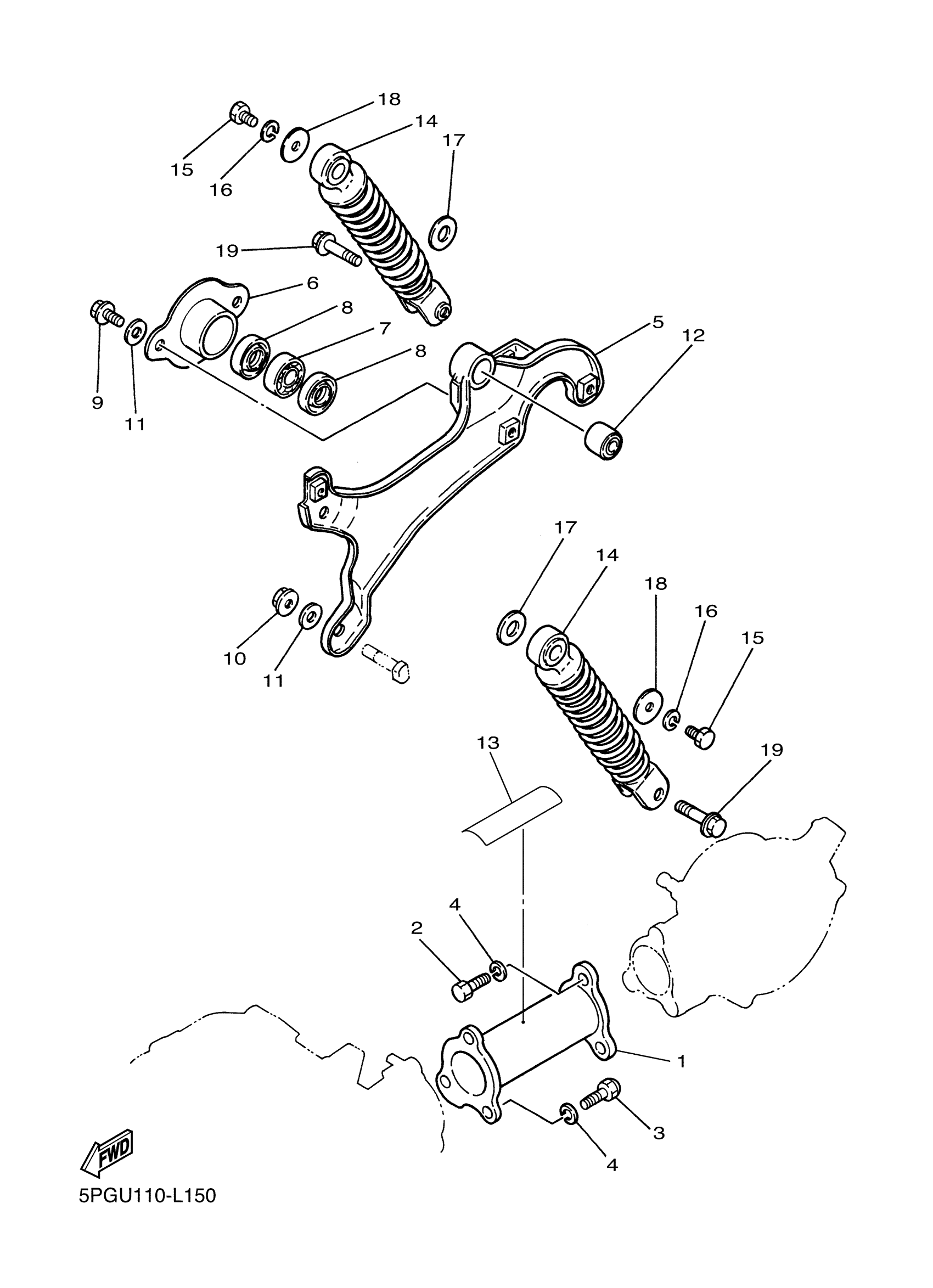

Yamaha PW50B1 (PW50) 5PGU 2012 REAR ARM SUSPENSION Diagram

REAR ARM COMP.

BOLT, HEXAGON (3L6)

BOLT(4EW)

WASHER(JN5)

REAR ARM COMP.

END 1

BEARING(82M)

OIL SEAL (4J2)

BOLT WASHER BASED (1J7)

NUT, FLANGE(JN5)

WASHER (853)

BUSHING, REAR CUSHION

LABEL, TIRE

SHOCK ABSORBER ASSY, REAR

BOLT, HEXAGON

WASHER, SPRING

WASHER, PLATE (4N0)

WASHER, PLATE (4X4)

BOLT, FLANGE
