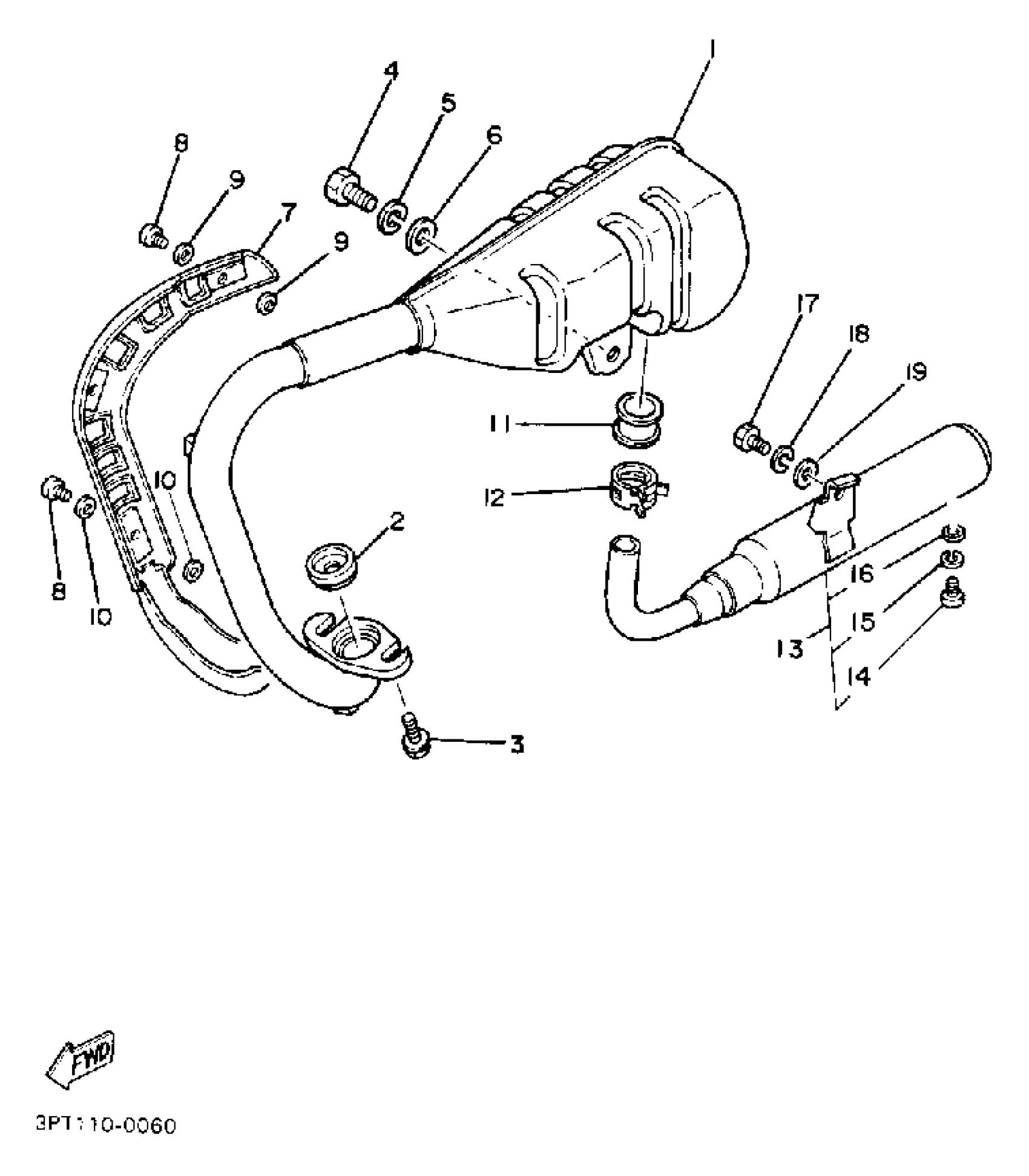

Yamaha PW50B (Y-ZINGER) 1991 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASS'Y

4X4-14610-01-00

$166.72

2

GASKET, EXHAUST PIPE

4X4-14623-11-00

Unavailable

3

SCREW, HEXAGON(1YU)

90153-06061-00

$5.76

4

BOLT, HEXAGON

97013-08020-00

$1.43

5

WASHER, SPRING

92995-06100-00

$2.95

6

WASHER, PLAIN (646)

92990-06600-00

$1.84

7

PROTECTOR ASSY

4X4-14708-00-00

$53.34

8

SCREW,PANHEAD (EG9)

98580-05006-00

Unavailable

9

WASHER, PLATE(4DN)

90202-04214-00

$5.75

10

WASHER, PROTECTOR

3RV-14766-00-00

$5.37

11

GASKET, MUFFLER

4X4-14714-00-00

$4.40

12

CLIP (4X4)

90467-22048-00

$5.75

13

SILENCER ASSY

4X4-14750-00-00

$151.15

14

SCREW, PAN HEAD(6A3)

97885-06008-00

$1.07

15

WASHER, SPRING

92995-06100-00

$2.95

16

WASHER, PLAIN (646)

92990-06600-00

$1.84

17

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

18

WASHER, SPRING

92995-06100-00

$2.95

19

WASHER, PLAIN (646)

92990-06600-00

$1.84
