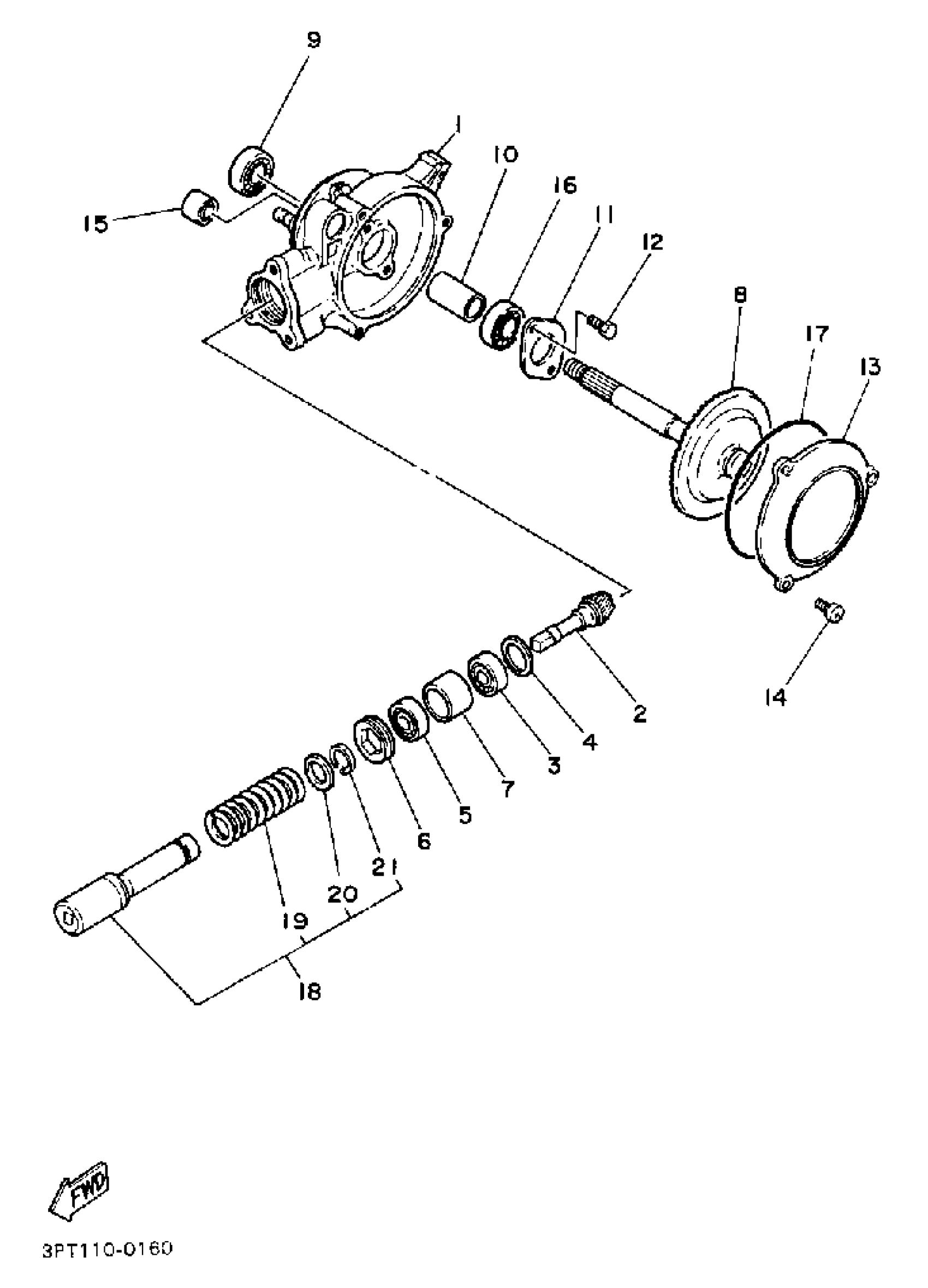

Yamaha PW50B (Y-ZINGER) 1991 DRIVE SHAFT Diagram

#

Description
Price

1

HOUSING, DRIVE SHAFT

4J2-46151-02-00

Unavailable

2

GEAR, DRIVE PINION

59M-46121-00-00

Unavailable

3

BEARING(3WF)

93306-20119-00

$33.99

4

SHIM, DRIVE PINION

3L5-46127-00-00

$6.99

5

BEARING(3WF)

93306-20119-00

$33.99

5

BEARING(3WF)

93306-20119-00

$33.99

6

SCREW (3L5)

90149-35133-00

$12.49

7

SPACER (3L5)

90560-25185-00

$7.49

8

RING GEAR COMP.

4J2-46110-01-00

$278.99

9

BEARING(3DL)

93306-20226-00

$38.99

10

SPACER

90560-15315-00

$18.99

11

PLATE, COVER

3L5-46114-00-00

Unavailable

12

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

13

COVER, HOUSING

4J2-46154-02-00

$49.99

14

SCREW, PAN HEAD(3TJ)

98507-06016-00

$3.48

15

BUSHING, REAR CUSHION

164-22216-00-00

Unavailable

16

BEARING

93306-20205-00

Unavailable

17

O-RING

93211-066A9-00

Unavailable

18

SHAFT DRIVE ASSY

3L7-46171-00-00

Unavailable

19

SPRING, COMPRESSION (3L5)

90501-60556-00

Unavailable

20

RETAINER, SPRING

15L-18473-00-00

Unavailable

21

CIRCLIP(18U)

93440-17138-00

Unavailable
